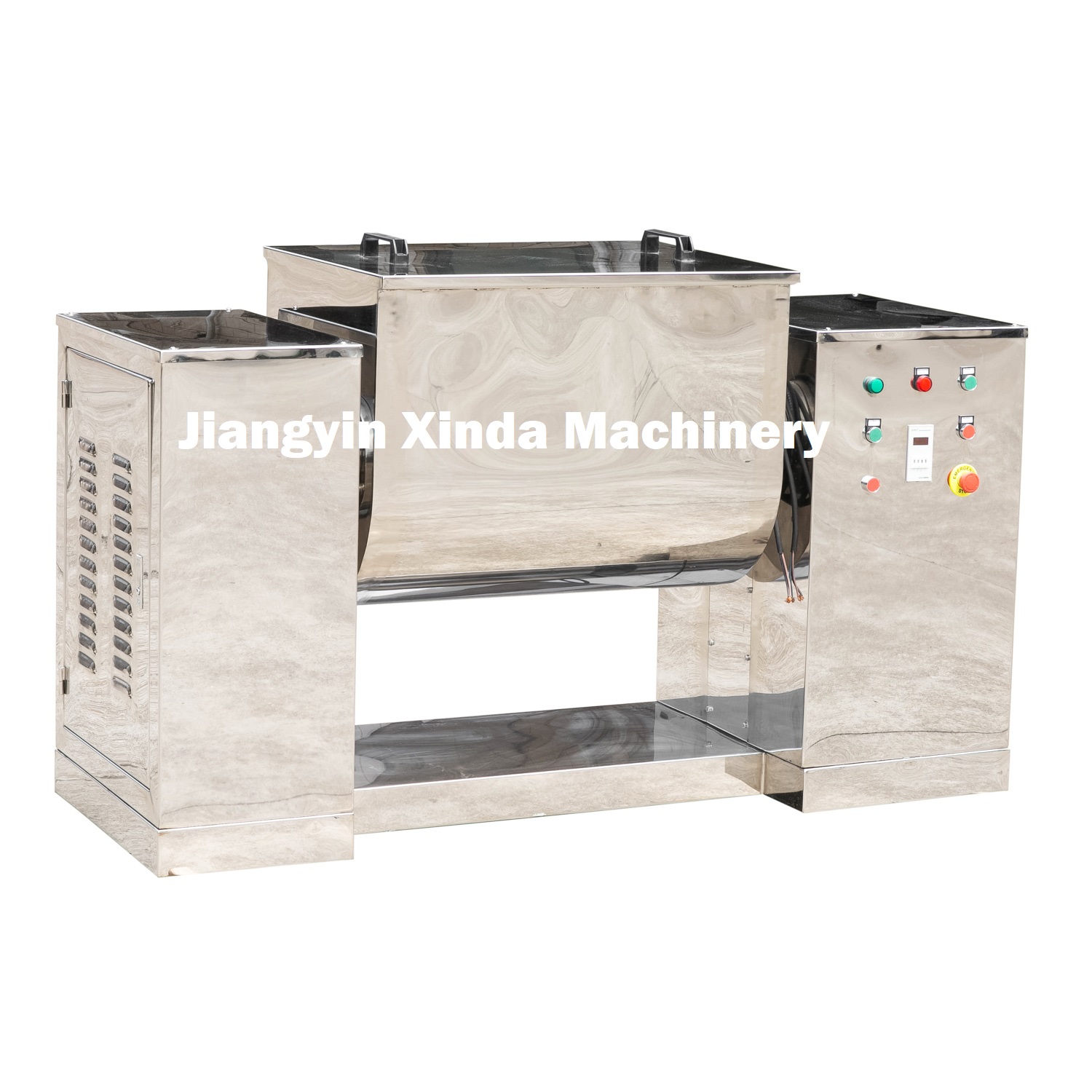

Stainless Steel Trough Mixer
This stainless steel trough mixer is designed for mixing powders and granules in industries like pharmaceuticals, food, and chemicals. It features a U-shaped trough and a rotating mixing blade to ensure thorough and homogeneous mixing.
Technical Specifications
Product Overview
Industrial Trough Mixer
This stainless steel horizontal mixer is designed for the efficient, homogeneous blending of materials in powder or paste states. It is engineered for rigorous use in the pharmaceutical, chemical, and foodstuff industries, utilizing an S-shaped paddle mechanism to ensure uniform results. The unit features precise electric timing controls that allow for automatic shut-off to optimize production consistency.
Key Features
Control Features
- Automatic timing control
- Automatic stop mechanism
- Electric mixing time setting
- Industry Applications
- PharmaceuticalChemicalFoodstuff
Performance Metrics
Operating Specifications
24 r/min
Mixing Speed
105 °
Stir Angle
Technical Specifications
Model Range Data
| Model | Volume (L) | Mixing Power (kW) | Weight (kg) |
|---|---|---|---|
| CH-50 | 50 | 1.5 | 280 |
| CH-100 | 100 | 2.2 | 350 |
| CH-150 | 150 | 3 | 410 |
| CH-200 | 200 | 4 | 450 |
| CH-300 | 300 | 5.5 | 520 |
| CH-400 | 400 | 5.5 | 580 |
| CH-500 | 500 | 7.5 | 680 |
| CH-600 | 600 | 11 | 750 |
