Technical Specifications
Overview

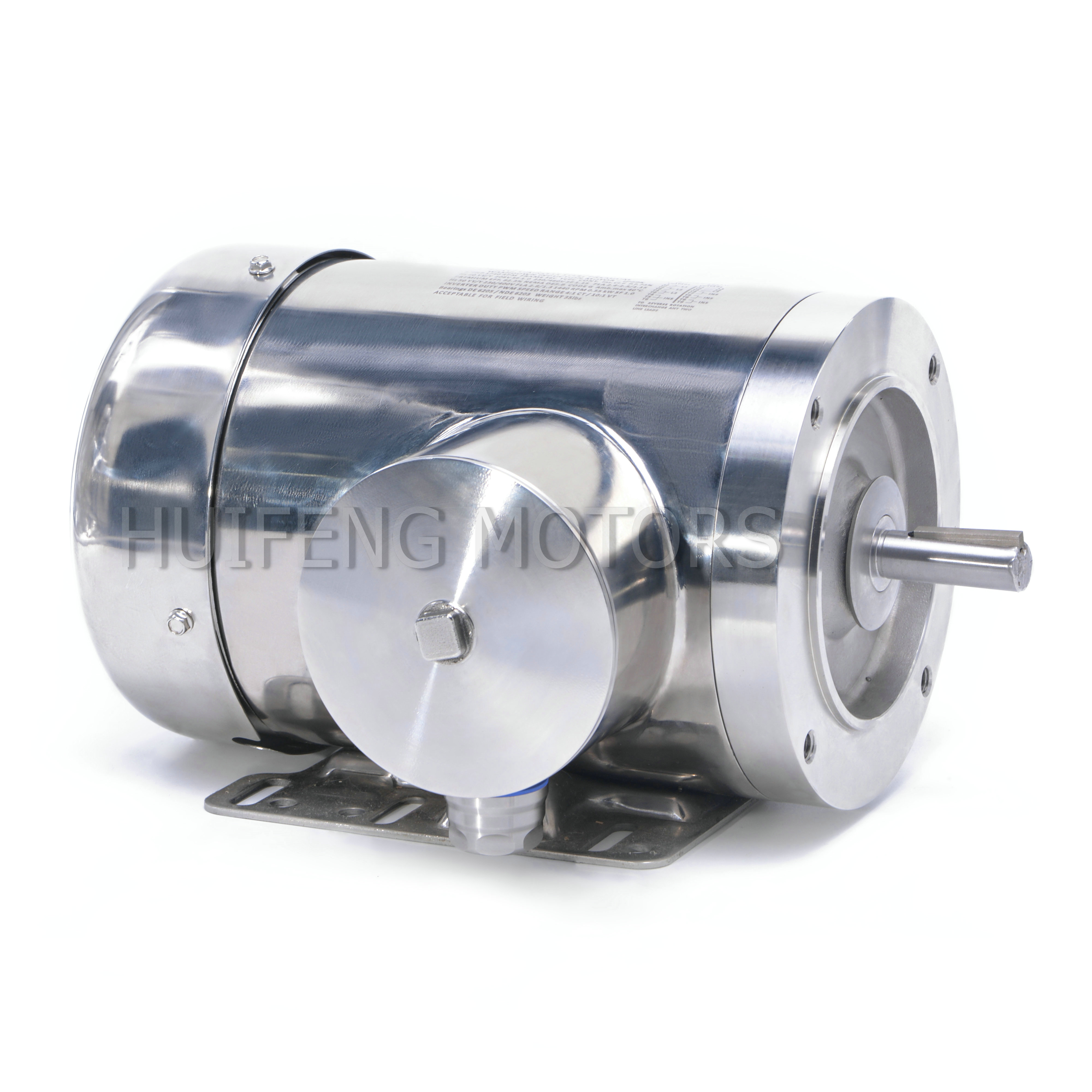

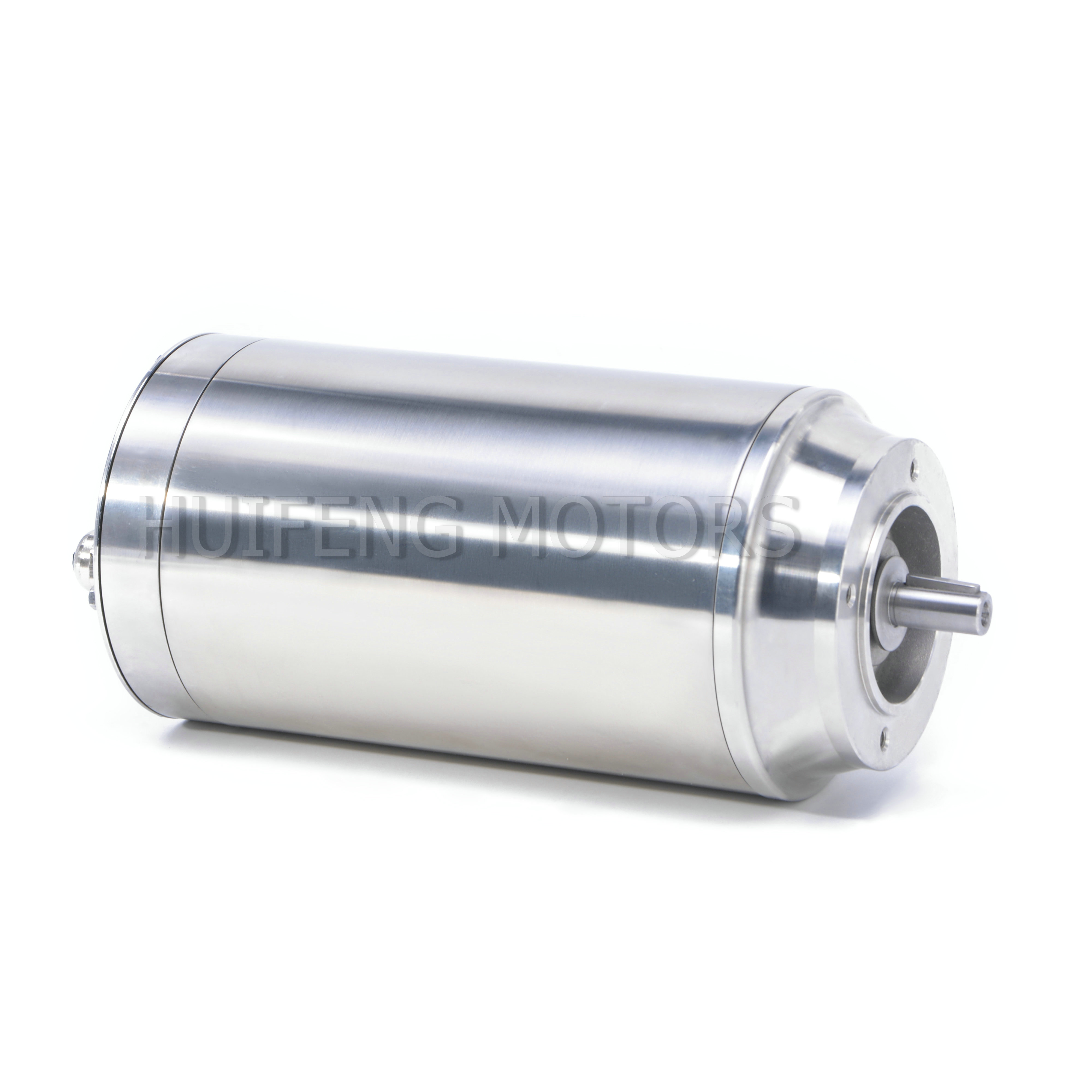

Premium Stainless Steel Induction Motors
The HYW Series stainless steel three-phase induction motors are engineered for demanding environments such as food processing and pharmaceutical facilities. These units feature a totally enclosed, non-ventilated design with a completely smooth surface to ensure excellent hygiene and ease of cleaning during frequent washdowns. Built for reliability, they offer superior anti-corrosion properties and are compatible with inverter duty operation for precise control.
Technical Specifications
Stainless Steel Grade
304316L
Mounting Configurations
- IM B3
- IM B5
- IM B14
- IM B35
- IM B34
- Efficiency Standard
- IE3IE4
- Insulation Rating
- Class F
- Duty Cycle
- S1
- Enclosure
- Totally Enclosed Non-Ventilated (C410)
Performance Metrics
Voltage Options
- 230/400V
- 277/480V
- 208-230/460V
Frequency
50 Hz
Frequency
60 Hz
Frequency
- Inverter Duty Operation
- Yes
Mechanical Data
Bearing Specifications
| Position | Bearing Model |
|---|---|
| Drive End (DE) | 6205 |
| Non-Drive End (NDE) | 6203 |
- Approximate Weight
- 35 lbs
