Stainless Steel Pole Mounting Strapping Kit
Stainless steel straps are designed for attaching equipment to poles, providing secure mounting. These straps and buckles are constructed from 304 stainless steel for durability.
Technical Specifications
Product Overview
Versatile Stainless Steel Strapping Kit
This stainless steel pole mounting strapping kit is engineered for professional cable protection, anchoring, and suspension applications. The kit includes high-durability 304 stainless steel straps and compatible buckles, ensuring long-lasting performance in outdoor environments. Designed for efficiency, the system allows for custom-length cutting and secure fastening using a specialized binding tool.
Material Specifications
- Material Grade
- 304 Stainless Steel
Technical Details

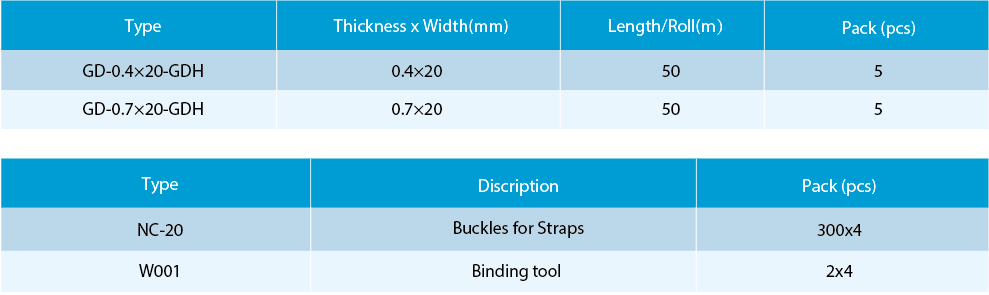

Strap Dimensions
| Type | Thickness x Width (mm) | Length per Roll (m) |
|---|---|---|
| GD-0.4x20-GDH | 0.4 x 20 | 50 |
| GD-0.7x20-GDH | 0.7 x 20 | 50 |
- Available Strap Types
- GD-0.4x20-GDHGD-0.7x20-GDH
Accessories
Included Components
- NC-20 Buckles (300 pcs/pack)
- W001 Binding Tool (2 pcs/pack)
Installation
Installation Process
- Cut the strap to the required length.
- Insert the steel strap through the NC-20 buckle.
- Use the binding tool to tension and fix the strap securely.
