Technical Specifications
Product Overview

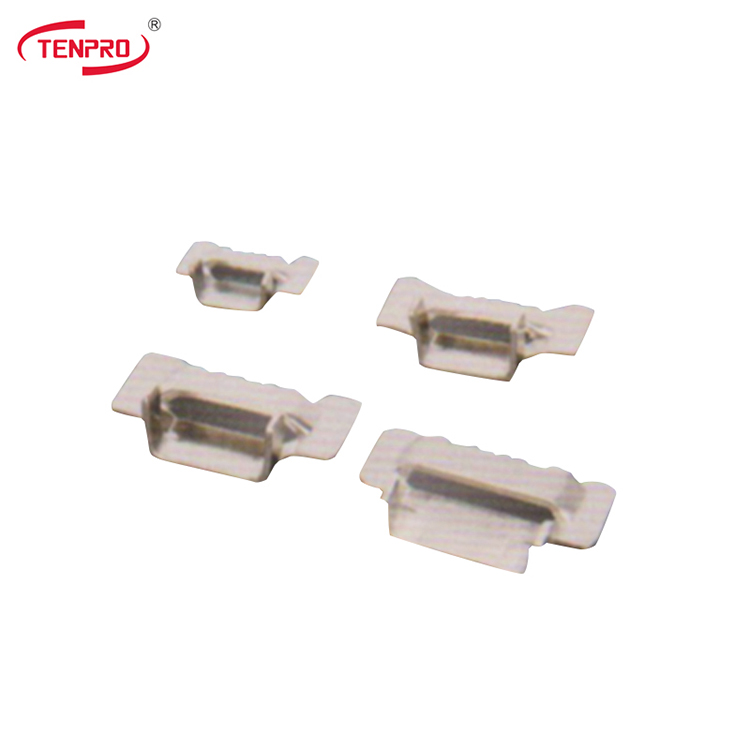

Dentiform Locked Harness Buckle
These dentiform locked harness buckles are engineered for use with stainless steel banding and strapping. Constructed from high-quality SUS 304 stainless steel, they provide superior corrosion resistance and high tensile strength suitable for demanding industrial and outdoor environments. The specialized dentiform locking mechanism ensures a consistent, secure grip that prevents slippage and maintains reliable tension over time.
Material and Performance
- Material Characteristics
- SUS 304 Stainless SteelAcid-proofCorrosion ResistantHigh Tensile Strength
- Finish
- Uncoated
Technical Specifications
Model Specifications
| Model | Width | Thickness | Packing |
|---|---|---|---|
| TSBD-8 | 1/4 (8mm) | 0.5 | 100 |
| TSBD-10 | 3/8 (10mm) | 1 | 100 |
| TSBD-12.7 | 1/2 (12.7mm) | 1.2 | 100 |
| TSBD-16 | 5/8 (16mm) | 1.2 | 100 |
| TSBD-19 | 3/4 (19mm) | 1.2 | 100 |
| TSBD-10 | 3/8 (10mm) | 1.2 | 100 |
| TSBD-12.7 | 1/2 (12.7mm) | 1.5 | 100 |
| TSBD-16 | 5/8 (16mm) | 1.5 | 100 |
| TSBD-19 | 3/4 (19mm) | 1.5 | 100 |
