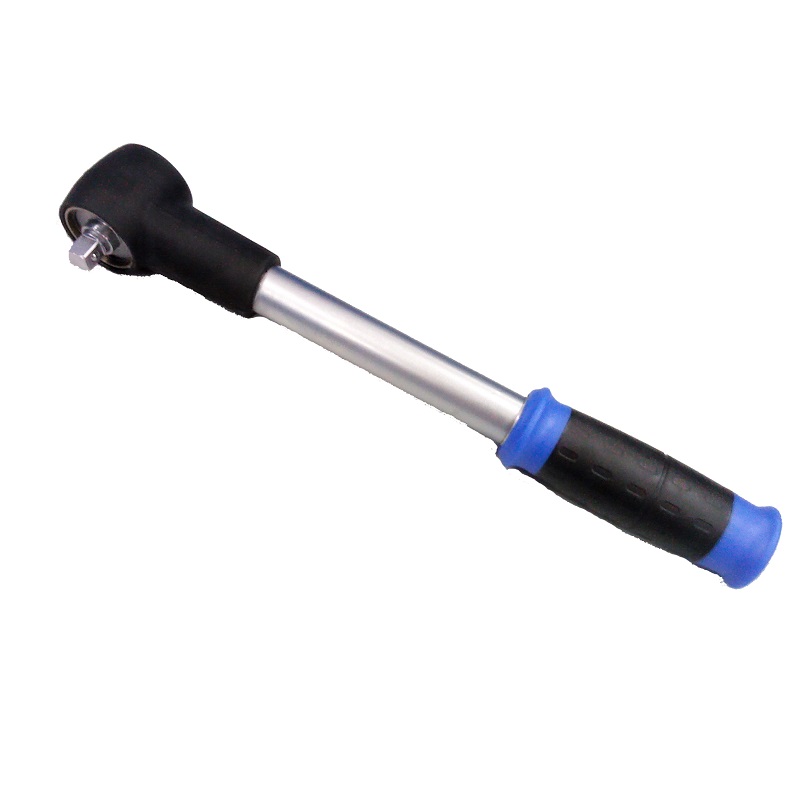

Square Drive Slipper Torque Wrench
This square drive slipper torque wrench is designed for controlled tightening. The slipper mechanism prevents over-torquing with +/- 6% accuracy.
Technical Specifications
Product Overview
Professional Slipper Torque Wrench
The NBU series square drive slipper torque wrench is designed for high-precision fastening in demanding production environments. Featuring an automatic slipper mechanism, it effectively prevents over-tightening and enhances operator safety. With a comfortable rubberized handle and head, this tool combines stability, repeatability, and ease of use to maintain strict quality standards on any assembly line.
Key Features
- Advantages
- Automatic SlippingOver-tightening PreventionHigh RepeatabilityComfort GripStable Performance
Technical Specifications
Performance Metrics
6 %
Accuracy Class
Model Specifications
| Model | Length | Height | Drive | Range |
|---|---|---|---|---|
| NBU5 | 182.5 | 34.3 | 6.3 | 1-5 N.m |
| NBU10 | 182.5 | 34.3 | 6.3 | 4-10 N.m |
| NBU25 | 214 | 49.5 | 10 | 5-25 N.m |
| NBU55 | 323 | 58.5 | 10 | 15-55 N.m |
| NBU125 | 464 | 67.3 | 12.5 | 25-125 N.m |
