Square Baler for Agricultural Use
This square baler compresses harvested crops into compact, rectangular bales. It is designed for efficient handling, storage, and transport of hay, straw and other crops.
Technical Specifications
Product Overview
High-Efficiency Square Baler
This agricultural square baler is engineered for efficient compression and baling of harvested crops such as hay and straw. Built for performance in demanding field conditions, it features a reliable pickup mechanism, a high-frequency compression chamber, and a secure knotting system. Designed for versatile use, it offers adjustable bale dimensions to meet specific storage and transport requirements.
Performance Metrics
Operational Performance
540 RPM
PTO Speed
110 str/min
Max Plunger Frequency
7 km/h
Max Working Speed
Technical Specifications

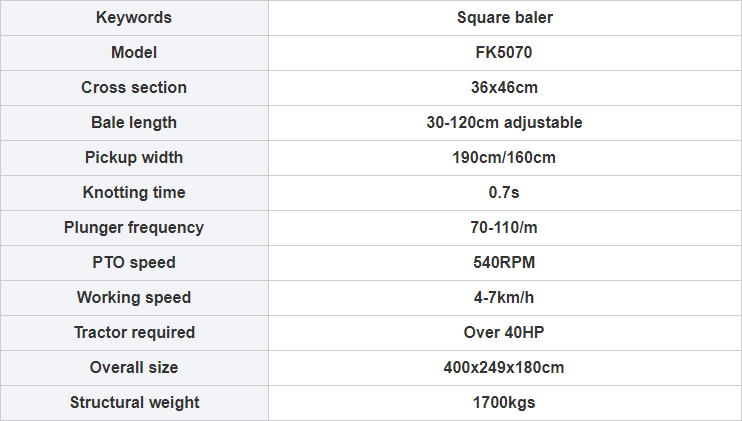

Key Machine Specs
| Feature | Specification |
|---|---|
| Model | FK5070 |
| Bale Cross-Section | 36 x 46 cm |
| Adjustable Bale Length | 30-120 cm |
| Pickup Width | 160-190 cm |
| Structural Weight | 1700 kg |
| Required Tractor Power | Over 40 HP |
Operational Details
- Knotting Time
- 0.7 s
Dimensions
- Overall Dimensions (LxWxH)
- 400 x 249 x 180 cm
Application
- Compatible Crops
- HayStraw
