Spring Tine Field Cultivator
This field cultivator features convenient space and depth adjustment for agronomic requirements. Its double spring tension device protects the plow tip during operation.
Technical Specifications
Overview

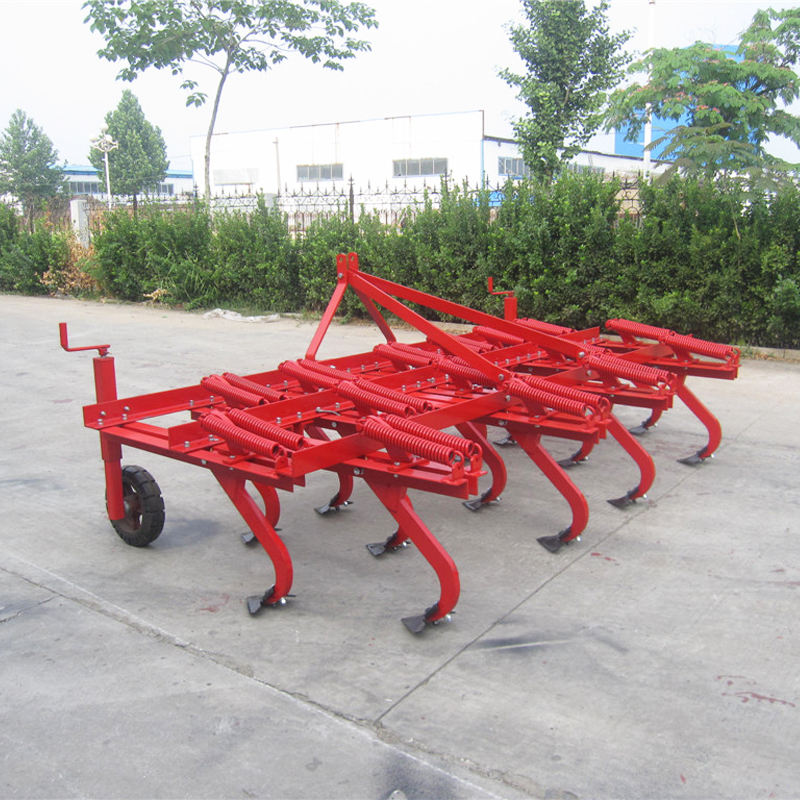

High-Efficiency 3ZT Field Cultivator
The 3ZT Field Cultivator is a robust agricultural implement designed for intensive farming, offering convenient space and depth adjustments. It features a unique double spring tension device that protects the plow tips by allowing them to bounce over obstacles and quickly reset. This versatile machine supports both deep-loosening and soil-loosening shovel types, making it ideal for weeding, moisture conservation, and seedbed preparation.
Key Features
Operational Benefits
- Convenient space adjustment
- Easy depth adjustment
- Reduced matching power through vibration reduction
- Durable and easy to maintain
- Protection Mechanism

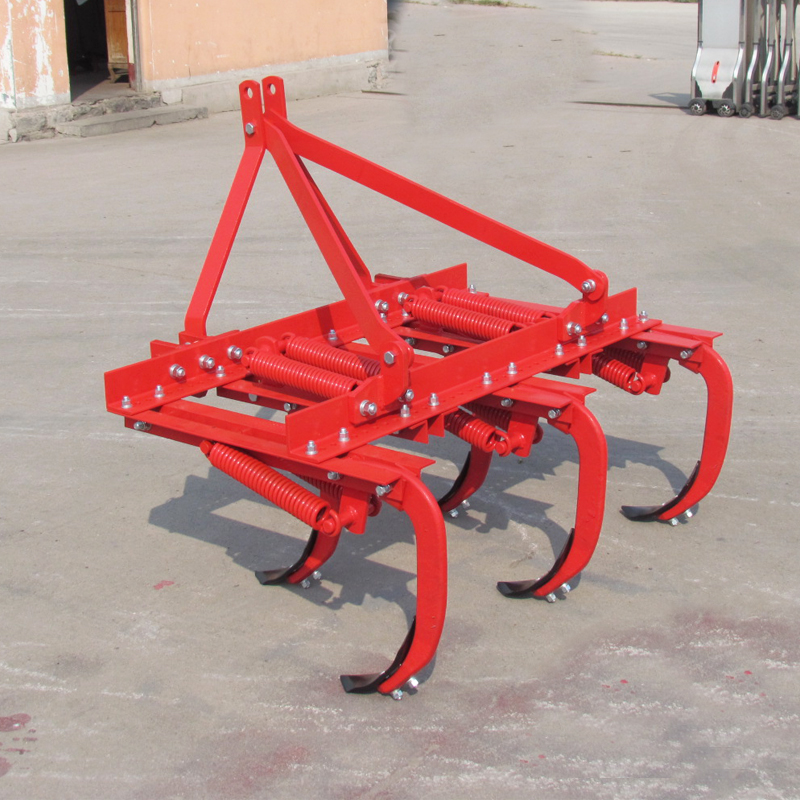

- Double spring tension device for automatic obstacle bypass and tip protection
- Primary Applications
- Middle TillageSoil LooseningMoisture ConservationWeeding
Technical Specifications
Model Performance Table
| Model | No. of Tines | Working Width (mm) | Matched Power (hp) |
|---|---|---|---|
| 3ZT-5 | 5 | 1,200 | 30-40 |
| 3ZT-7 | 7 | 1,500 | 50-65 |
| 3ZT-9 | 9 | 2,100 | 60-80 |
| 3ZT-11 | 11 | 2,850 | 60-80 |
| 3ZT-15 | 15 | 3,000 | 80-110 |
Standard Working Depth
200 mm
Min Depth
250 mm
Max Depth
Design & Build
Compatible Tine Types
Deep-loosening tipsLoosening shovel
- Frame Construction
- Heavy-duty high-strength steel with protective coating
