Split Access Control Keypad Reader with Dual Relays
This split access control system includes dual relays and anti-tamper protection for enhanced security. It has an IP65 rating and supports password, card, or password+card unlock methods.
Technical Specifications
Overview
Advanced Split Access Control System
This split access control system provides a robust, industrial-grade security solution designed for reliable performance in diverse environments. Featuring a dual-relay configuration and an IP65-rated waterproof design, it ensures secure entry management for both indoor and outdoor applications. The system supports flexible authentication methods including card, password, and combination access, backed by a high-capacity user database and anti-tamper security features.
Technical Specifications
IP Rating
IP65
- Power Supply
- DC/AC 12-24V
- Operating Current
- 150 mA
- Working Temperature
- -40°C to +85°C
Access & Security
- Max User Codes
- 1010
- Access Methods
- PasswordCardPassword + Card
- Reader Frequency
- 125KHz (EM)
- Unlock Output Delay
- 99 seconds
Dimensions & Hardware
Unit Dimensions
| Component | Dimensions (mm) |
|---|---|
| RAD103-D | 124 x 79 x 21 |
| RAK1 | 95 x 68 x 32.5 |

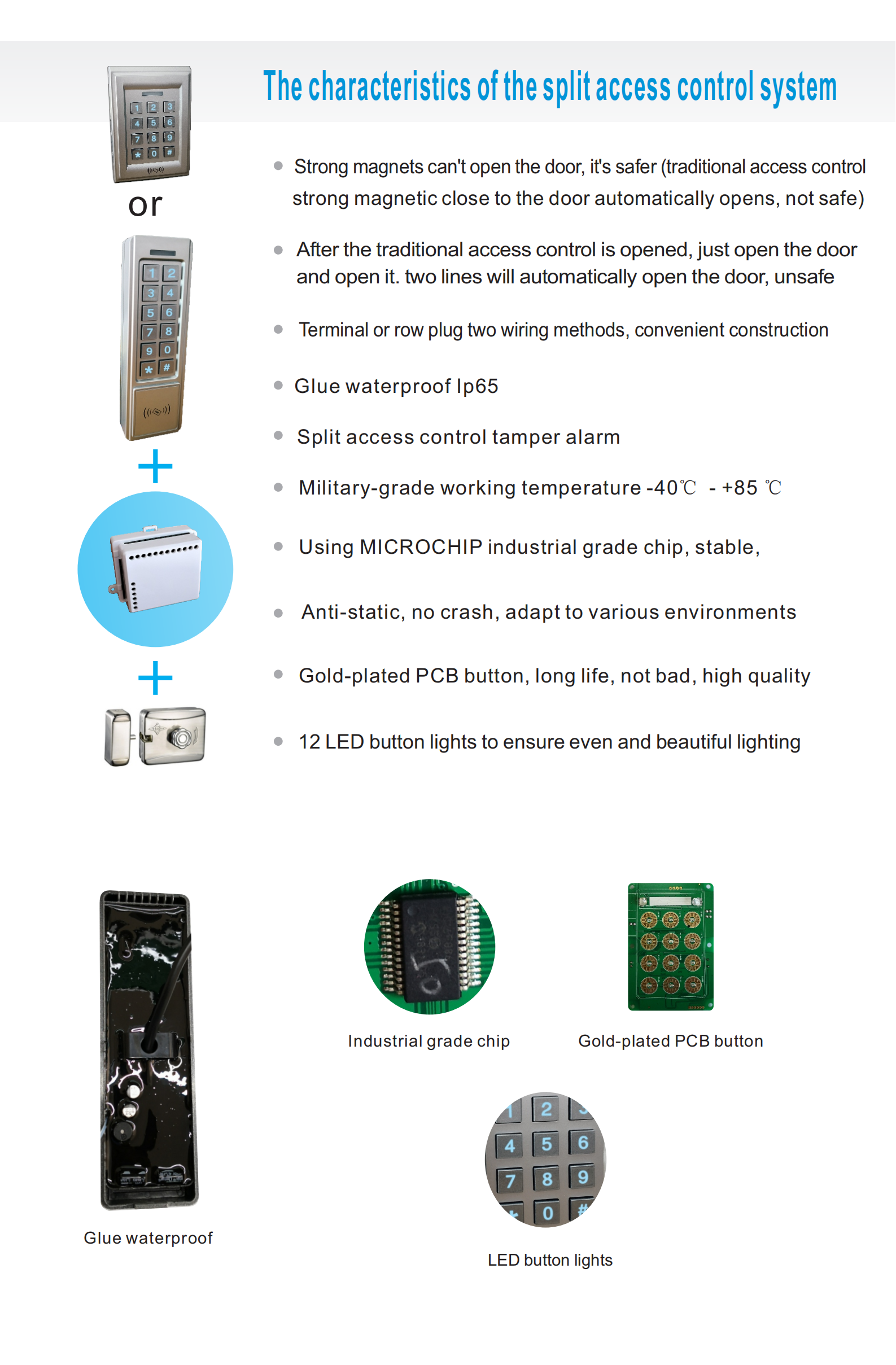

System Highlights

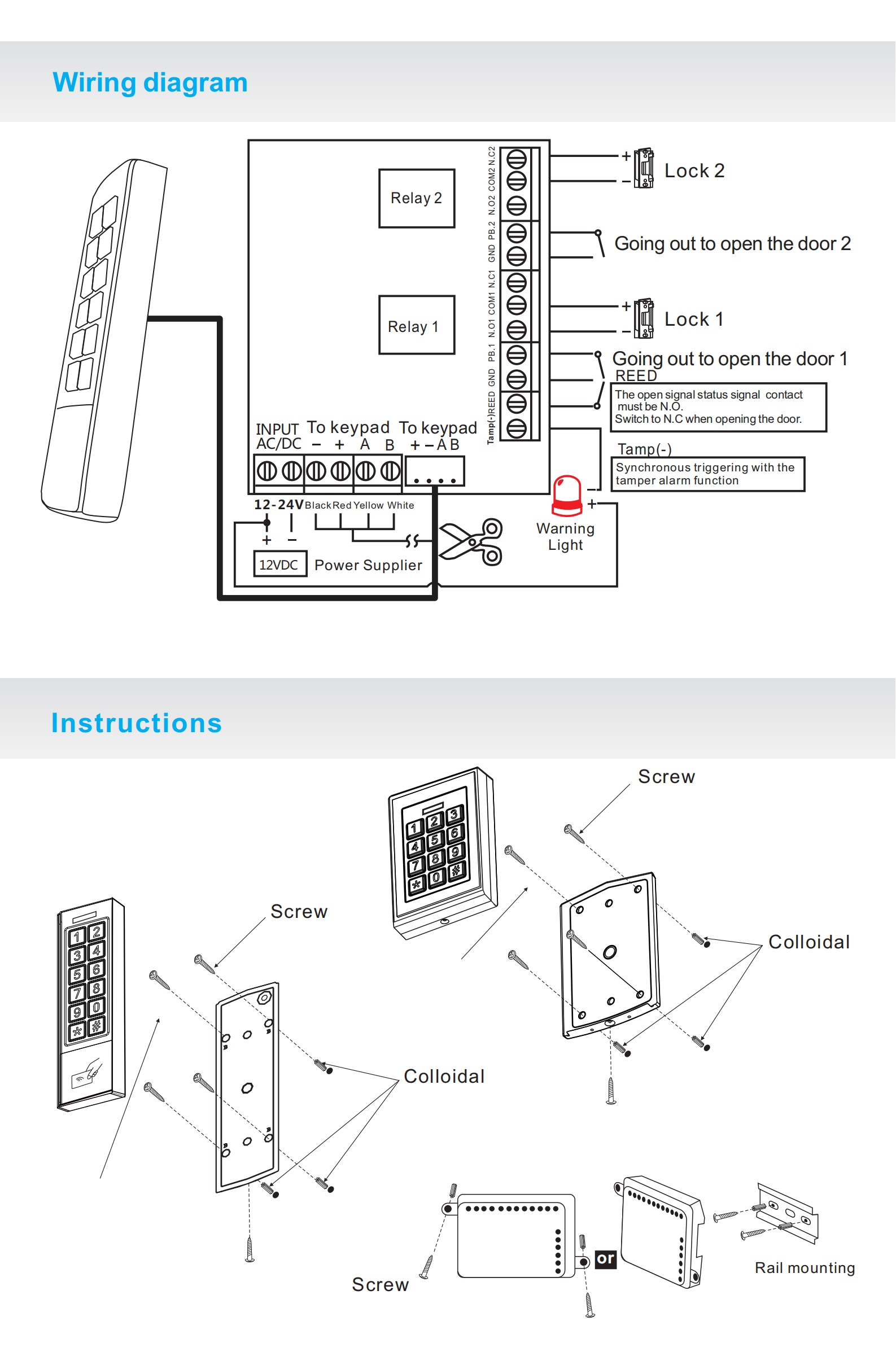

- Dual relay outputs
- Built-in anti-tamper function
- External tamper alarm siren
- Gold-plated PCB buttons
- 12 LED button lights
- Watchdog timer with self-recovery
