Compact RFID Reader for Access Control and Inventory
This compact RFID reader is designed for various applications including access control, inventory management, and point-of-sale systems. It supports multiple RFID standards and offers seamless integration with existing systems.





Technical Specifications
Overview

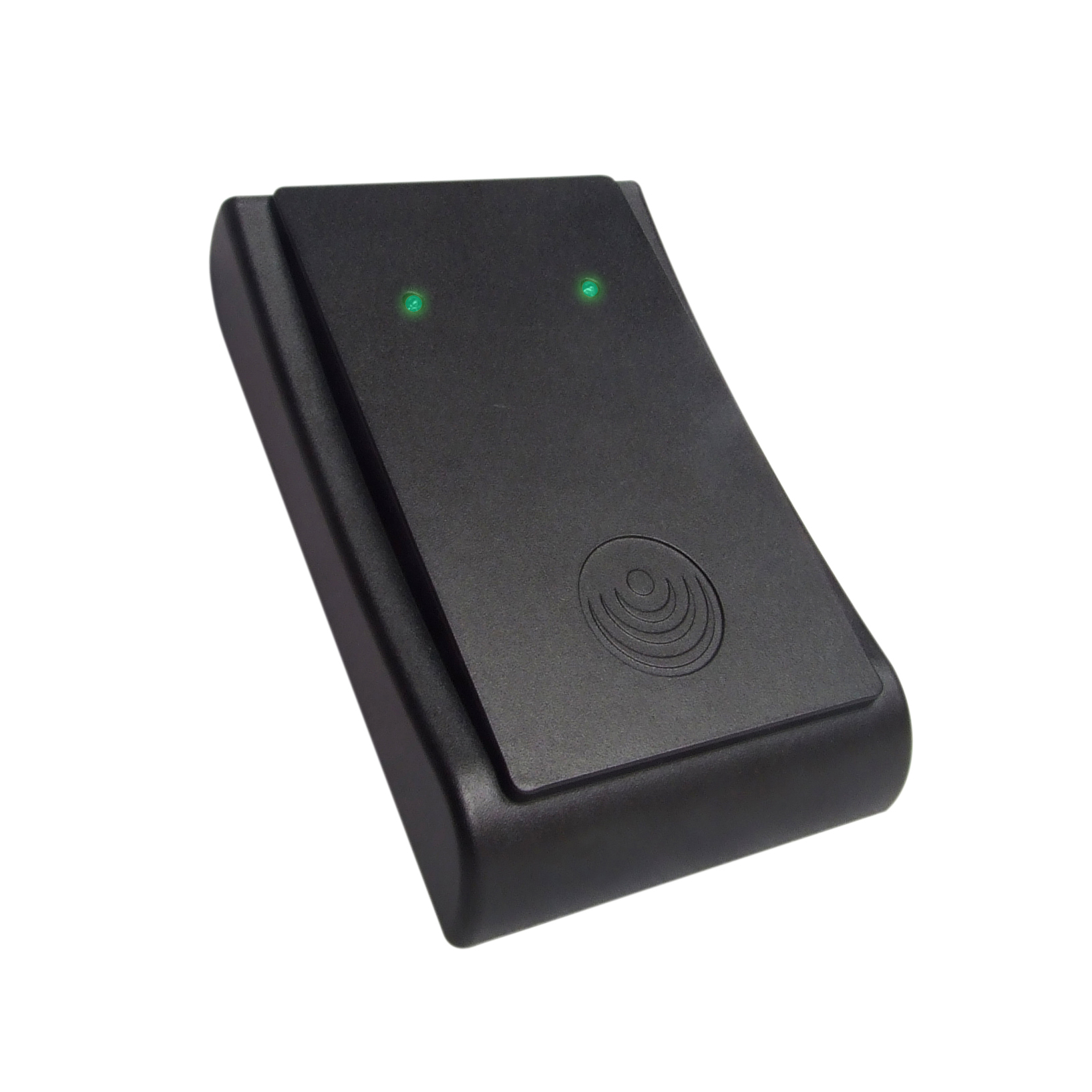

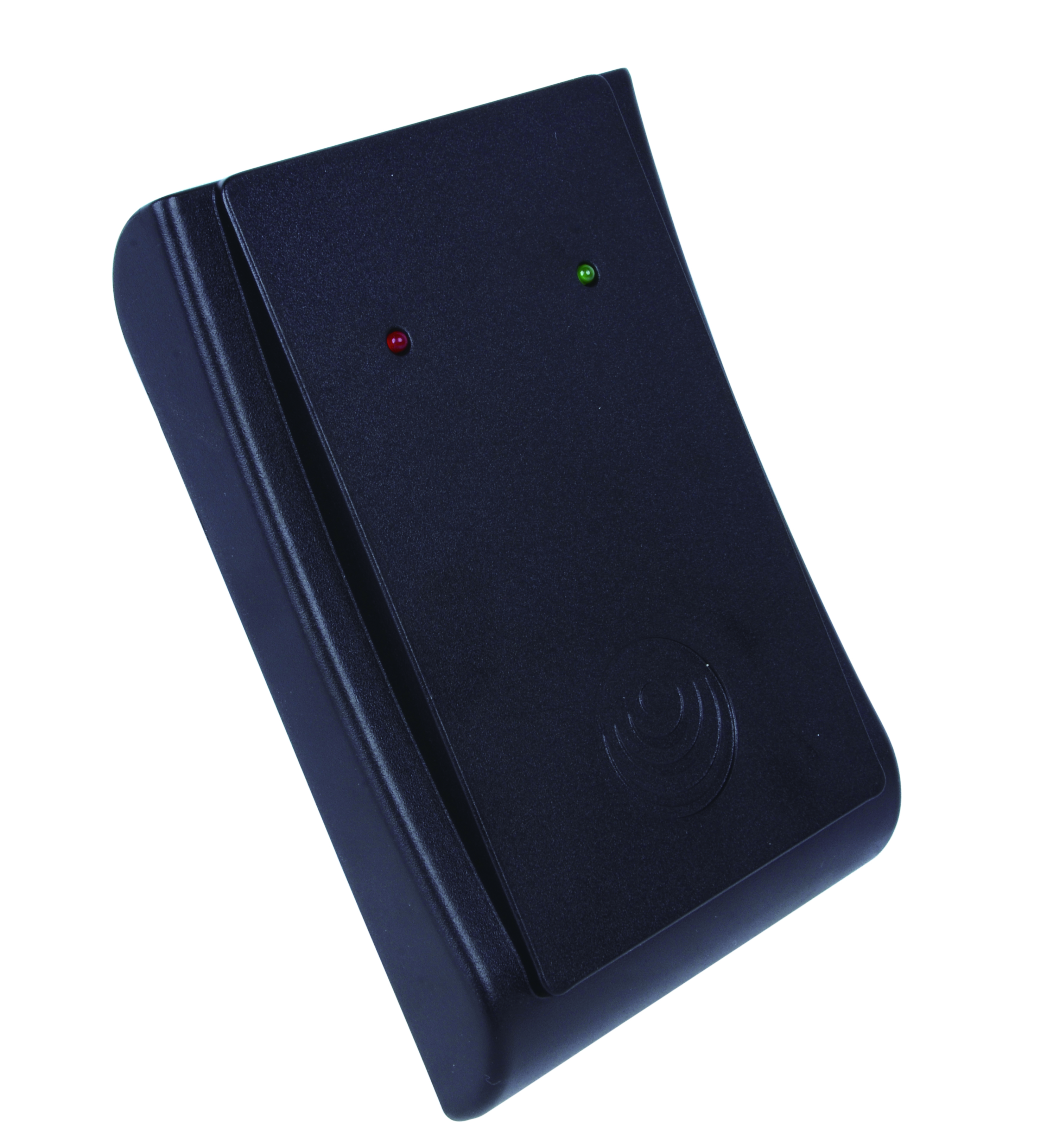

High-Efficiency RFID Desktop Reader
This high-frequency RFID desktop reader operates at 13.56MHz and is designed for seamless integration into access control, inventory management, and identification systems. Utilizing a standard USB interface, it offers rapid read speeds of under 70ms and includes comprehensive status indicators for reliable operation. Its compact, durable design makes it an ideal solution for diverse environments ranging from public transportation and event ticketing to product authentication.
Technical Specifications
- Operating Frequency
- 13.56 MHz
- Read Speed
- < 70ms
- Reading Distance
- 5 cm
- Power Consumption
- 2 W
- Power Supply
- +5V DC
- Communication Interface
- USB
Physical Attributes
- Dimensions
- 93mm x 33mm x 134.5mm
- Weight
- 0.1 kg
Environmental Conditions
- Operating Temperature
- -20°C to 70°C
- Humidity
- 5% to 95% RH
Compatibility
- Supported Chip Types
- Mifare 1K S50Mifare 4K S70FM11RF08Mifare Ultralight EV1 (MF0UL11)Mifare Ultralight EV1 (MF0UL21)NTAG213NTAG215NTAG216
Applications
Common Applications
- Public Transportation
- Access Management
- Electronic Toll Collection
- Car Parking
- School and Campus Cards
- Employee Cards
- Internet Cafes
- Event Ticketing
- Product Authentication
