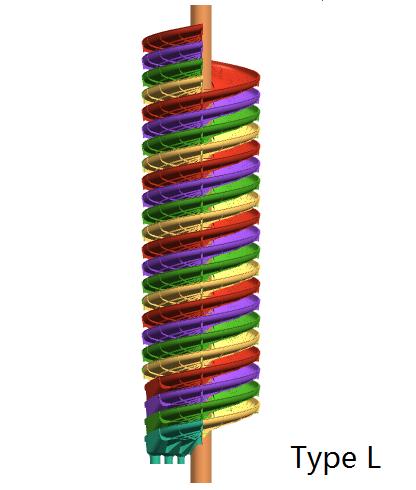

Spiral Concentrator for Mineral Separation
The spiral concentrator Type L is designed for efficient mineral separation. It utilizes gravity to separate particles based on density, making it suitable for various mineral processing applications.
Technical Specifications
Product Overview
High-Efficiency Mineral Separation
The Type L spiral concentrator is a precision-engineered gravity separation device designed for maximizing recovery in mineral processing circuits. Utilizing advanced modular polyurethane construction and customizable splitting configurations, this unit ensures consistent performance and longevity in challenging mining environments. Its versatile design supports single to quad trough configurations to meet various throughput requirements and feed densities.
Key Features
Core Features
- Replaceable modular cast polyurethane feed box
- Customizable splitter configurations per application
- Integrated concentrate diverter and re-pulping devices
- Cast polyurethane product collector box
- Accurate top or bottom entry feed distribution

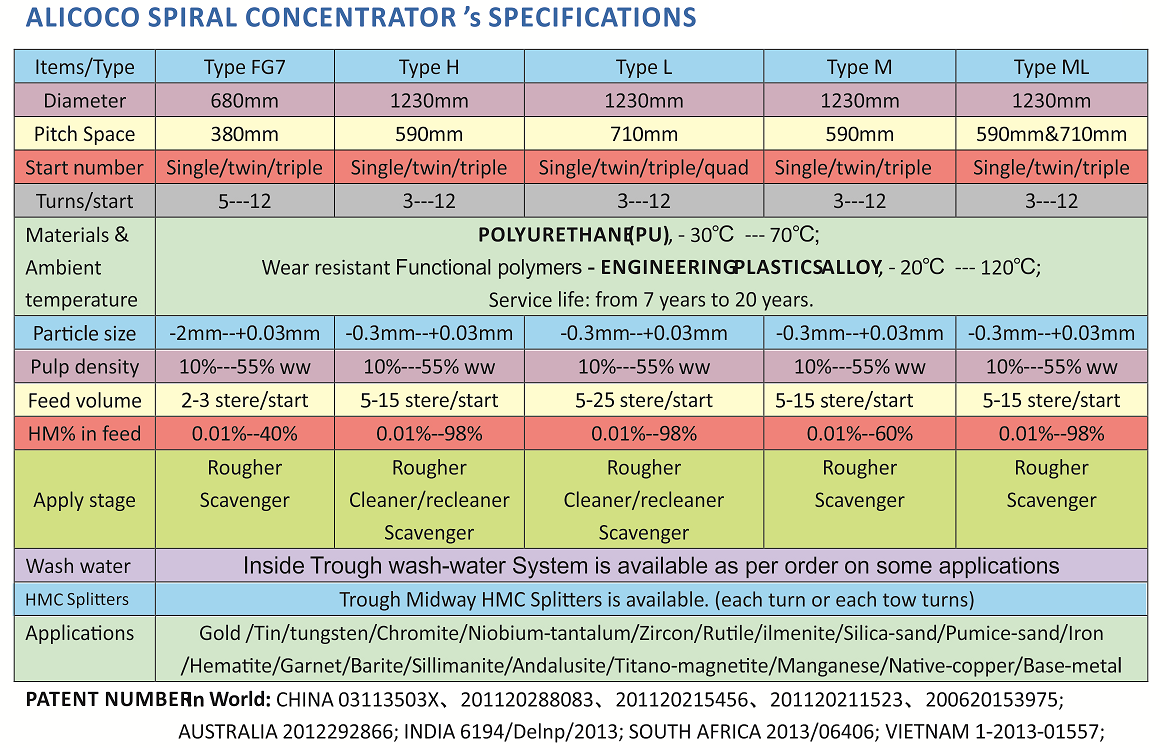

Technical Specifications

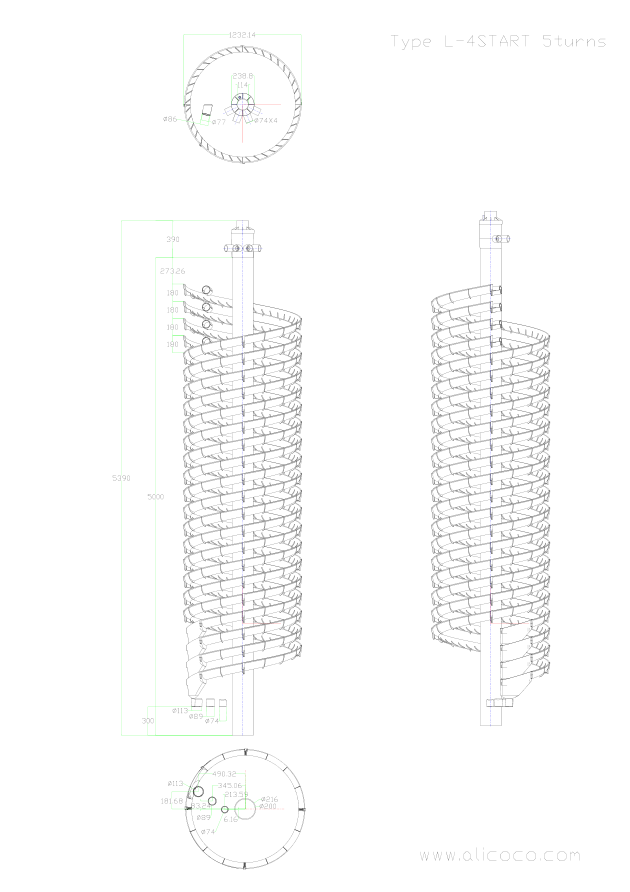

Physical Dimensions
5,390 mm
Total Height
5,000 mm
Spiral Section Height
1,232.14 mm
Outer Diameter
Operating Parameters
| Metric | Value |
|---|---|
| Pitch Space | 710 mm |
| Feed Volume | 5-25 stere/start |
| Pulp Density | 10% - 55% w/w |
| Particle Size | -0.3mm to +0.03mm |
| Service Life | 7 - 20 years |
Application
- Suitable Minerals
- GoldTinTungstenIron OreZirconRutileIlmeniteSilica SandsChromiteManganese
