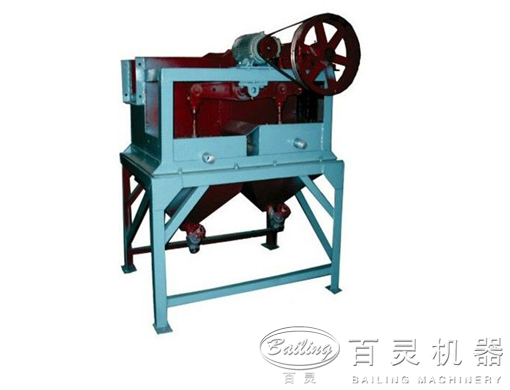

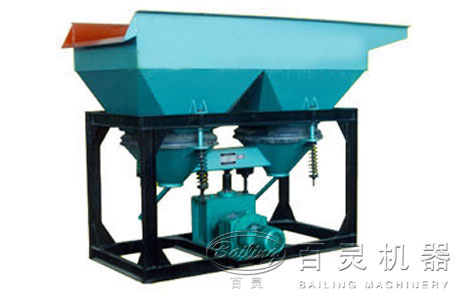

Mineral Jig Separator
The mineral jig separator separates materials based on density differences in a pulsating fluid medium. It is suitable for processing various minerals, including gold, tungsten, tin, hematite, and manganese.
Technical Specifications
Product Overview
High-Efficiency Mineral Jig Separator
This mineral jig separator utilizes advanced multi-chamber, digitally controlled air valve technology to optimize gravity concentration. Designed for reliability and energy efficiency, the system improves jigging capacity by approximately 20% through its specialized cone slide valve mechanism. Its robust, modular structure ensures ease of transportation and installation, making it a versatile solution for separating valuable minerals like gold, tungsten, tin, and iron from gangue materials.
Key Features
- Advantages
- Digital Air Valve ControlHigh CapacityEnergy EfficientEasy InstallationReliable Performance
Technical Specifications
Operating Metrics
20 %
Capacity Improvement
Model Specifications
| Model | Chambers | Sieve Area (m²) | Capacity (t/h) | Weight (kg) |
|---|---|---|---|---|
| 100×150 Diaphragm | 1 | 0.015 | 0.018-0.6 | 130 |
| 300×450 Double-Chamber | 2 | 0.27 | 3-6 | 745 |
| 1000×1000 Cone | 2 | 2 | 10-25 | 1,700 |
| 370×360 Cone | 2 | 0.274 | 1-3 | 240 |
| Ladder Diaphragm | 3 | 2.7 | 12.5-37.5 | 2,000 |
