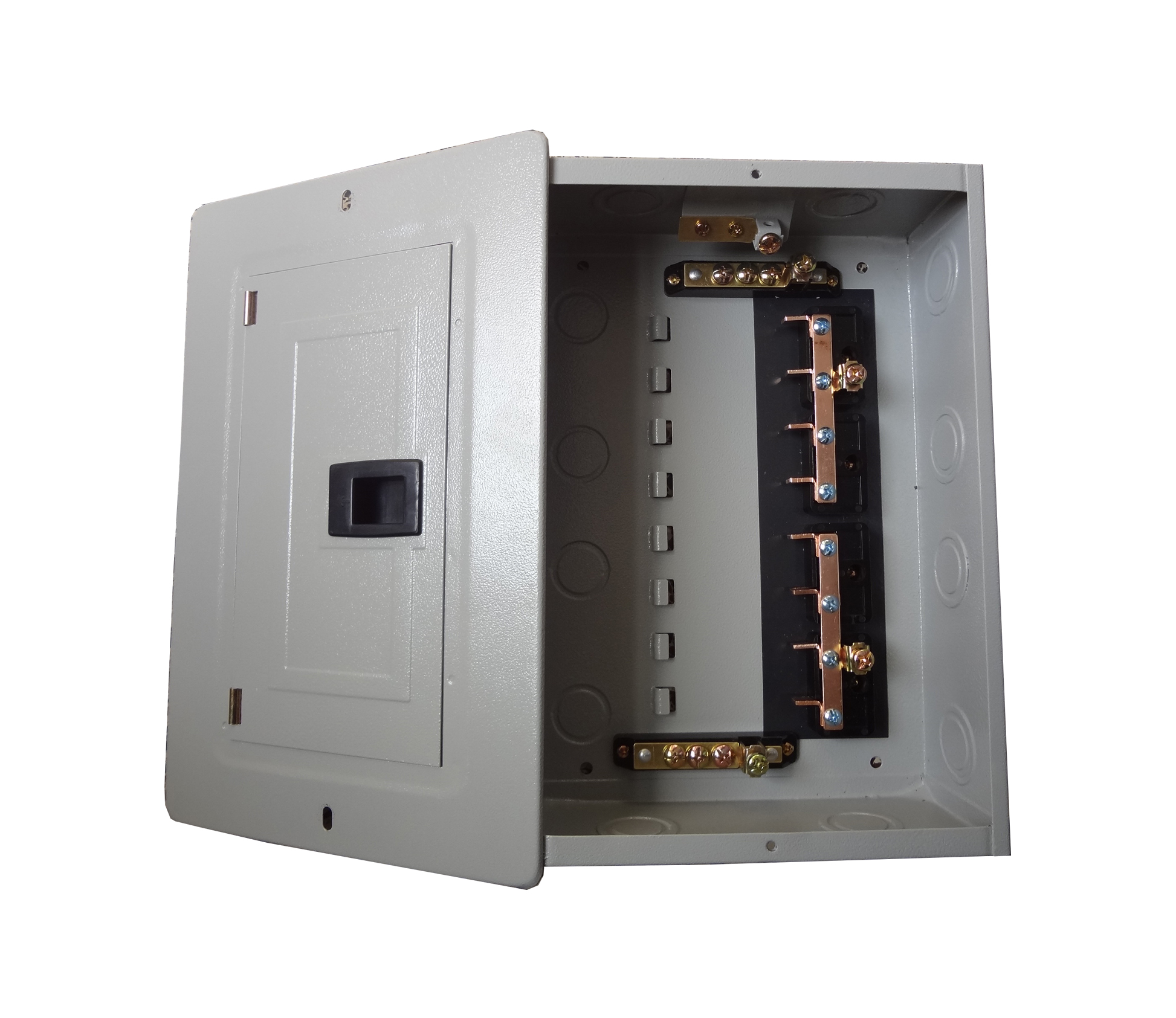

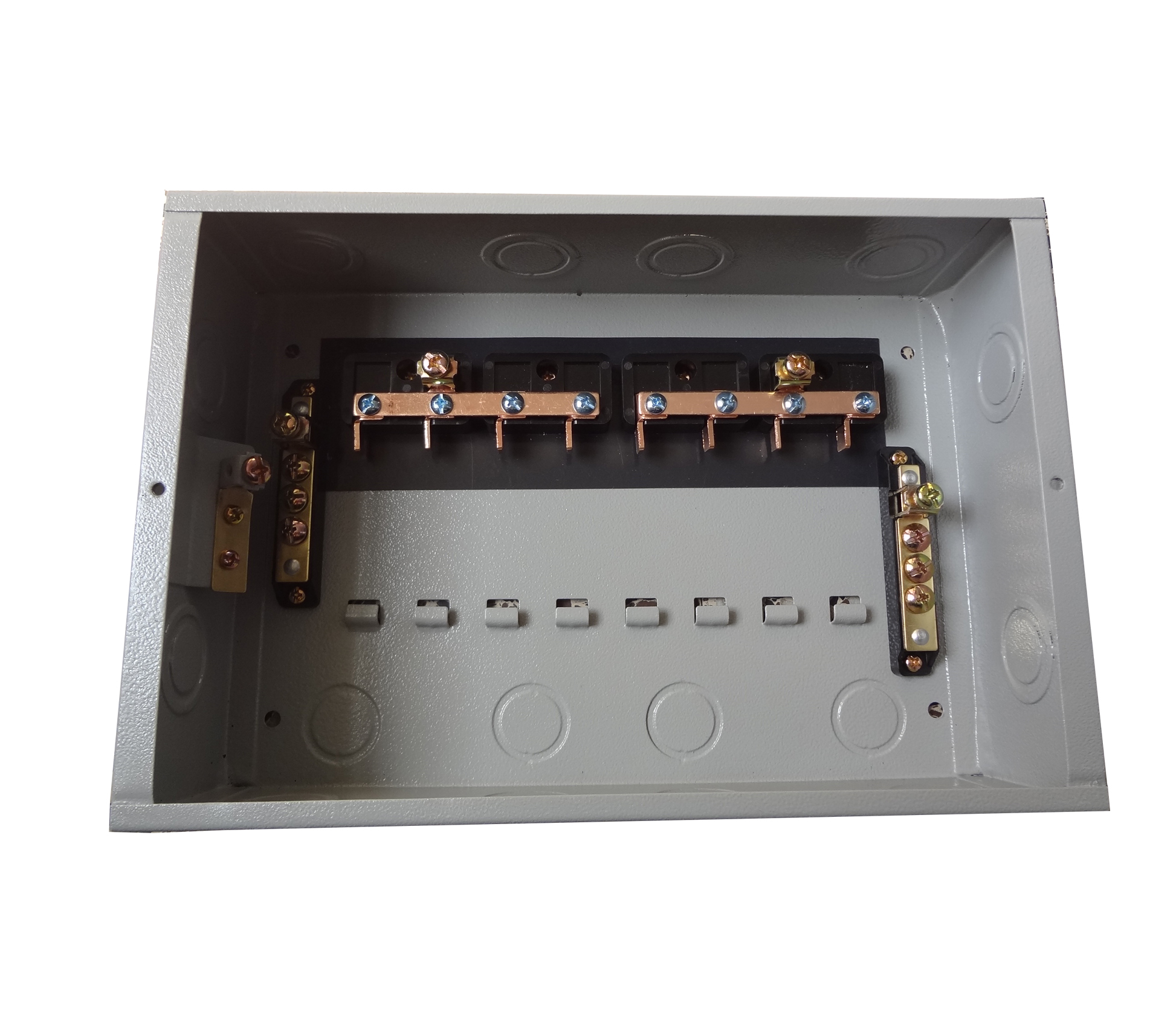

South American Standard 8-Way Electrical Distribution Box
This 8-way distribution box is designed for South American electrical standards. It provides a secure and organized housing for circuit breakers and electrical connections.
Technical Specifications
Product Overview
Professional Electrical Distribution
The GTLS Series distribution boxes are designed for safe and reliable power control in residential, commercial, and light industrial environments. Built with high-quality steel sheet and a durable polyester powder-coated finish, these enclosures ensure long-term performance and corrosion resistance. The wider internal layout is specifically engineered for ease of wiring and efficient heat dissipation.
Technical Specifications
Electrical Performance
100 A
Rated Current
240 Vac
Max Service Voltage
- Compatibility & Design
- GE THQL Breaker CompatibleSingle-phaseThree-wireFlush MountedSurface Mounted
Construction
Build Quality
| Feature | Details |
|---|---|
| Material | Steel Sheet |
| Thickness | 0.5-1.2mm |
| Finish | Matt-finish Polyester Powder Coat |
| Way Count | 8-Way |
Installation Features
- Knockouts on all sides
- Top and bottom cable entry
- Hinged access door
- Secure latching mechanism
