Technical Specifications
Product Overview
High-Performance Energy Storage

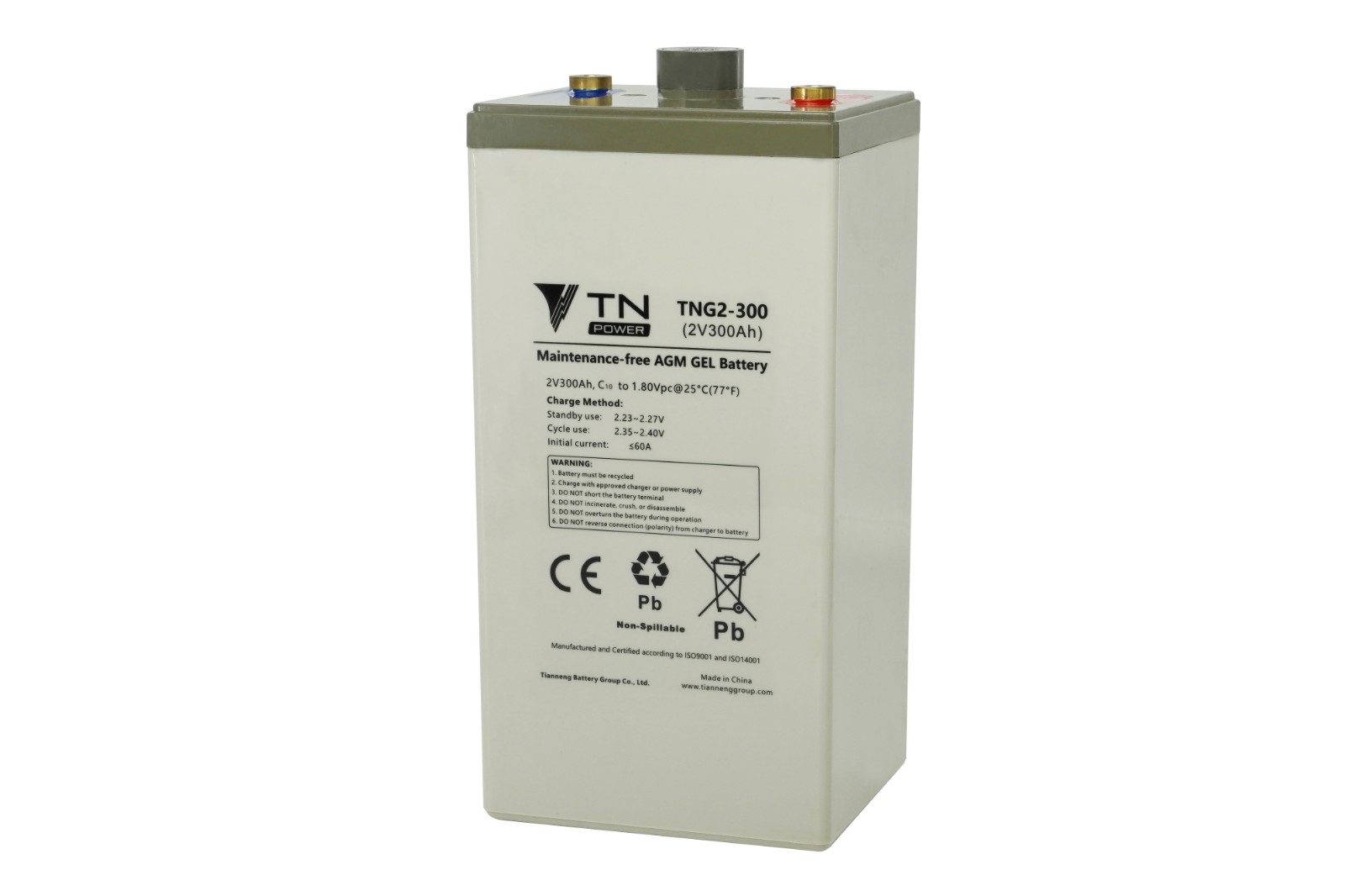

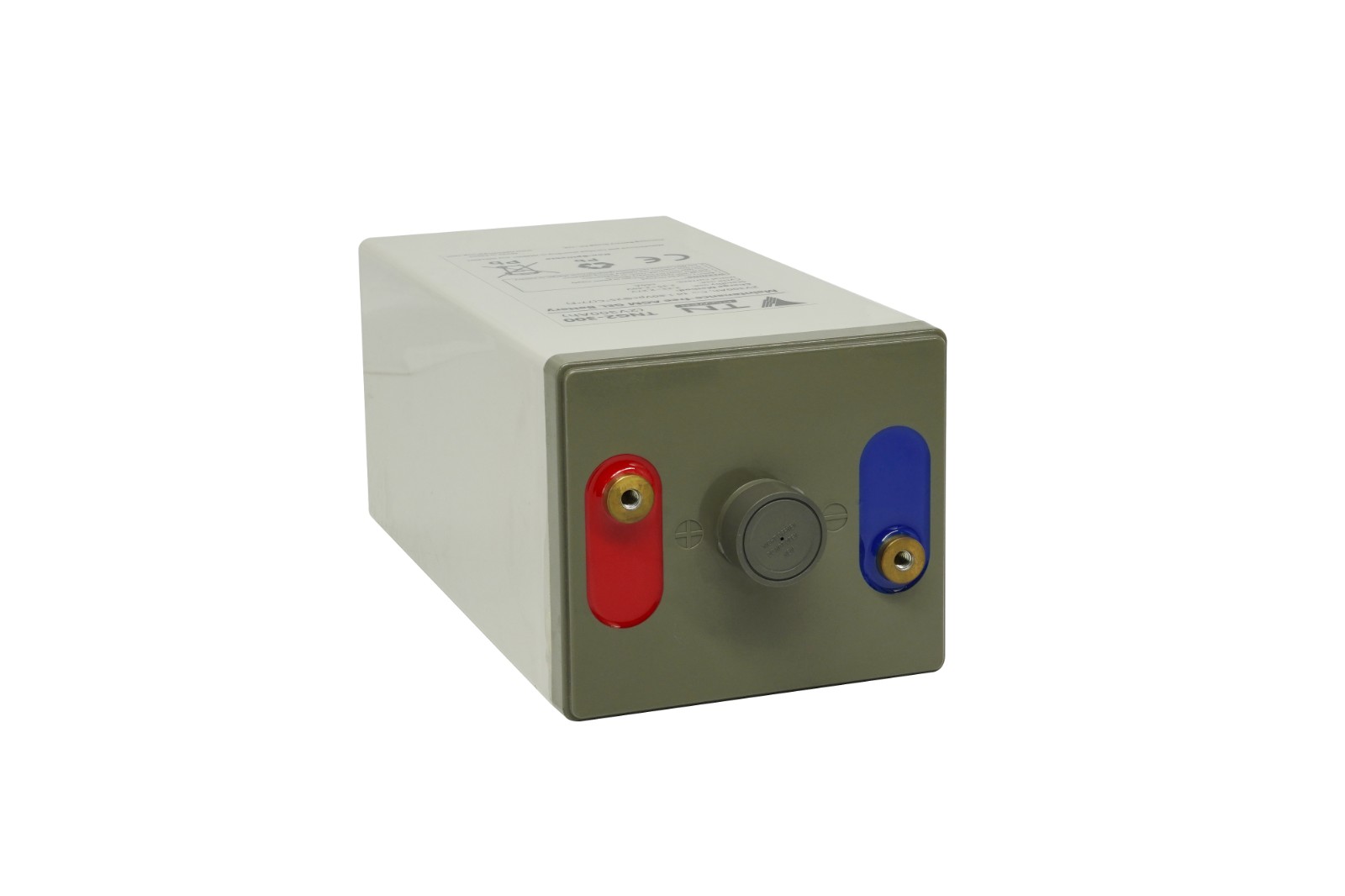

The TNG Series utilizes a cutting-edge combination of nano gel electrolyte and advanced AGM structure to provide superior reliability in harsh environments. Designed for longevity and excellent cycling capabilities, this battery is an ideal solution for renewable energy systems and telecom applications. Its maintenance-free design ensures stable, long-lasting performance for professional power backup requirements.
Technical Specifications
Key Performance Metrics
60 A
Max Initial Charge Current
1.8 Vpc
End Voltage per Cell (C10)
- Rated Capacity
- 300 Ah
- Nominal Voltage
- 2 V
Charging Parameters
Charging Voltages
| Application Type | Voltage Range |
|---|---|
| Standby Use | 2.23 - 2.27V |
| Cycle Use | 2.35 - 2.40V |
Certifications and Safety
Safety and Handling
- Non-spillable battery technology
- Must be recycled at end of life
- Use only approved chargers
- Avoid short-circuiting terminals
- Do not incinerate, crush, or disassemble
- Maintain upright position during operation
- Verify polarity before connection
- Certifications
- ISO9001ISO14001CE
