Solar Charge Controller for Battery Management
This solar charge controller efficiently manages battery charging in solar power systems. It regulates voltage and current from solar panels to prevent overcharging and extend battery life.
Technical Specifications
Overview

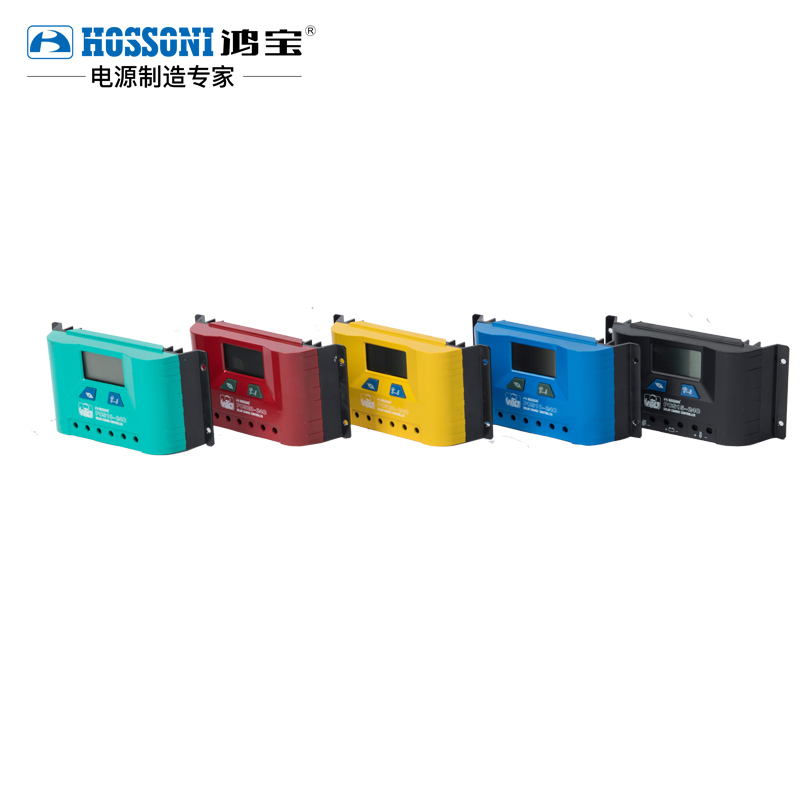

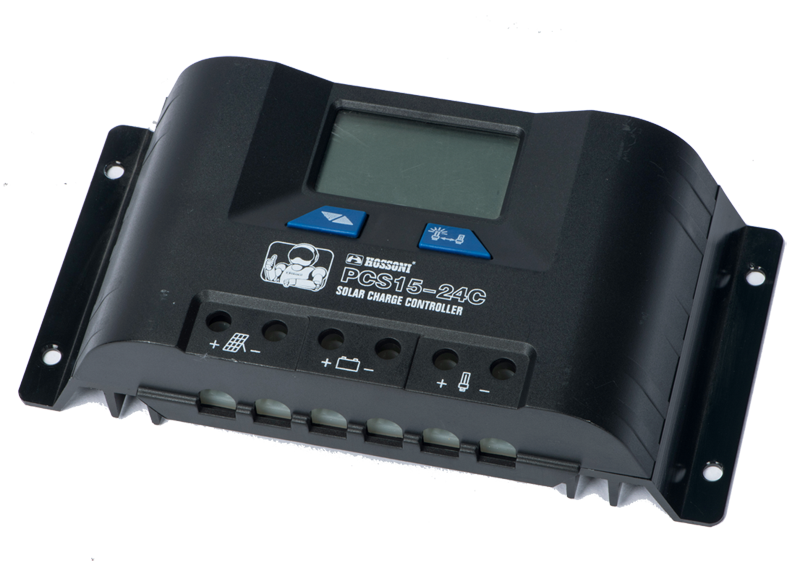

Advanced Solar Charge Controller
This solar power charge controller is engineered to efficiently manage energy transfer from solar panels to batteries, utilizing micro-computer chips and non-contact control technologies. By providing precise regulation and monitoring, the device directly improves system efficiency and extends the operational lifespan of connected batteries. It features a robust design suitable for various applications, offering both residential and commercial users reliable battery management.
System Capabilities
- Supported System Voltages
- 12V24V48V
Charging Features
Charging & Control Modes
- PWM Charge
- Floating Charge
- Fast Charge
- Even Charge
- Temperature Compensation
- Battery SOC Regulating
- Optic & Time Control
- Night Starting Function
- Capacity Calculation
- Manual Load Switch
- Over-discharged Auto-recovery
Protection Functions
Safety & Protection Mechanisms
High Voltage Disconnect (HVD)Low Voltage Disconnect (LVD)Depth of Discharge Disconnect (DOD)Over-voltage ProtectionOverheated ProtectionLoad Short-circuit ProtectionBattery Open Circuit ProtectionReverse Polarity Protection (Load & Battery)Solar Panel Reverse Connection ProtectionLightning Proof (Variable Resistor)Night Anti-refluxLow Electromagnetic Compatibility (EMC)
User Interface
Interface & Control
- LCD Display for real-time monitoring
- Two-button parameter adjustment
- Automatic system voltage identification
