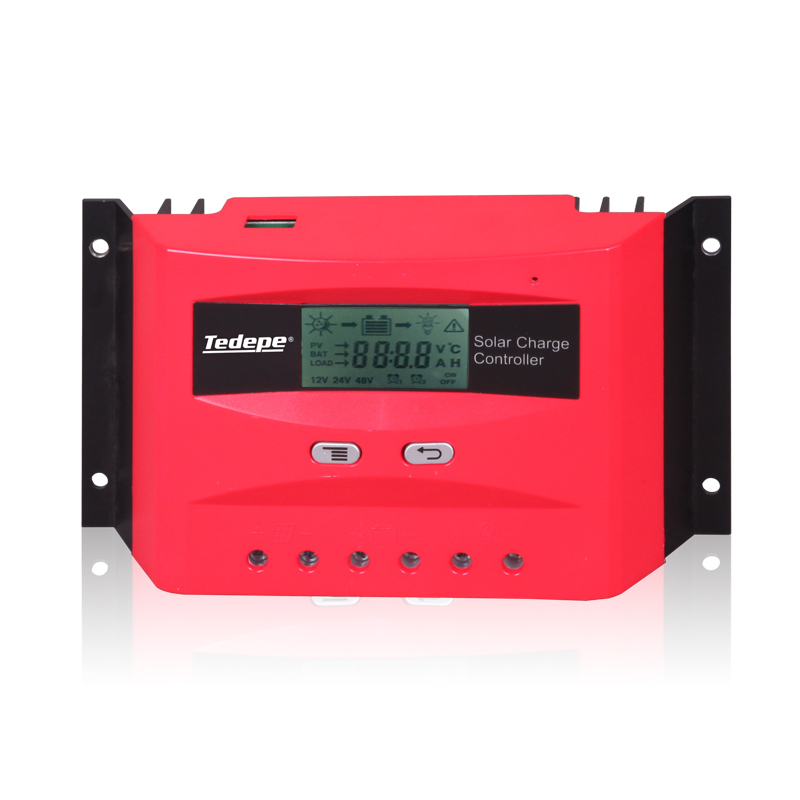

Solar Charge Controller 10A-60A
This solar charge controller is designed for efficient and safe charging of 12V, 24V, and 48V battery systems from solar panels. It incorporates multiple protection mechanisms, including overcharge, over-discharge, overload, and short-circuit protection, ensuring the longevity and safety of the battery and connected devices.
Technical Specifications
Product Overview
Professional PWM Solar Charge Controller
This high-efficiency PWM solar charge controller is designed for versatile off-grid photovoltaic applications. It features automatic system voltage recognition for 12V and 24V battery banks and intelligent 3-stage charging logic. Built-in protection mechanisms ensure safety against over-voltage, short circuits, and overloading, while temperature compensation technology effectively extends battery service life.
Technical Specifications
Available Current Ratings
- 10A
- 15A
- 20A
- 30A
- 40A
- 50A
- 60A
- System Voltages
- 12V24V
- Charging Method
- PWM 3-stage charging
Key Features
Safety Protections
Over-voltageShort-circuitOverloadOverchargeOver-dischargeReverse connectionTemperature compensation
Control Interface
- LCD Display
- Double button operation
- Adjustable load control mode
- Timer function for street lighting
