Technical Specifications
Overview
Intelligent Solar Charge Control

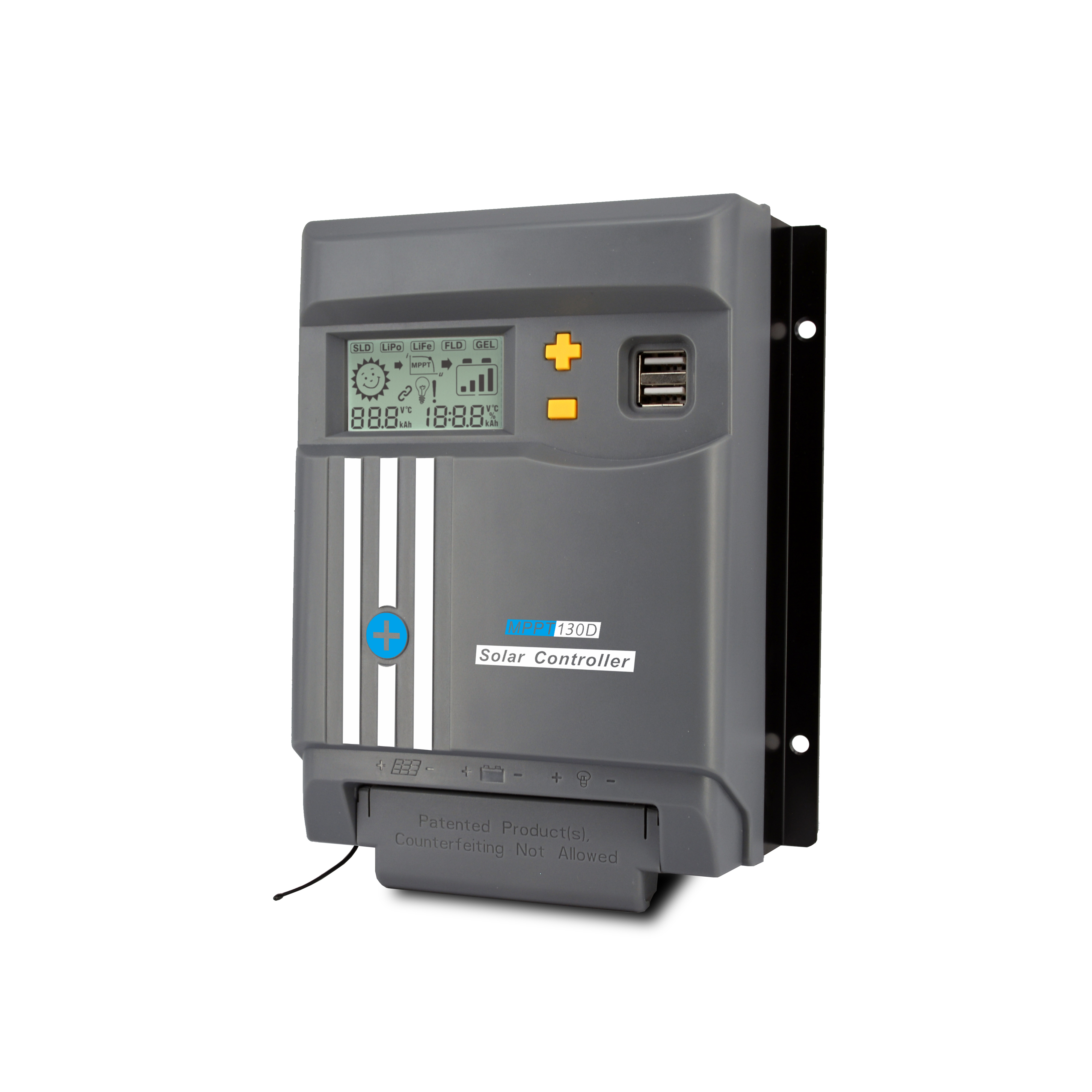

This MPPT solar charge controller utilizes advanced DC/DC converting and MCU technology to intelligently adjust the solar array's working point for maximum power output. By tracking the maximum working point in real-time, it significantly improves solar panel efficiency by 5% to 30% compared to traditional PWM controllers. The unit features an intuitive LCD display for monitoring system status and supports a wide range of battery chemistries.
Key Features
Performance Efficiency
99 %
MPPT Efficiency
98 %
Peak Conversion
30 A
Max Charging Current
- Core Features
- MPPT Charging12V/24V Auto WorkLCD DisplayUSB Output (5V 1A)Multi-stage Charging
Technical Specifications
System Specifications
| Parameter | Value |
|---|---|
| Model | MPPT130D |
| System Voltage | 12/24V Auto |
| Battery Voltage Range | 8V-32V |
| Max Solar Input Voltage | 100V/150V |
Supported Battery Types
SealedFloodedGELLiFePO4Li(NiCoMn)O2
Safety & Protection
Protection Mechanisms
- High/Low voltage disconnection and recovery
- Overload and short circuit protection
- Solar panel and battery reverse polarity protection
- Reverse current protection at night
- USB output overheat and short circuit protection
