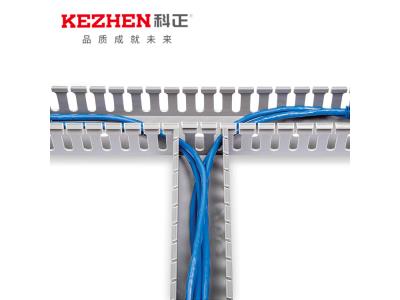

Slotted PVC Wiring Duct
Slotted wiring ducts protect cables from dirt, debris, and regular wear. These ducts conceal loose wires for a neat, finished look.
Technical Specifications
Product Overview
Professional Slotted PVC Wiring Duct
This high-quality slotted PVC wiring duct provides an efficient solution for cable management in electrical and electronic environments. Featuring a structured design with parallel side-wall slots, it allows for seamless wire routing and easy installation within control panels and switchboards. Constructed from flame-retardant material, it ensures optimal protection and professional organization for complex cable systems.
Technical Specifications
Insulation Voltage
2,500 V
Max Insulation
Flammability Rating
UL-94-V0
- Max Service Temperature
- 550 °C
Design Features
Key Design Elements
- Integrated cover and bottom system
- Parallel slotted sidewalls for easy routing
- Warp-proof material construction
- Strong interlocking mechanism for secure assembly
Application Areas
- Common Applications
- Control PanelsSwitchboardsElectrical EnclosuresIndustrial Wiring
