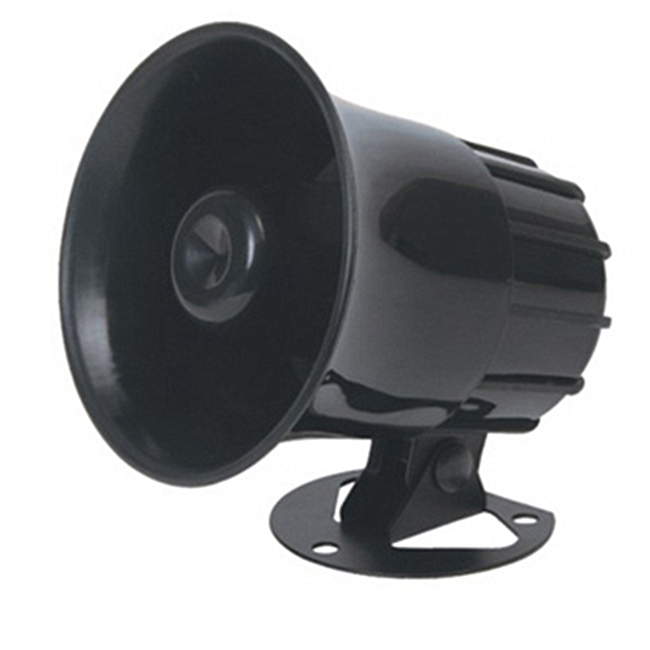

Six-Tone 4-Inch 15W/20W Vehicle Siren
This 4-inch vehicle siren provides a selectable six-tone output. It is available in 15W and 20W power configurations for automotive alarm systems.
Technical Specifications
Product Overview
High-Performance Vehicle Siren
This 4-inch electronic siren is a versatile security solution offering powerful 15W or 20W output. Designed for durability, it features an epoxy encapsulated housing that is fully weatherproof and pressure washable. With selectable single or six-tone options and multivoltage compatibility, it provides reliable audible signaling for a wide range of automotive and security applications.
Technical Performance
Power Output
15 W
Standard Power
20 W
Maximum Power
Available Tones
- Single Tone
- Six Tone
- Operating Voltage
- 12-24VDC Multivoltage
Physical Construction
Product Dimensions
| Dimension | Value (mm) |
|---|---|
| Width | 112 |
| Diameter | 102 |
| Depth | 106 |
- Horn Diameter
- 4 inch
- Housing Construction
- Epoxy encapsulated housing
Durability & Reliability
- Environmental Protection
- WeatherproofPressure WashableReverse Polarity Protected
- Operating Temperature
- -30°C to 77°C
Installation & Customization
Connection Options
- Wire lead connections
- Stud connections
- Custom Packaging
- Custom color box available for orders over 1000 pcs
Compliance & Support
Certifications
CERoHSREACH
- Warranty
- 12 Months
