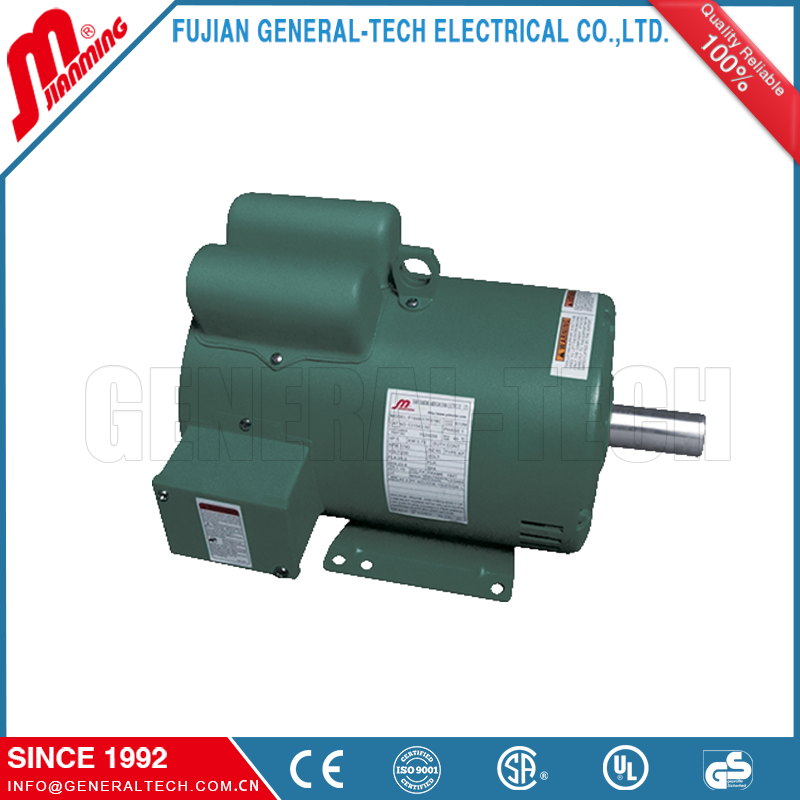

Single Phase Rolled Steel ODP Motor
These single-phase rolled steel Open Drip Proof (ODP) motors are designed for various industrial applications. The motors feature robust construction for durability and reliable operation in demanding environments.
Technical Specifications
Product Overview
High-Efficiency ODP Motor Series
This series of single-phase rolled steel Open Drip Proof (ODP) motors is engineered for reliability and high-performance in various industrial applications. Designed to meet international IEC and NEMA standards, these motors provide consistent power output suitable for pumps, compressors, and ventilation systems. With robust aluminum construction and multiple frame mounting options, they offer versatility and durability in demanding work environments.
Technical Specifications
Performance Metrics
0.18 kw
Min Output Power
18.5 kw
Max Output Power
380 V
Rated Voltage
Operating Parameters
| Parameter | Detail |
|---|---|
| Frequency | 50Hz/60Hz |
| Efficiency Class | IE2 |
| Poles | 2, 4, 6, 8, 10 |
| Insulation Class | Class B/F |
| Protection Class | IP44/IP54/IP55 |
Environmental Ratings
- Ambient temperature: -15°C to 40°C
- Altitude: Up to 1000 Meters
- Relative humidity: <= 85%
- Duty Cycle: Continuous (S1)
Compliance and Quality
- Certifications
- CECCCISO9001
Logistics and Ordering
- Minimum Order Quantity
- 20 Piece
- Delivery Time
- 15-25 days after payment
