Technical Specifications
Product Overview

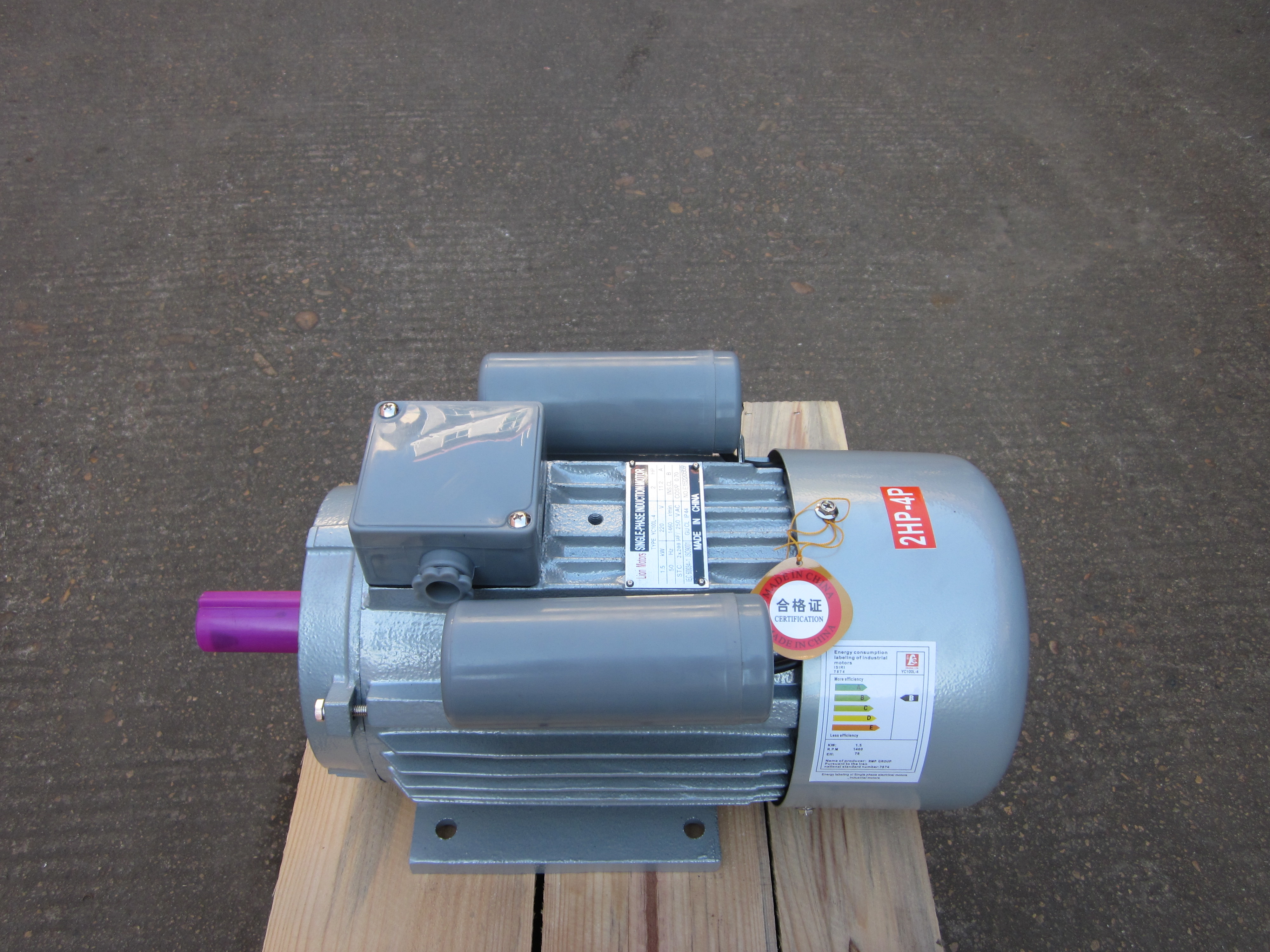

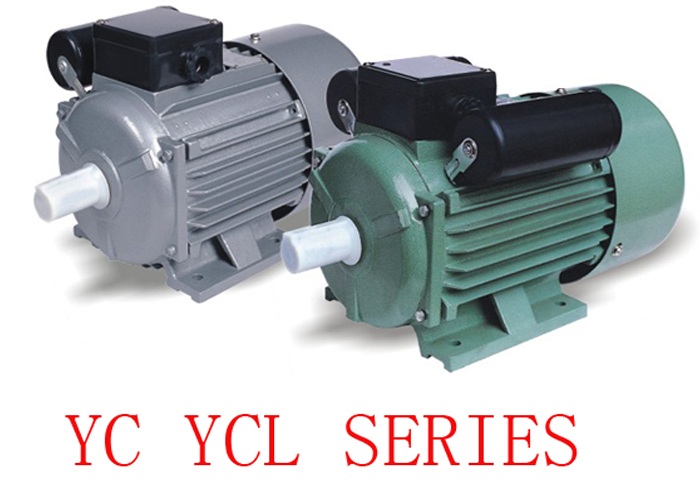

High-Performance Single-Phase Motors
These heavy-duty induction motors are specifically engineered for applications requiring reliable single-phase power, such as machine tools, water pumps, fans, and compressors. Designed to meet IEC standards, they feature robust construction, high starting torque, and excellent thermal efficiency for continuous operation. With a focus on low noise and compact design, these units are ideal for family workshops and professional industrial environments alike.
Technical Specifications
Power Rating
1.5 kW
Power Output
2 HP
Horsepower
Electrical Parameters
| Parameter | Value |
|---|---|
| Voltage | 220 V |
| Frequency | 50 Hz |
| Rated Current | 11.2 A |
| Power Factor (COSΦ) | 0.70 |
Performance & Build
Insulation Class
Class BClass F
- Rotational Speed
- 1460 r/min
- Protection Rating
- IP44
Compliance & Certification
- Standards & Certifications
- IEC 60034-1ISO 9001CE
