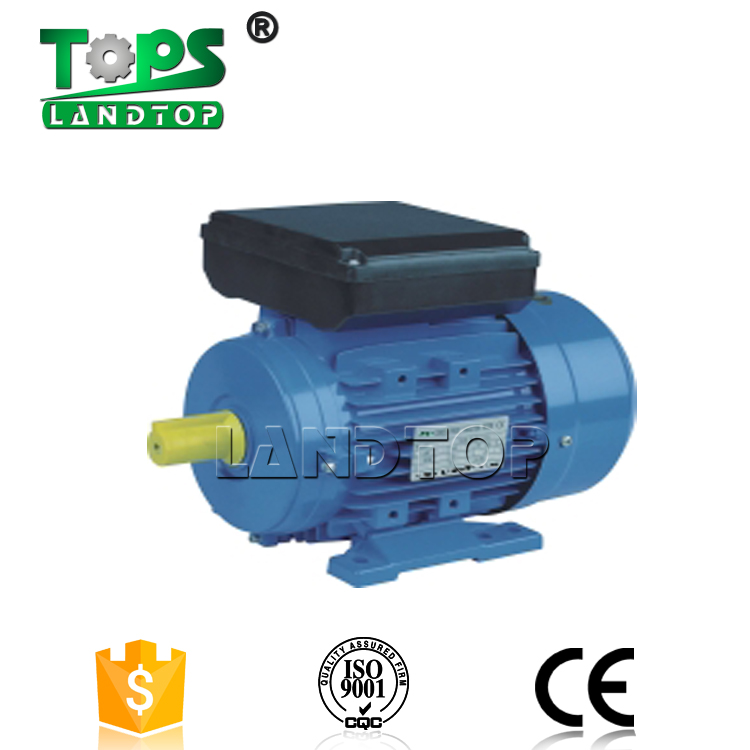

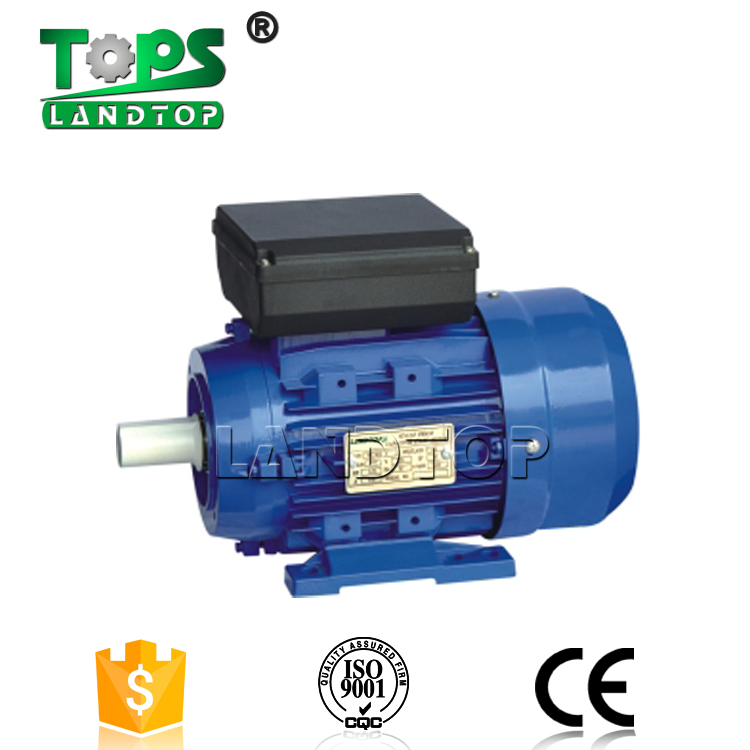

Single-Phase Aluminum Body Electric Motor
This single-phase electric motor features a lightweight aluminum body for enhanced heat dissipation. It is designed for applications needing high starting torque, such as air compressors and pumps.
Technical Specifications
Overview
High-Performance Aluminum Body Motor
The ML/MC/MY series single-phase electric motors are engineered for reliability and efficient operation across diverse industrial applications. Built with a lightweight aluminum body, these motors provide excellent heat dissipation and structural durability. They are specifically designed for machinery requiring high starting torque and superior overload capacity, making them an ideal choice for pumps, air compressors, fans, and medical apparatus.
Key Advantages
- Performance Benefits
- High PerformanceReliable OperationEasy MaintenanceLow NoiseLow VibrationLightweight Construction
Technical Specifications
Rated Frequency
- 50Hz
- 60Hz
Insulation Class
Class BClass F
Protection Class
IP44IP54IP55
- Rated Voltage
- 220V
- Duty Cycle
- Continuous (S1)
- Cooling Method
- IC0141
Operating Conditions
Ambient Temperature
-15 °C
Min Temp
40 °C
Max Temp
- Maximum Altitude
- 1000 m
Applications
Suitable Applications
- Air Compressors
- Water Pumps
- Industrial Fans
- Medical Apparatus
- Small Machinery
