Single-Cylinder Water-Cooled Diesel Engine ZR175
This single-cylinder diesel engine features water cooling for temperature regulation. It is a 4-stroke engine with a swirl combustion chamber.
Technical Specifications
Product Overview

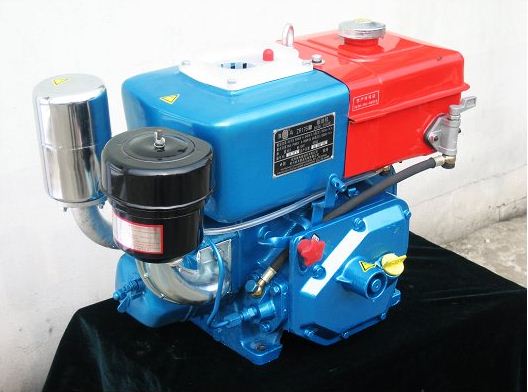

ZR175 Industrial Diesel Engine
The ZR175 is a robust single-cylinder, horizontal 4-stroke diesel engine engineered for reliable performance in demanding industrial and agricultural environments. Featuring an efficient water-cooling system, this unit maintains optimal operating temperatures even during continuous heavy-load tasks. Its compact design and versatile power output make it an ideal choice for powering small-to-medium machinery, including generators, irrigation pumps, and transport equipment.
Technical Specifications
Rated Power
5.15 kW
Power Output
2,600 r/min
Rated Speed
- Engine Configuration
- Single Cylinder, Horizontal, 4-Stroke
- Bore x Stroke
- 75 x 70 mm
- Total Displacement
- 0.309 L
- Combustion System
- Swirl Combustion Chamber
Operation & Features
Cooling Method
Water-Cooled
Typical Applications
- Power Generators
- Water Pump Sets
- Small Tractors
- Transport Tricycles
- Marine Machinery
- Starting Method
- Manual Hand CrankElectric Start
