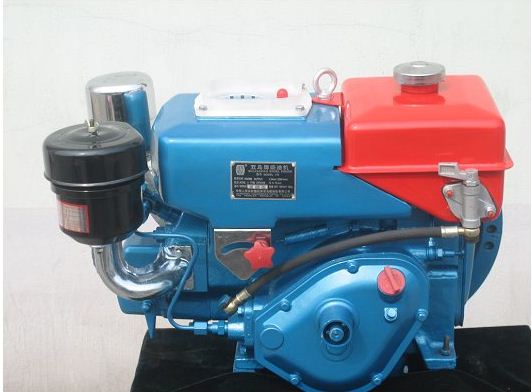

Single-Cylinder Water-Cooled Diesel Engine
This single-cylinder diesel engine is water-cooled for optimal temperature regulation. Its robust design ensures durability and efficient combustion for powering agricultural equipment, generators, and small machinery.
Technical Specifications
Overview
Industrial-Grade Diesel Power
This single-cylinder, horizontal 4-stroke diesel engine is engineered for reliable performance in agricultural and industrial machinery. Featuring an efficient water-cooled system and a swirl combustion chamber, it is designed for consistent operation under demanding conditions. Its compact build and durable construction make it an ideal choice for powering generators and small-scale mechanical equipment.
Technical Specifications
- Engine Type
- Single-cylinder, horizontal, 4-stroke
- Combustion System
- Swirl combustion chamber
- Bore × Stroke
- 70 × 75 mm
- Displacement
- 0.289 L
Performance
Key Performance Indicators
4.05 kW
Rated Power
2,600 r/min
Rated Speed
288.4 g/kW.h
Fuel Consumption
Physical Attributes
Weight and Dimensions
| Attribute | Value |
|---|---|
| Net Weight | 55 kg |
| Packaging Dimensions | 470 × 400 × 530 mm |
Features
Cooling System
Water-cooled
