Single-Cylinder Water-Cooled Diesel Engine
This single-cylinder, water-cooled diesel engine is designed for various applications. It features a compact design, robust construction, and reliable performance.
Technical Specifications
Product Overview
Robust Single-Cylinder Power Solution

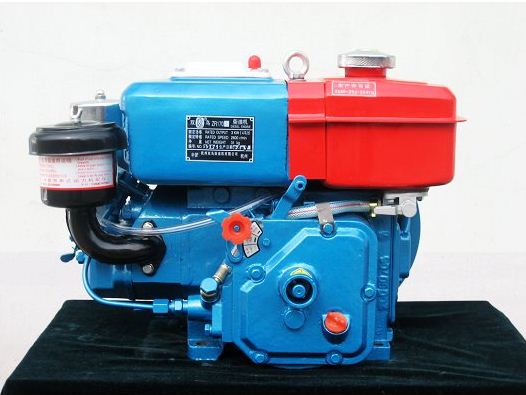

The ZR170 is a high-performance single-cylinder, horizontal, 4-stroke diesel engine engineered for reliability and durability. Featuring a water-cooling system and efficient swirl combustion chamber design, it provides consistent power for agricultural machinery, small generators, and industrial equipment. This compact unit is built for easy maintenance and long-term service life in demanding environments.
Technical Specifications
Performance Metrics
4.05 kW
Rated Output
2,600 RPM
Rated Speed
0.231 litres
Displacement
60 kg
Net Weight
Engine Configuration
- Model: ZR170
- Type: Single cylinder, horizontal, 4-stroke
- Combustion System: Swirl combustion chamber
- Cooling System: Water cooled
- Starting Method: Hand start
- Bore: 70 mm
- Stroke: 60 mm
Physical Dimensions
- Overall Dimensions
- 400 x 360 x 520 mm
