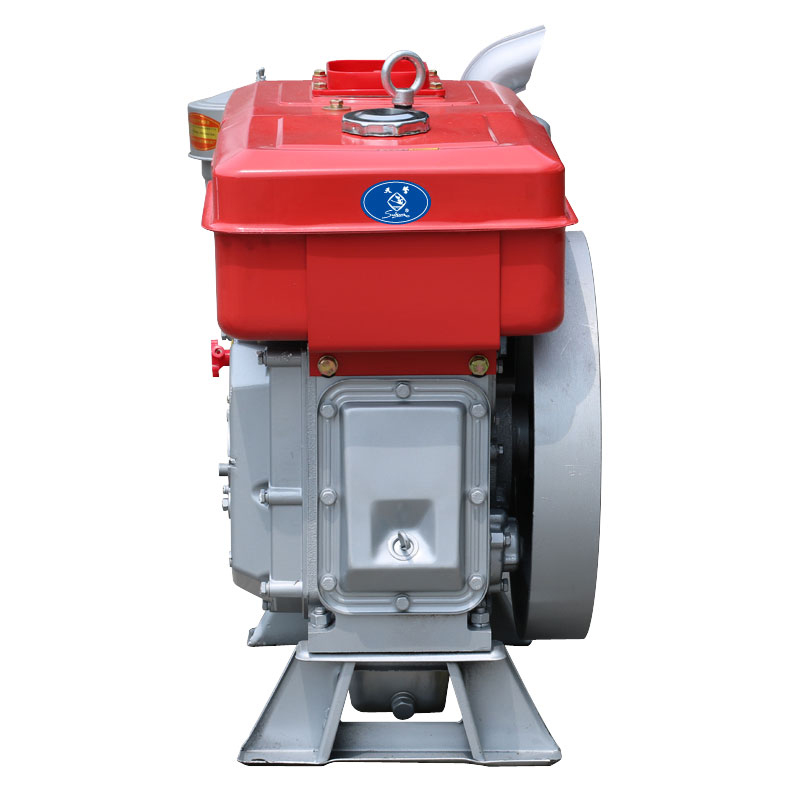

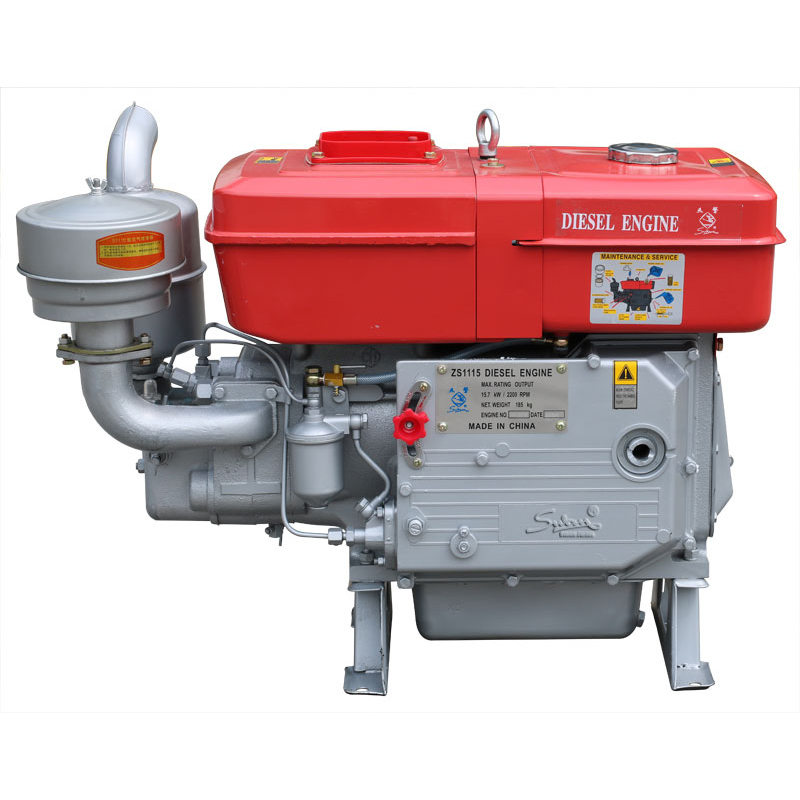

Single-Cylinder Diesel Engine 16 HP
This single-cylinder, horizontal diesel engine is designed for various applications, including power generation and agricultural machinery. It delivers a rated power output of approximately 16 horsepower at a rated speed of 2200 RPM.
Technical Specifications
Product Overview
Robust Single-Cylinder Diesel Power
This horizontal, four-stroke diesel engine is engineered for versatility and reliability in demanding agricultural and industrial environments. Featuring direct injection technology and a compact cast iron build, it provides efficient power delivery for machinery such as water pumps and generators. The engine balances durable construction with ease of maintenance, making it a dependable choice for stationary or mobile power requirements.
Technical Specifications
Performance Ratings
16.2 kW
1-Hour Rated Output
14.7 kW
12-Hour Rated Output
2,200 r/min
Rated Speed
Engine Dimensions & Bore
| Metric | Value |
|---|---|
| Bore x Stroke | 115 x 115 mm |
| Compression Ratio | 17:1 |
| Net Weight | 185 kg |
| Dimensions | 858 x 450 x 699 mm |
Operational Details
Efficiency Consumption
- Specific fuel consumption: ≤242.1 g/kW·h
- Specific lube oil consumption: ≤2.72 g/kW·h
- System Configuration
- Direct InjectionHopper Water-cooledHand Crank StartFlywheel End Output
