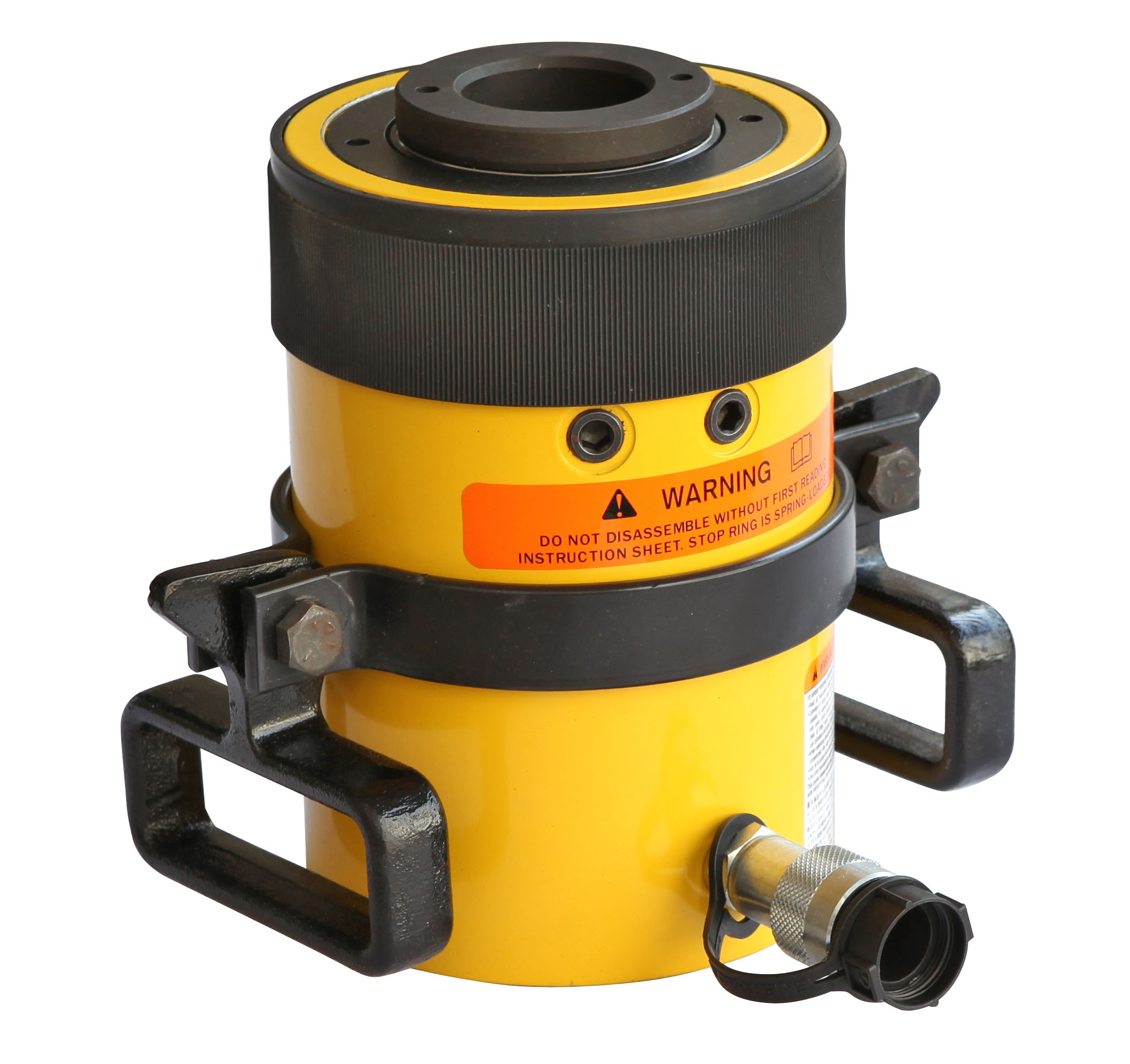

Single Acting Hollow Hydraulic Cylinder
This single-acting hollow hydraulic cylinder is designed for applications requiring controlled pushing and pulling forces. Featuring a hollow plunger, it allows for tensioning cables, pulling axles, or similar tasks.
Technical Specifications
Product Overview
Versatile Hollow Plunger Hydraulic Solution
The RCH-series hydraulic cylinder features a specialized hollow plunger design, engineered to deliver both push and pull forces for demanding industrial applications. This single-acting cylinder utilizes a spring-return mechanism for reliable and efficient operation. Its robust construction and collar threads ensure easy fixturing and long-term durability in professional work environments.
Key Features
- Highlighted Capabilities
- Hollow PlungerPush and Pull ForceSingle ActingSpring ReturnCollar Threading
Technical Specifications
Performance Metrics
12 T
Min Capacity
100 T
Max Capacity
155 mm
Max Lifting Height
79 mm
Max Hollow Diameter
Model Comparison Table
| Model | Capacity (T) | Lifting H (mm) | Weight (kg) |
|---|---|---|---|
| RCH-120 | 12 | 8 | 1.5 |
| RCH-121 | 12 | 42 | 2.8 |
| RCH-206 | 20 | 155 | 14.1 |
| RCH-606 | 60 | 153 | 35.4 |
| RCH-1003 | 100 | 70 | 63 |
