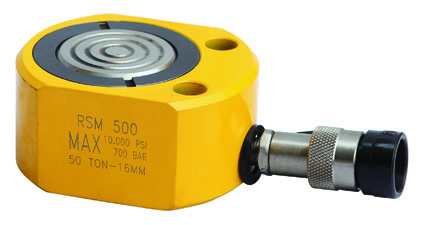

Flat Low Height Hydraulic Cylinder
This flat low height cylinder is a compact and powerful hydraulic cylinder designed for applications with limited space. Its flat design allows it to fit into tight areas and generate significant force for lifting, pushing, or pressing operations.
Technical Specifications
Product Overview
Compact Hydraulic Lifting Solution
The RSM-Series flat low height hydraulic cylinder is engineered for high-performance lifting, pushing, and pressing in space-constrained industrial environments. Featuring a robust, compact design with an integrated handle for portability, this single-acting cylinder provides efficient operation with a spring return mechanism. It is available in a versatile range of capacities from 5T to 200T to suit various professional mechanical requirements.
Performance Metrics
Key Performance Indicators
700 BAR
Maximum Pressure
10,000 PSI
Maximum Pressure
200 T
Max Capacity
Operational Features
Standard Features
- Compact flat profile for restricted spaces
- Single-acting spring return mechanism
- Integrated carrying handle
- High-capacity industrial construction
Technical Specifications
Technical Data Table
| Model | Capacity | Lifting H (mm) | Weight (kg) |
|---|---|---|---|
| RSM-50 | 5T | 6 | 1 |
| RSM-100 | 10T | 12 | 1.4 |
| RSM-200 | 20T | 11 | 3.1 |
| RSM-300 | 30T | 13 | 4.5 |
| RSM-500 | 50T | 16 | 6.8 |
| RSM-750 | 75T | 16 | 11.3 |
| RSM-1000 | 100T | 16 | 14.5 |
| RSM-1500 | 150T | 16 | 26.3 |
| RSM-2000 | 200T | 30 | 51 |
