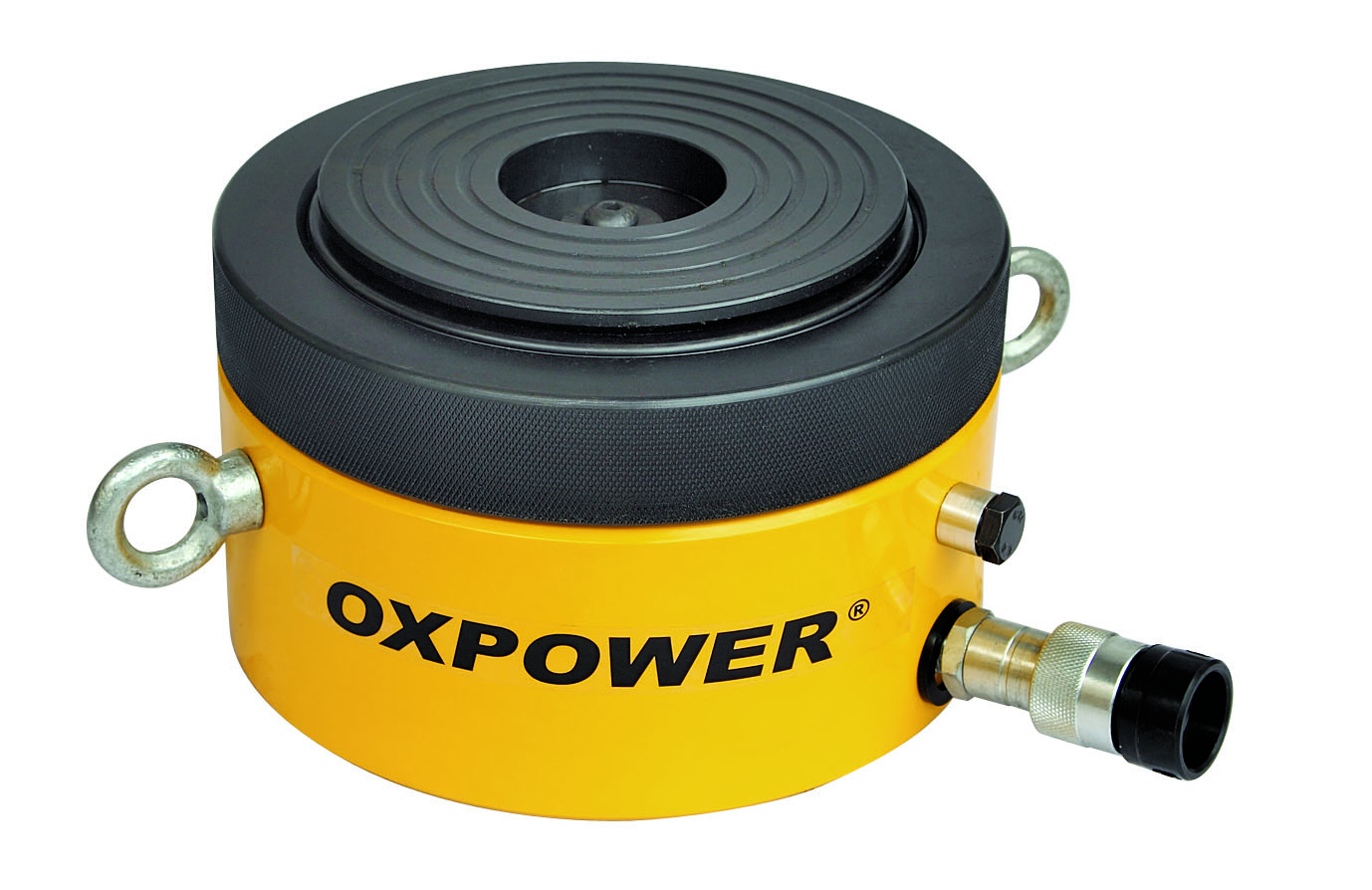

Short Package Locknut Hydraulic Cylinder
This short package locknut hydraulic cylinder is designed for lifting and supporting heavy loads in confined spaces. The cylinder features a safety lock nut for mechanical load holding and an overflow port that functions as a stroke limiter.
Technical Specifications
Product Overview
Compact Hydraulic Precision
The Short Package Locknut Hydraulic Cylinder is engineered for heavy-duty lifting and load holding in extremely confined spaces where standard jacks cannot fit. Featuring a single-acting gravity return design, it incorporates a mechanical locknut mechanism that ensures absolute safety when holding loads for extended periods. The unit is built with a specialized bearing system capable of withstanding up to 3% eccentric load and includes an integrated overstroke protection valve for enhanced operational safety.
Technical Specifications
- Cylinder Type
- Single-acting, gravity return
- Eccentric Load Tolerance
- 3 %
- Safety Features
- Mechanical LocknutOverstroke ProtectionGravity Return
Performance Data
Model Specifications
| Model | Capacity (T) | Stroke (mm) | Min Height (mm) | Weight (kg) |
|---|---|---|---|---|
| CLP-602 | 60 | 50 | 125 | 15 |
| CLP-1002 | 100 | 50 | 137 | 26 |
| CLP-1602 | 160 | 45 | 148 | 44 |
| CLP-2002 | 200 | 45 | 155 | 57 |
| CLP-2502 | 260 | 45 | 159 | 74 |
| CLP-4002 | 400 | 45 | 178 | 134 |
| CLP-5002 | 520 | 45 | 192 | 189 |
