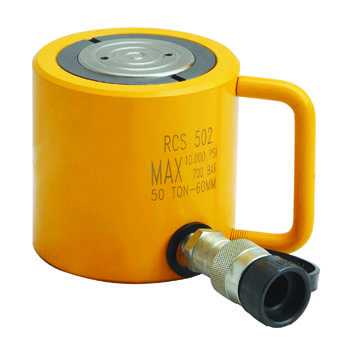

Short Hydraulic Cylinder
This short hydraulic cylinder is designed for use in confined spaces. It delivers high force output with a short stroke length and is suitable for lifting, pushing, and spreading applications.
Technical Specifications
Product Overview
Compact Power for Confined Spaces
The RCS-Series short hydraulic cylinder is engineered for maximum performance in restricted environments. Featuring a lightweight and low-profile design, it is an ideal solution for precision equipment maintenance, disassembly, and heavy-duty lifting. Its robust construction ensures reliable force delivery, while the grooved plunger and threaded mounting options for tilt saddles provide versatile operational control.
Performance Metrics
Performance Capabilities
50 T
Maximum Capacity
700 BAR
Operating Pressure
60 mm
Stroke Length
Technical Specifications
Model Specifications
| Model | Capacity (T) | Stroke (mm) | Min H (mm) | Weight (kg) |
|---|---|---|---|---|
| RCS-51 | 5 | 24 | 67 | 0.98 |
| RCS-101 | 10 | 38 | 88 | 4.1 |
| RCS-201 | 20 | 45 | 90 | 5 |
| RCS-302 | 30 | 62 | 117 | 6.8 |
| RCS-502 | 50 | 60 | 122 | 10.9 |
| IRCS-1002 | 100 | 57 | 141 | 22.7 |
| RCS-1502 | 150 | 51 | 162 | 38 |
Features
- Key Features
- Low ProfileConfined Space DesignGrooved PlungerTilt Saddle ReadyHigh Force Output
