Shale Gas Power Generation System, 12 MW
This gas power generation system is a core component for shale gas development, enabling powered drilling. The system includes six 2000kW power modules, offering low noise, low emissions, rapid transportation, and precise control to meet shale gas development needs.

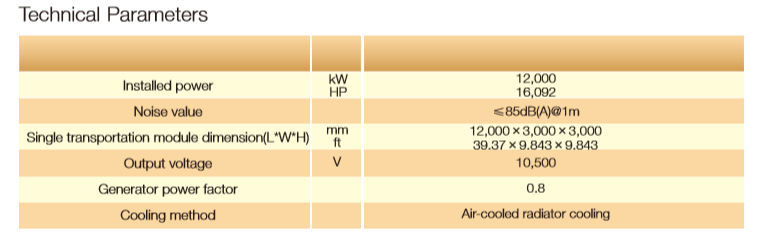

Technical Specifications
Overview
High-Efficiency Shale Gas Power Generation
This 12 MW gas power generation system is engineered specifically for the dynamic demands of shale gas development sites. The system utilizes a modular design composed of six 2000kW power units, ensuring reliable power supply for extraction and processing operations. Key features include low noise emissions, rapid transportability, and precise control capabilities to optimize performance in challenging field environments.
Performance Metrics
Total Installed Power
12,000 kW
Installed Power
16,092 HP
Installed Power
- Noise Level
- ≤85dB(A)@1m
- Generator Power Factor
- 0.8
- Output Voltage
- 10500 V
- Cooling Method
- Air-cooled radiator cooling
Transportation & Logistics
Single Module Dimensions (L x W x H)
| Metric | Value |
|---|---|
| Metric (mm) | 12,000 x 3,000 x 3,000 |
| Imperial (ft) | 39.37 x 9.843 x 9.843 |
System Features
System Composition
- 6 units of 2000kW power modules
- Containerized design
- Integrated exhaust systems
- Integrated cooling fans
- Gas storage tanks
- Interconnected piping
- Key Attributes
- Low NoiseLow EmissionsFast TransportationPrecise ControlModular DesignScalable
