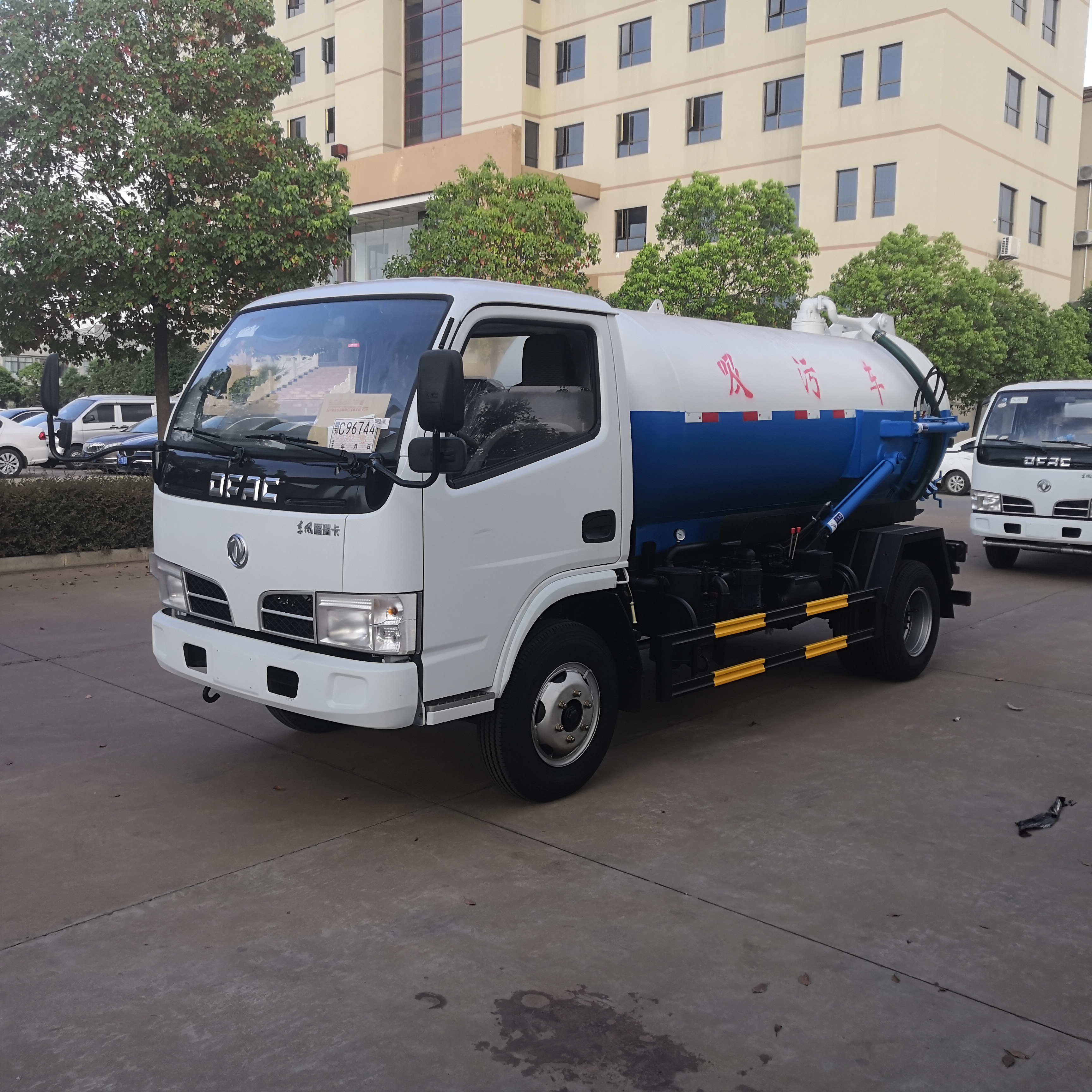

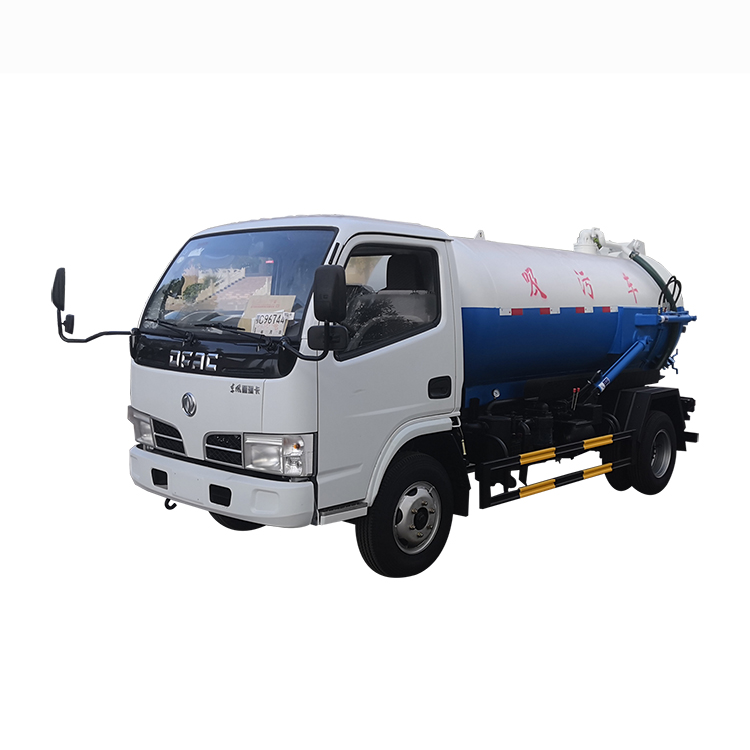

Sewage Suction Truck for Waste Management
This specialized vehicle is designed for the efficient collection and transportation of sewage and wastewater. It features a robust vacuum system for powerful suction, a durable tank for secure containment, and a hydraulic discharge system for controlled emptying.
Technical Specifications
Product Overview
Efficient Sewage Management Solution
This specialized sewage suction truck is engineered for high-performance wastewater collection and municipal sanitation tasks. Featuring a robust Dongfeng-based chassis and a reliable vacuum system, it offers a 1.95CBM capacity ideal for urban and industrial environments. The vehicle combines a compact 3300mm wheelbase with powerful performance, ensuring maneuverability in tight spaces while maintaining high operational efficiency for waste management professionals.
Performance Metrics
Performance Highlights
73 kW
Rated Power
95 km/h
Max Speed
1.95 CBM
Tank Capacity
Technical Specifications
Chassis Dimensions
| Parameter | Value |
|---|---|
| Overall Dimensions | 6600 x 2100 x 2950 mm |
| Wheelbase | 3300 mm |
| Front/Rear Track | 1506 / 1466 mm |
| Front/Rear Overhang | 1032 / 1663 mm |
Weight Capacities
- Gross Weight: 4495 kg
- Payload: 1490 kg
- Curb Weight: 2810 kg
- Axle Load: 1800/2695 kg
Engine & Drivetrain
Engine Details
- Displacement: 3825 CC
- Emission Level: Euro 4
- Leaf Spring Configuration: 8/9+5
Safety & Features
- Safety & Compliance
- ABSEuro 4 CompliantMulti-color Options
