Self-Propelled Concrete Laser Screed
This self-propelled concrete laser screed levels concrete surfaces with precision. Its laser-guided system ensures accurate height and slope control for consistent concrete distribution.
Technical Specifications
Overview
High-Performance Concrete Laser Screed

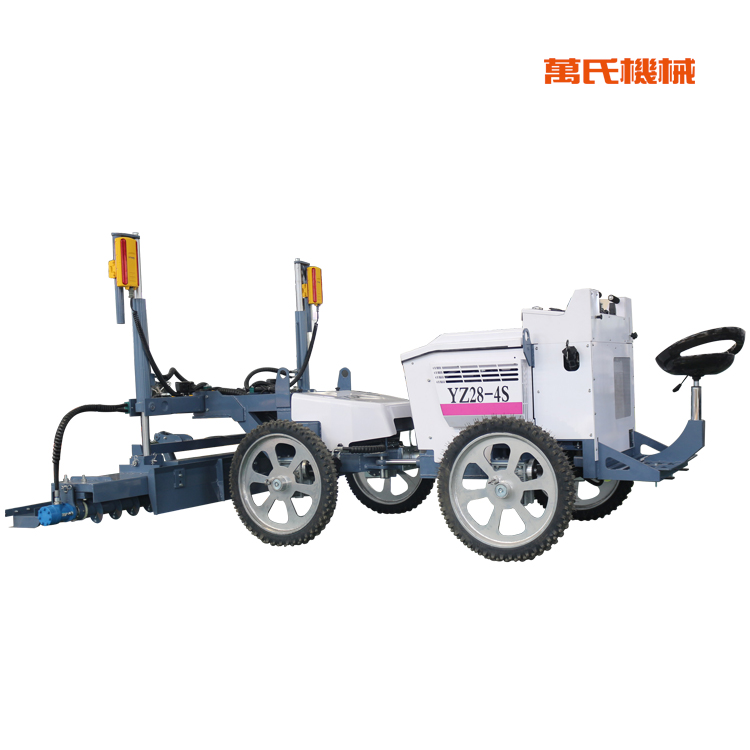

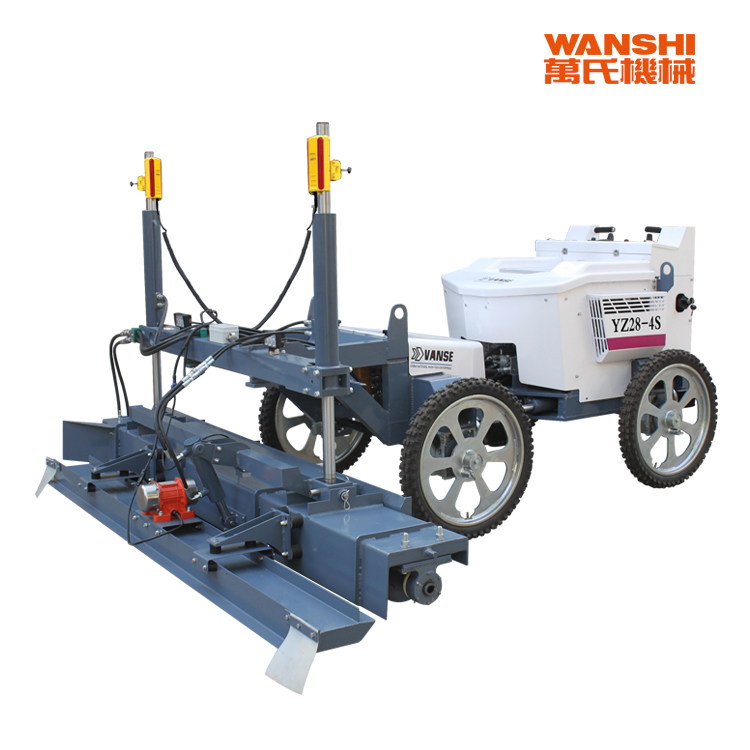

This self-propelled, four-wheel laser screed is designed for high-precision concrete floor construction. It utilizes an integrated self-leveling head to plow, level, and consolidate concrete in a single automated move, ensuring superior flatness and density. With its advanced laser-guided system and robust hydraulic drive, this machine significantly improves efficiency and reduces labor requirements for large-scale flooring projects.
- Key Features
- Self-LevelingLaser-GuidedFour-Wheel DriveAutomated ConsolidationPuncture-Proof Tires
Technical Specifications
Performance Metrics
18.4 kW
Power Output
2.8 m
Screed Width
810 kg
Net Weight
- Dimensions
- 3100 x 1950 x 2000 mm
Performance & Control
Operating Capabilities
| Parameter | Value |
|---|---|
| Paving Thickness | 5-30 cm |
| Working Speed | 4 m/min |
| Walking Speed | 0-55 m/min |
Laser Control System
Flat SurfaceSlopeDouble SlopeMicrocomputer Scanning
Applications
Indoor Applications
- Workshops
- Manufacturing Plants
- Warehouses
- Logistics Centers
- Conference & Exhibition Centers
- Building Floors
Outdoor Applications
- Docks
- Bridges
- Container Yards
- Storage Yards
- Airfield Runways
- Parking Lots
- Municipal Roads
