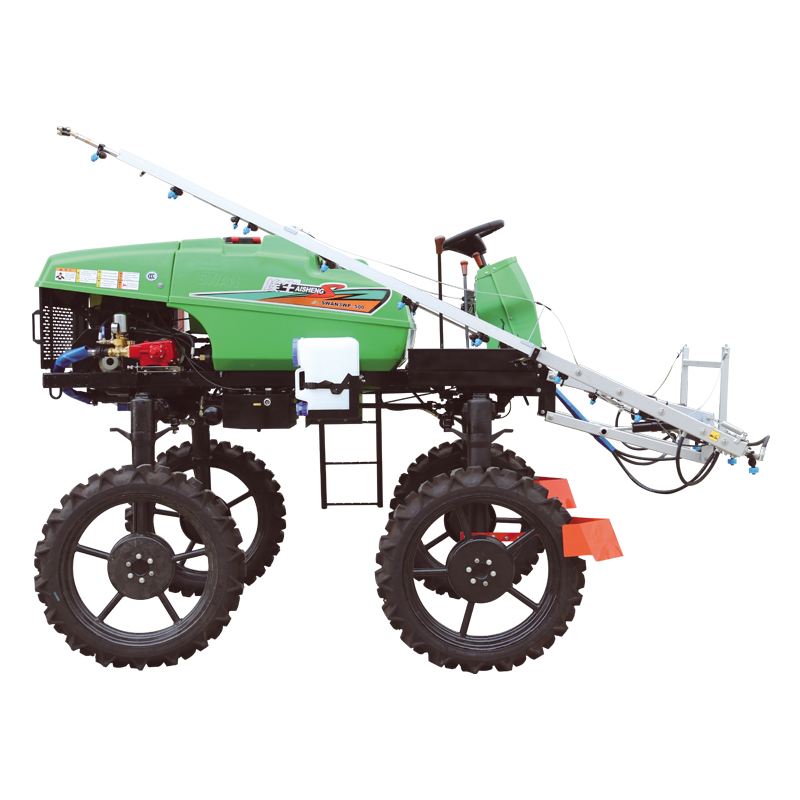

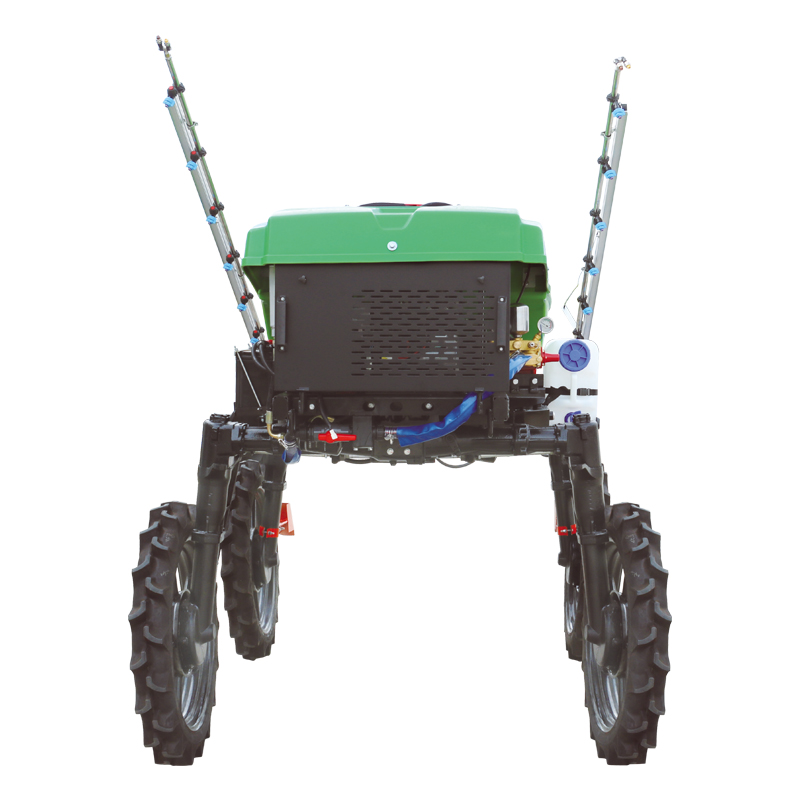

Self-Propelled Boom Sprayer with 500-Liter Tank
This self-propelled boom sprayer is designed for agricultural applications. It features a robust chassis, high-flotation tires and a boom system for efficient and uniform application of liquids.
Technical Specifications
Overview
High-Efficiency Self-Propelled Boom Sprayer
The SWAN3WP-500 is a professional-grade self-propelled boom sprayer designed for precision agricultural applications. Equipped with a robust diesel engine and a 500-liter pesticide tank, it offers exceptional maneuverability through 4WD and 4WS systems. Its automated boom control and high-clearance design ensure uniform coverage and reliable operation across diverse field conditions.
Performance Metrics
Core Specifications
500 L
Tank Capacity
13 m
Spraying Width
1,100 mm
Effective Clearance
17.1 KW
Rated Power
Technical Dimensions
Physical Dimensions
| Attribute | Value | Unit |
|---|---|---|
| Length | 3,400 | mm |
| Width | 1,850 | mm |
| Height | 2,460 | mm |
| Weight | 880 | kg |
Engine & Drive
Engine Details
- Type: 3-cylinder, 4-stroke, vertical diesel engine
- Displacement: 0.904 L
- Rated Speed: 3600 rpm
- Fuel Tank: 20 L
- Starter: Electric
Moving System
- Drive Features
- 4WD4WSHST TransmissionWet Multi-Disc Brake
Spray System
Spray Characteristics
- Pump: 3-Cylinder Piston Pump
- Max Pressure: 1.5 MPa
- Spray Width: 13m (including side nozzles)
- Nozzle Count: 21 conical + 4 side nozzles
- Nozzle Height: 460-1390 mm
