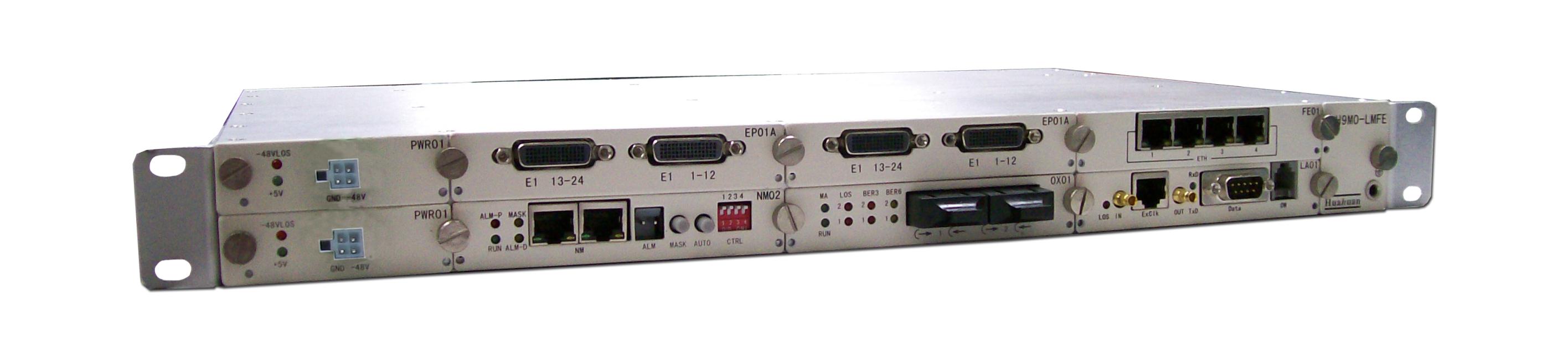

SDH/MSPP Multiplexer
The SDH/MSPP multiplexer is a carrier-class, cost-effective platform that is designed for application in metro and access networks. The multiplexer facilitates the efficient transport of traditional TDM and emerging data traffic for service providers.
Technical Specifications
Overview
High-Performance SDH/MSPP Multiplexer
This versatile SDH/MSPP multiplexer is designed for robust telecommunications infrastructure, supporting transmission rates up to STM-16. It offers sophisticated service aggregation capabilities, including Ethernet over SDH and E1, and features a large cross-connect matrix for flexible network configuration. With integrated testing tools and multiple clock synchronization options, this device ensures reliable service delivery in demanding network environments.
Technical Specifications
Cross-Connect Matrix Capacity
- 96*VC-4 VC-4 level full cross connection
- 32*VC-4 VC-12 or VC-3 level full cross connection
- Supported Transmission
- Up to STM-16
- Clock Synchronization
- Internal ClockExternal ClockLine ClockClock Holdover
Service Capabilities
Aggregation Capabilities
32 sites
Remote Sites (Ethernet over 8*E1)
132 sites
Remote Sites (Ethernet over 1*E1)
32 channels
Ethernet over SDH Aggregation
- Ethernet Service Features
- GFP EncapsulationVC12 Virtual ConcatenationLCASP VLAN801.1Q VLAN
Hardware & Interfaces
Physical Interface Overview
| Interface Type | Configuration |
|---|---|
| E1 Interfaces | E1 1-12, E1 13-24 |
| Ethernet Ports | ETH 1-4 |
| Power Inputs | -48V and +5V |
| Monitoring Ports | NM, ALM, Data, RxD, TxD, ExClk |
- Management Channels
- DCCE1VC12
- Integrated Testing
- Yes
