Schuko Power Socket with Dual USB Charging Ports
This Schuko power socket features two integrated USB ports for charging devices. It provides a 3.1A output and is rated for 16A, suitable for standard power connections.
Technical Specifications
Product Overview
Integrated Power & USB Charging

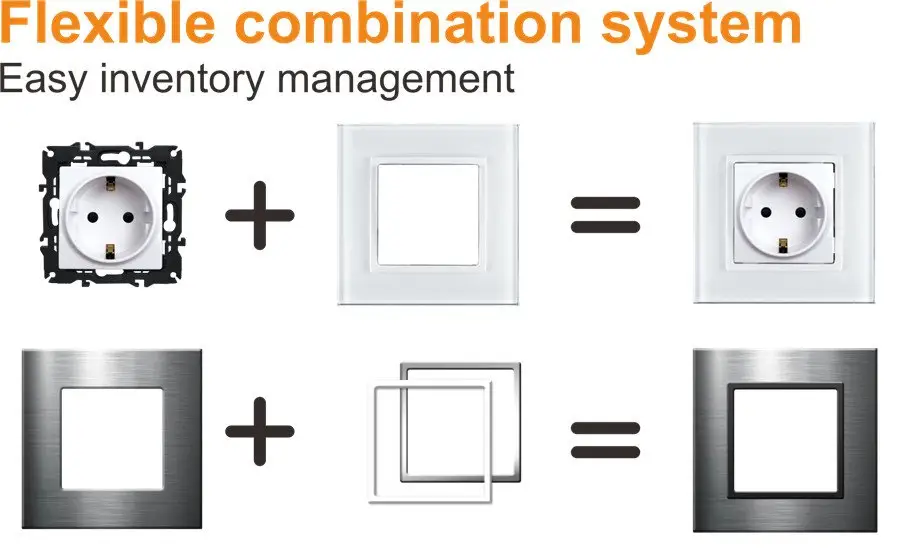

This Schuko power socket combines a standard 16A electrical outlet with dual USB charging ports providing a 3.1A total output. Designed for convenience and safety, it features a child-proof shutter and fire-resistant polycarbonate housing. The modular S81 series design allows for versatile installations and seamless integration into residential or commercial interior finishes.
Electrical Specifications
Electrical Parameters
250 V
Voltage
16 A
Socket Current
3.1 A
USB Output
Mechanical & Design
Material Composition
- Polycarbonate (PC) Centre Plate
- Polycarbonate (PC) Casing
- Fire-resistant housing (850°C)

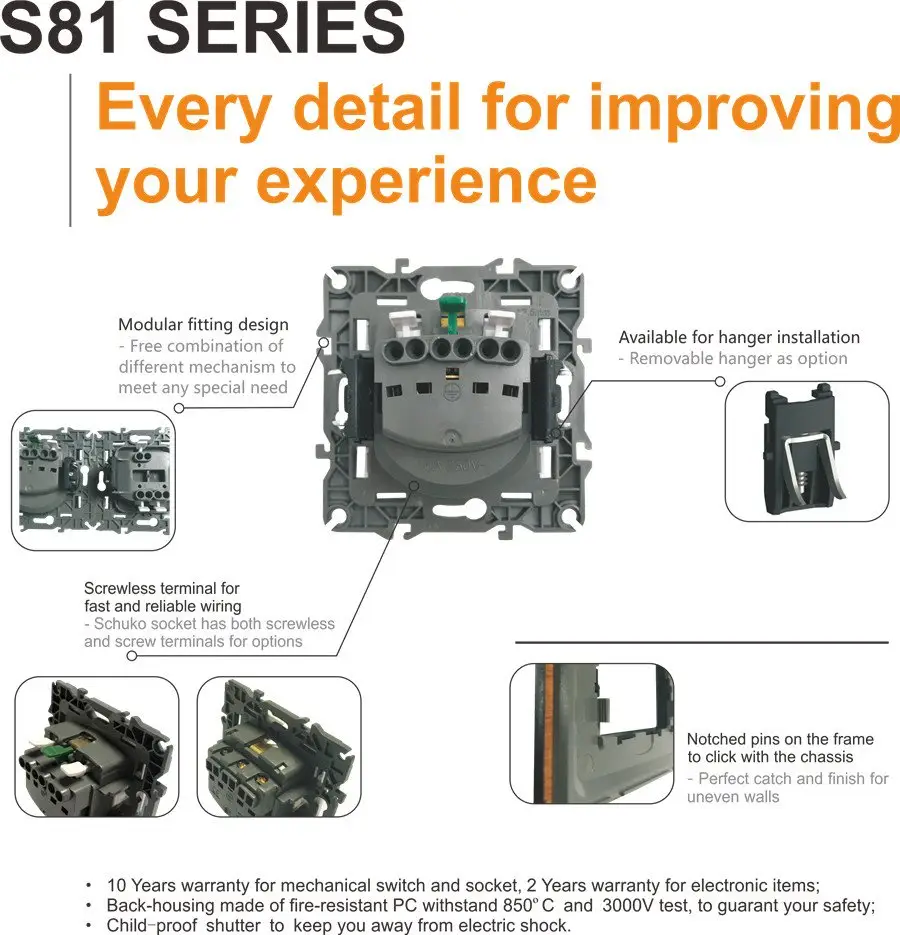

- Design Features
- Modular DesignGlossy FinishChild-proof ShutterScrew Terminals

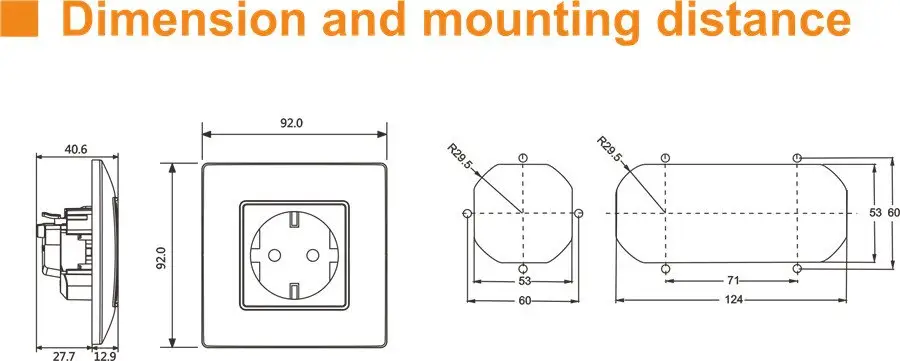

Compatibility & Installation
Installation Parameters
| Parameter | Specification |
|---|---|
| Fixing Mode | Screws and claws |
| Clamping Capacity | 1.5 - 2.5 mm² |
| Temperature (Storage) | -20 to 60 °C |
| Temperature (Operation) | -5 to 40 °C |
Safety & Protection
Protection Systems
Short-circuit ProtectionBattery Charge ProtectionOverload ProtectionThermal Protection
