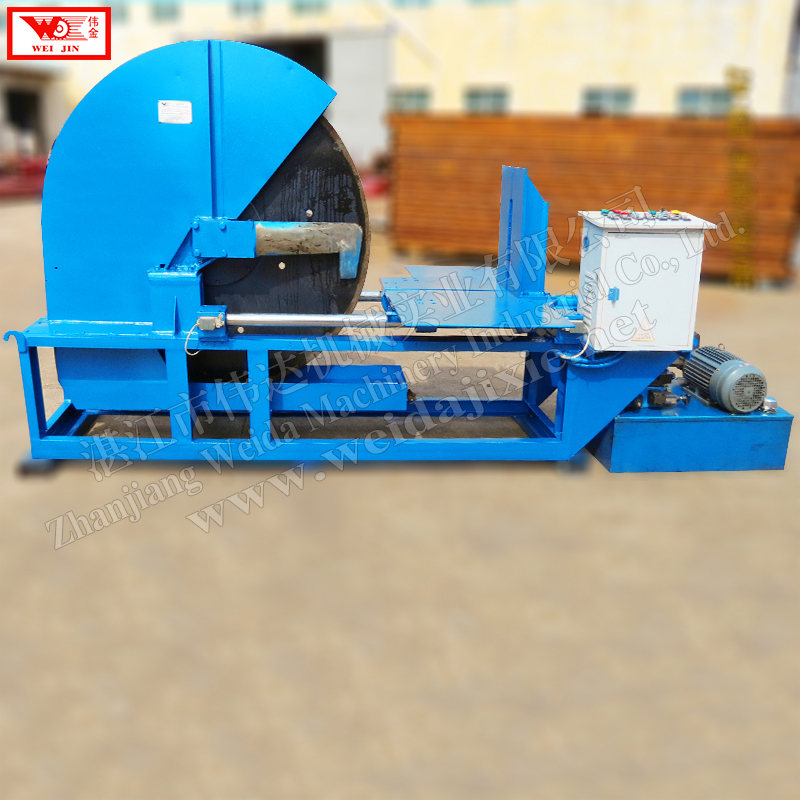

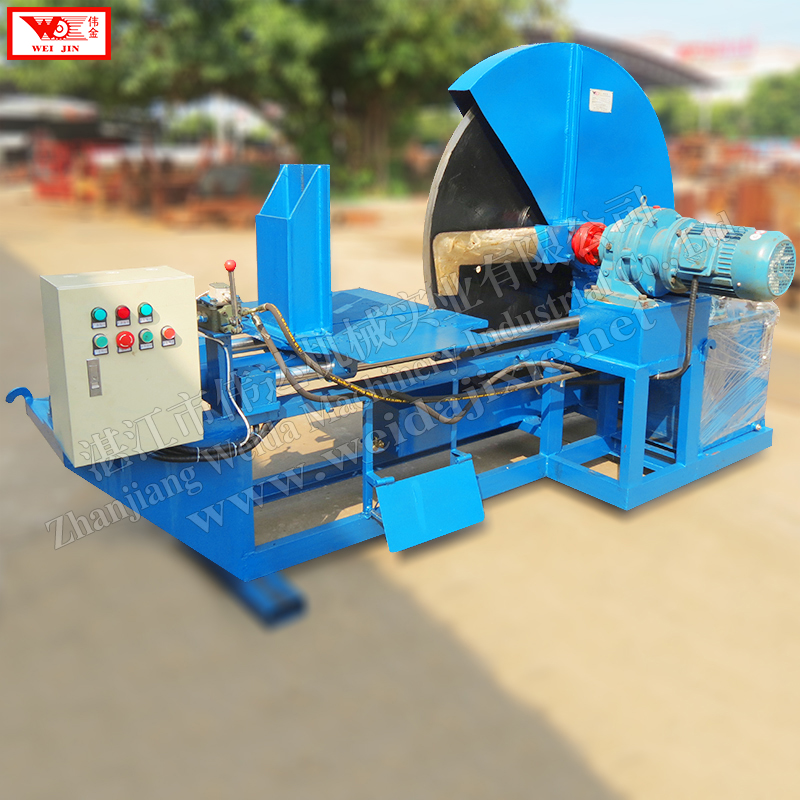

Rubber Block Cutting Machine with Rotating Disc
This rotating-disc type cutting machine is designed for processing natural, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller pieces, slices, granules, or strips.
Technical Specifications
Product Overview
High-Efficiency Rotating Disc Cutting Machine
This rotating-disc cutting machine is engineered for precision processing of various rubber types, including natural, compound, reclaimed, and synthetic rubber. Its versatile design allows for cutting materials into blocks, slices, granules, or bars with high consistency. Built for industrial demands, the machine features a robust frame and hydraulic control for reliable operation and long service life.
Technical Specifications
Capacity by Model
| Model | Capacity |
|---|---|
| WQJ-1000 | 2 t/h |
| WQJ-1300 | 3 t/h |
- Blade Diameter Options
- 1000mm1300mm
- Rotational Speed
- 50 r/min
- Total Power
- 6.2 kW (4 + 2.2 kW)
- Working Pressure
- 5 Mpa
Key Features
Output Forms
- Blocks
- Slices
- Granules
- Bars
- Material Compatibility
- Natural RubberCompound RubberReclaimed RubberSynthetic RubberPlastic
