Technical Specifications
Product Overview

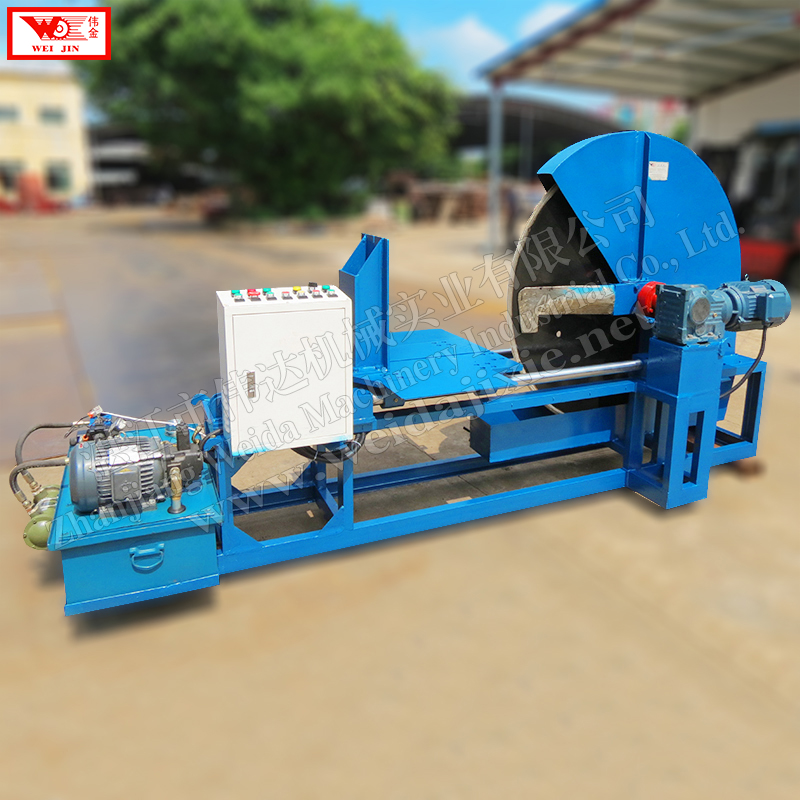

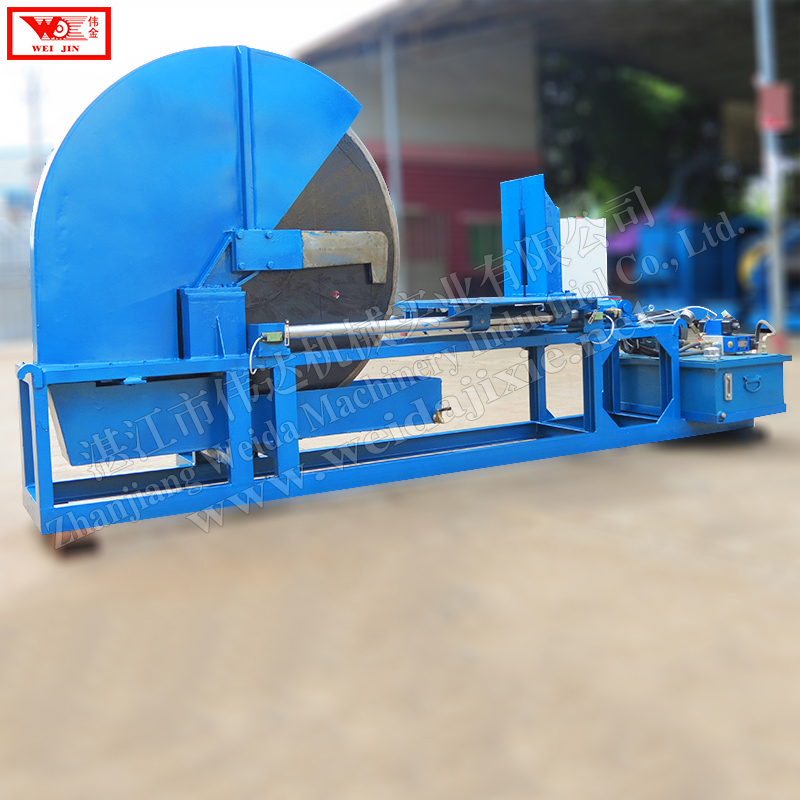

Rotating-Disc Rubber Cutting Machine

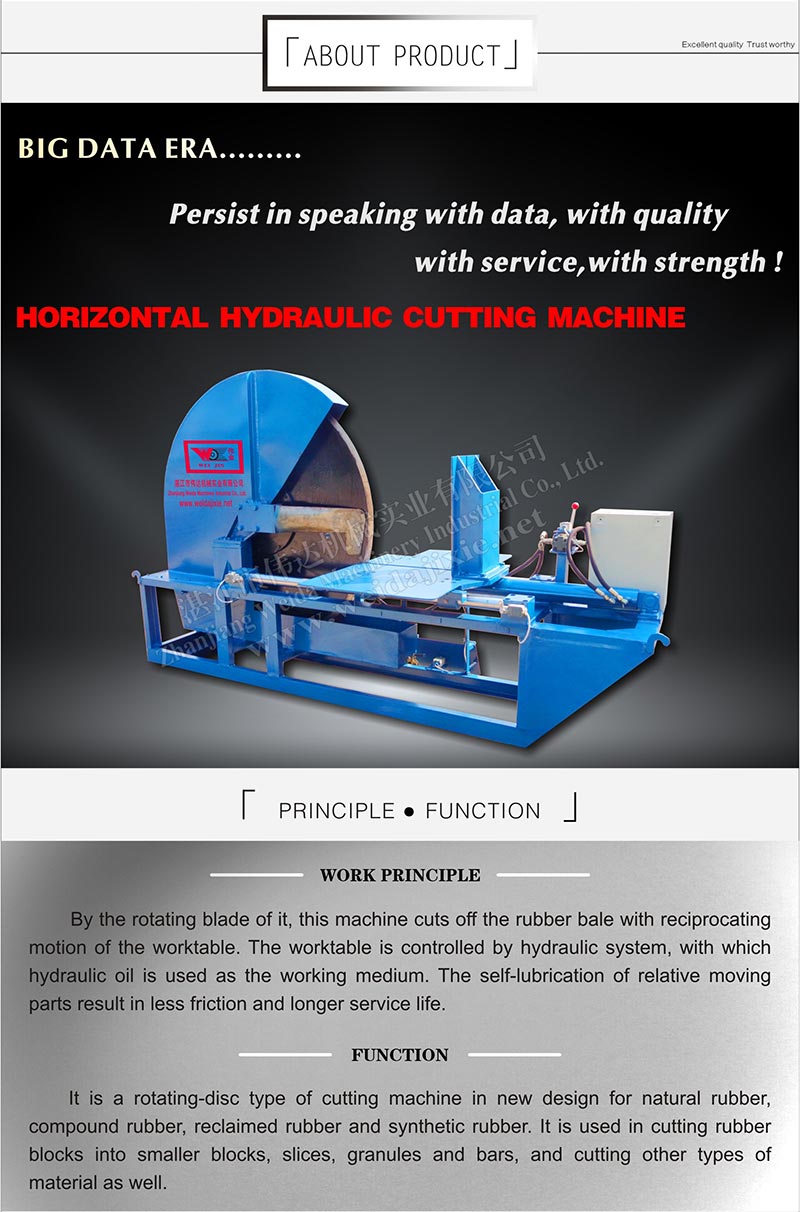

This industrial cutting machine is specifically engineered for the precise processing of natural, synthetic, compound, and reclaimed rubber blocks. Its rotating-disc design enables efficient conversion of large rubber bales into blocks, slices, granules, or strips with consistent quality. Built for reliability and durability, the equipment features a hydraulic system that ensures smooth operation, reduces friction in moving parts, and extends service life.
Technical Specifications
Performance Data
| Specification | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
- Drive System
- Hydraulic system with reciprocating worktable motion
- Cutting Mechanism
- Rotating-disc blade
Operational Features
- Supported Materials
- Natural RubberSynthetic RubberCompound RubberReclaimed Rubber
- Output Forms
- BlocksSlicesGranulesBars
