Rotating Disc Rubber Cutting Machine
This rotating-disc type cutting machine is designed for processing natural, compound, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller pieces like blocks, slices, granules, and bars, and can also process other materials.
Technical Specifications
Product Overview
High-Efficiency Rotating Disc Rubber Cutter
This rotating-disc type cutting machine is a versatile solution designed for processing natural, compound, reclaimed, and synthetic rubber. It efficiently reduces large rubber blocks into smaller blocks, slices, granules, or bars with high precision and minimal manual intervention. Engineered for industrial durability, it features a hydraulic system that ensures smooth reciprocating motion and long service life through self-lubricating components.
Technical Specifications
Model Specifications
| Parameter | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Production Capacity | 2t/h | 3t/h |
| Rotational Speed | 50r/min | 50r/min |
| Power Requirement | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
Performance Metrics
Key Performance Metrics
Material Compatibility
- Supported Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic RubberGeneral Elastic Materials
Output Capabilities

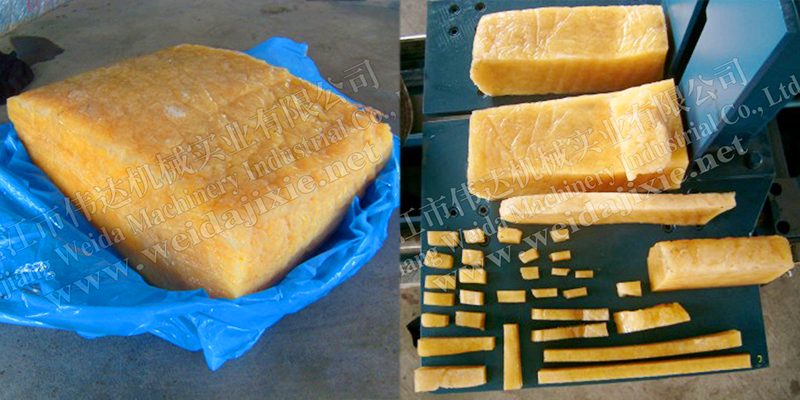

Available Output Shapes
- Blocks
- Slices
- Granules
- Bars/Stripes
Design & Construction

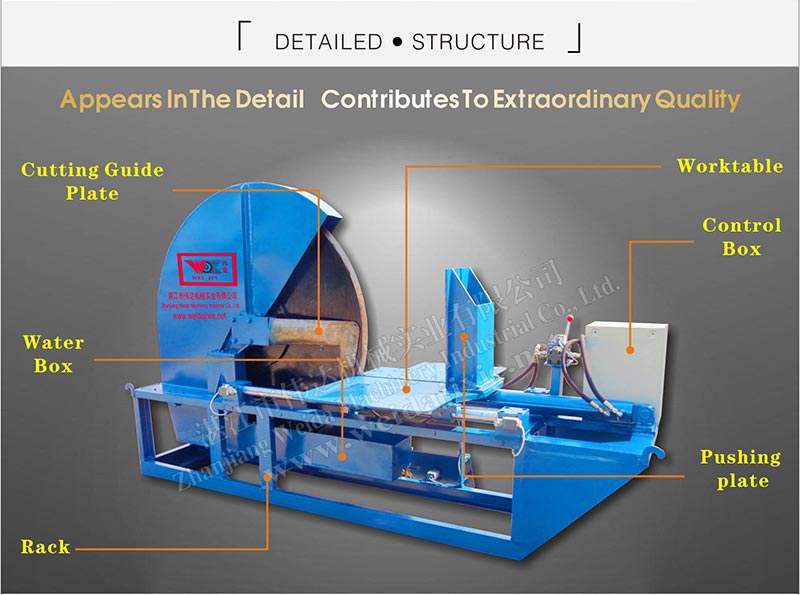

Machine Components
- Rotating Blade System
- Hydraulic Reciprocating Worktable
- Cutting Guide Plate
- Pushing Plate
- Integrated Water Box
- Robust Support Rack
- Centralized Control Box
Operational Features
Operational Advantages
Installation & Service
Setup and Support
The machine is delivered as a complete unit and requires floor fixing and electrical connection as per the manual. It features a 1-year warranty on the structure and equipment. After-sales support includes technical feedback within 12 hours for any operational queries or repair planning.
