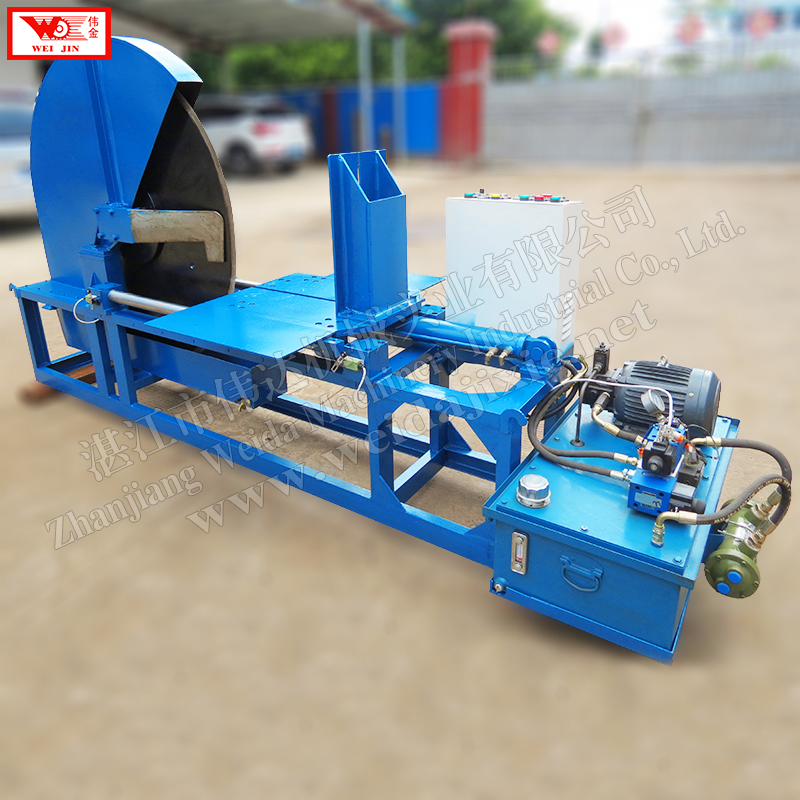

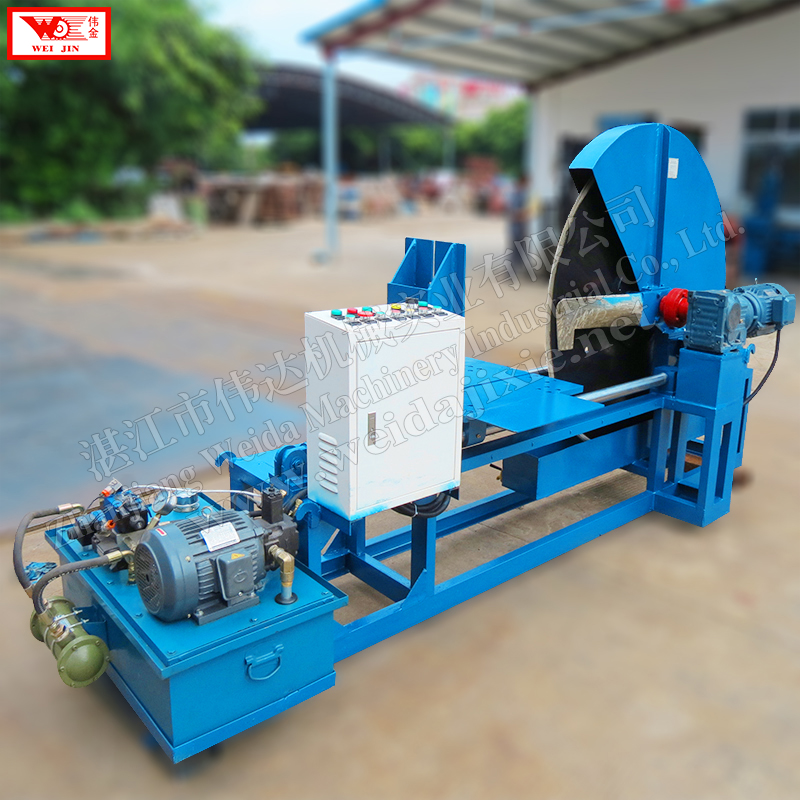

Rubber Bale Cutting Machine
This rotating-disc type cutting machine is designed for processing natural, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller blocks, slices, granules, and bars.
Technical Specifications
Product Overview
Industrial Rubber Bale Cutting Solution

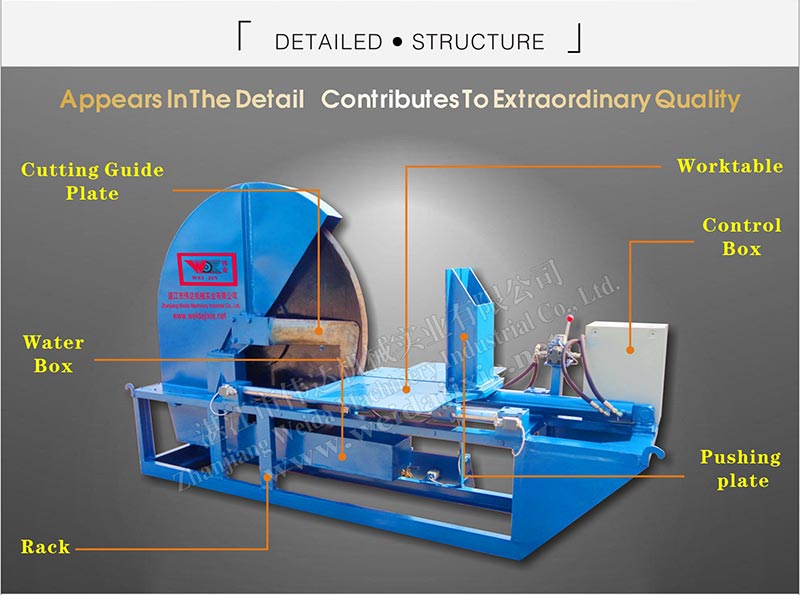

This rotating-disc cutting machine is engineered for the high-precision processing of various rubber types, including natural, synthetic, compound, and reclaimed rubber. It effectively reduces large rubber bales into manageable blocks, slices, granules, or bars to optimize downstream production. Designed for industrial longevity, the machine features a robust hydraulic system and self-lubricating components to minimize friction and ensure consistent performance.
Technical Specifications
Model Specifications
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power Rating | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
Product Features

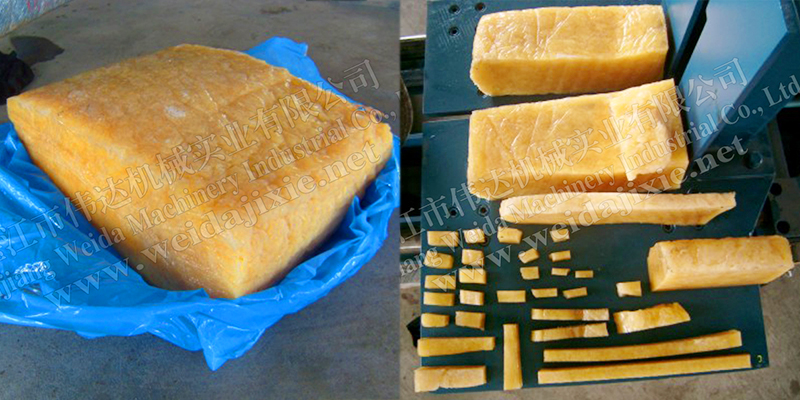

Output Forms
- Blocks
- Slices
- Granules
- Bars
- Compatible Materials
- Natural RubberSynthetic RubberCompound RubberReclaimed RubberPlastic
Performance Metrics
Key Performance Metrics
50 r/min
Blade Speed
5 Mpa
Operating Pressure
