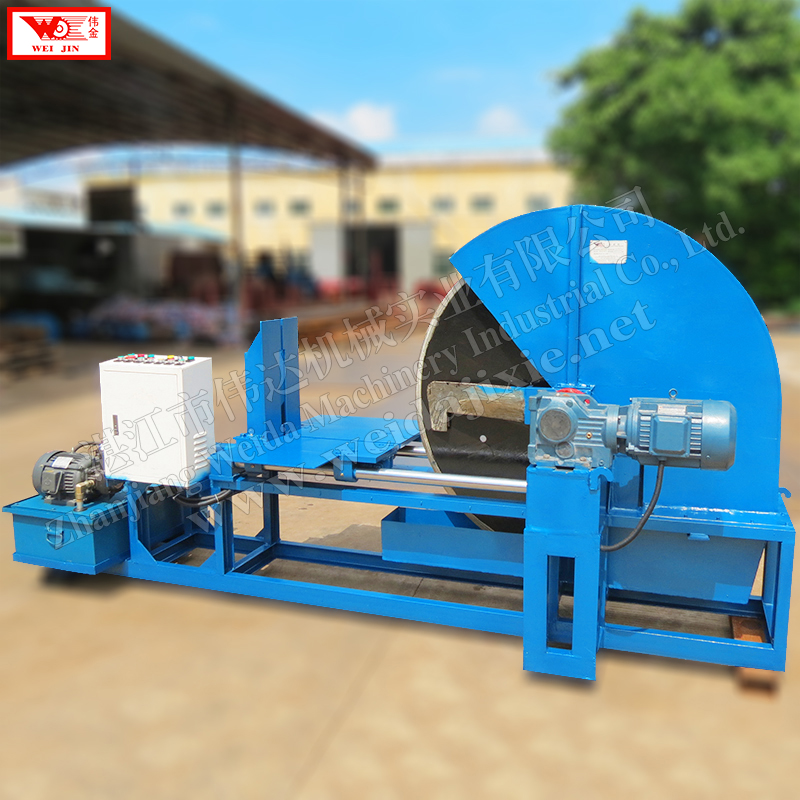

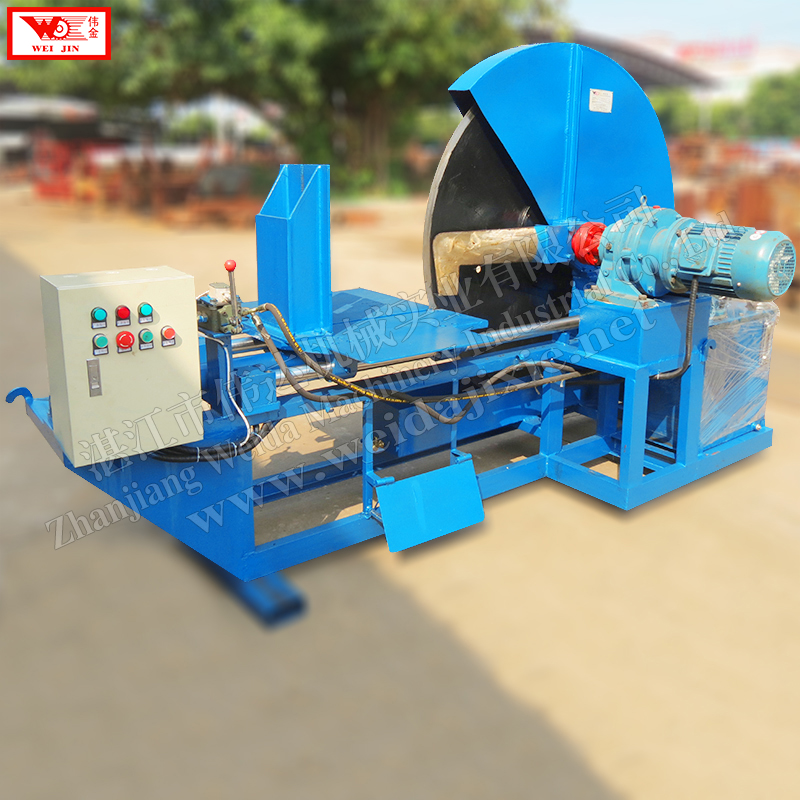

Rubber Block Cutting Machine with Rotating Disc
This rotating-disc machine efficiently cuts rubber blocks into various shapes. It processes natural, compound, reclaimed, and synthetic rubber, producing slices, granules, and bars.
Technical Specifications
Overview
High-Efficiency Rubber Cutting Solution

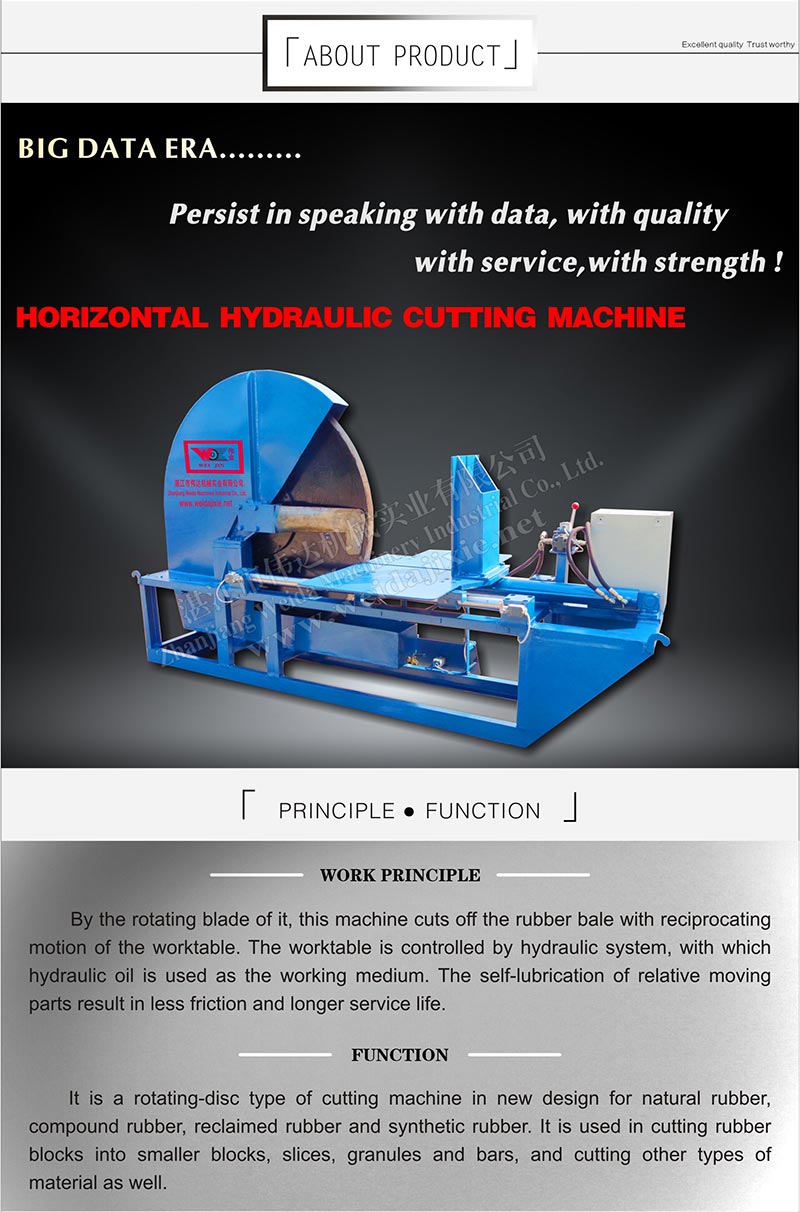

This rotating-disc cutting machine is designed for the precise processing of various rubber materials, including natural, compound, reclaimed, and synthetic rubber. Engineered for versatility, it efficiently cuts rubber blocks into smaller blocks, slices, granules, and bars, making it an essential tool for rubber manufacturing. The machine features a robust hydraulic system and a rotating blade design that ensures consistent, well-distributed cuts while optimizing production throughput.
Technical Specifications
Model Specifications
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Blade Speed | 50 r/min | 50 r/min |
| Power | 4+2.2 kw | 4+2.2 kw |
| Working Pressure | 5 MPa | 5 MPa |
| Production Capacity | 2 t/h | 3 t/h |
Key Features
Output Shapes
- Blocks
- Slices
- Granules
- Bars
Design Highlights

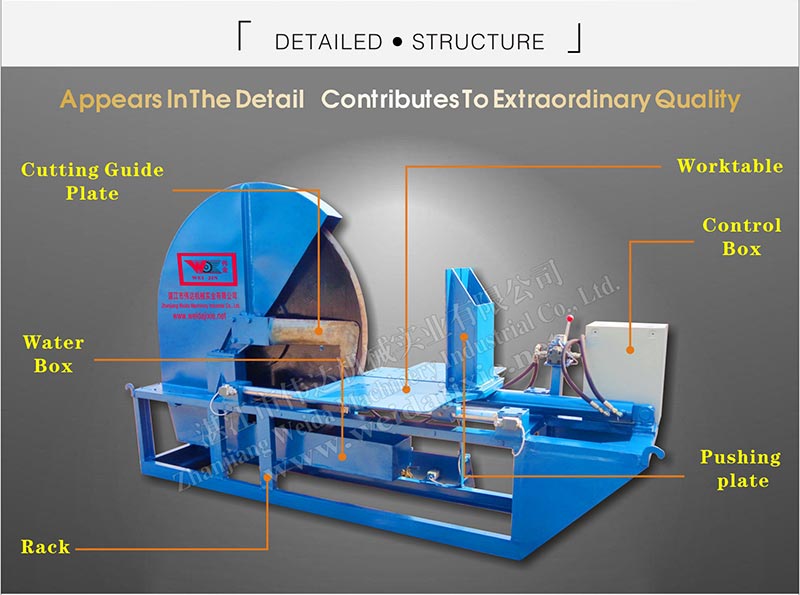

Rotating Disc DesignHydraulic SystemSelf-Lubricating Moving PartsReciprocating Worktable
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
