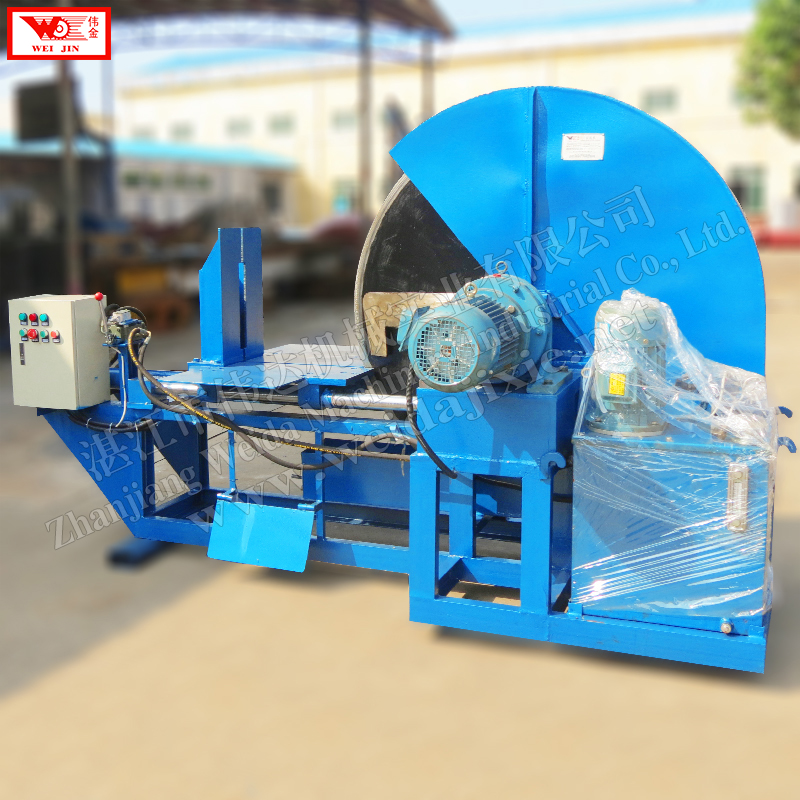

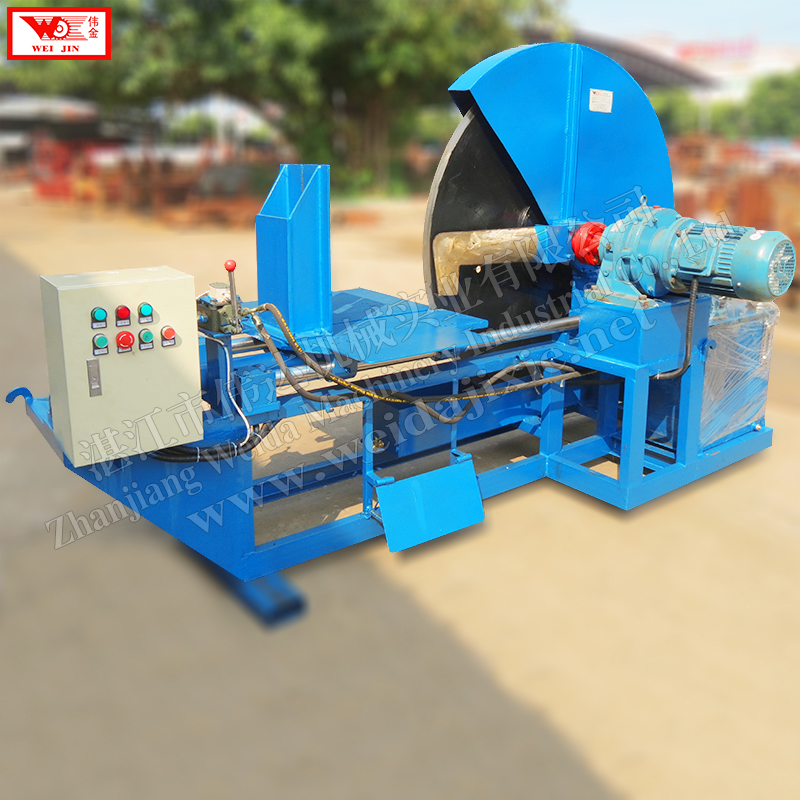

Rubber Block Cutting Machine with Rotary Disc

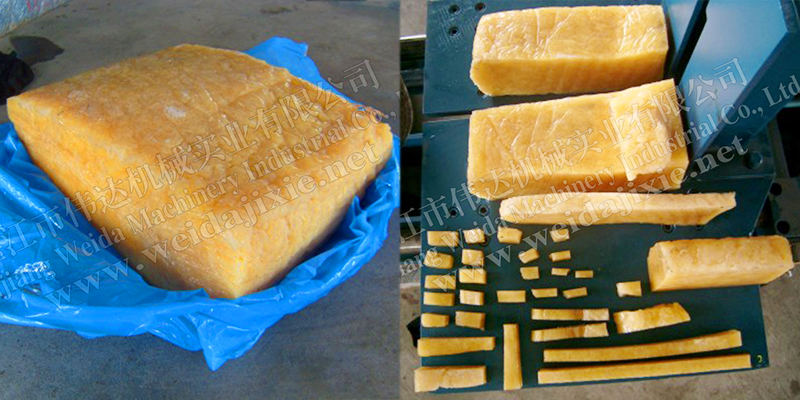

This rotating-disc type cutting machine is designed for processing natural, reclaimed, compound, and synthetic rubber. It cuts rubber blocks into slices, granules, bars, and smaller blocks, and can also process other materials.
Technical Specifications
Overview
High-Efficiency Rubber Cutting Solution
This rotating-disc cutting machine is designed for the efficient processing of natural, compound, reclaimed, and synthetic rubber. It features a robust hydraulic system and a reciprocating worktable to deliver clean, precise cuts into blocks, slices, granules, or bars. Engineered for durability and high performance, this equipment helps optimize material usage and increase production efficiency in industrial rubber processing environments.
Technical Specifications
Technical Specifications
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
Key Features
Operational Design
- Rotating-disc cutting mechanism
- Reciprocating worktable motion
- Hydraulic system operation
- Self-lubricating moving parts
- Cutting Capabilities
- BlocksSlicesGranulesBars
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
