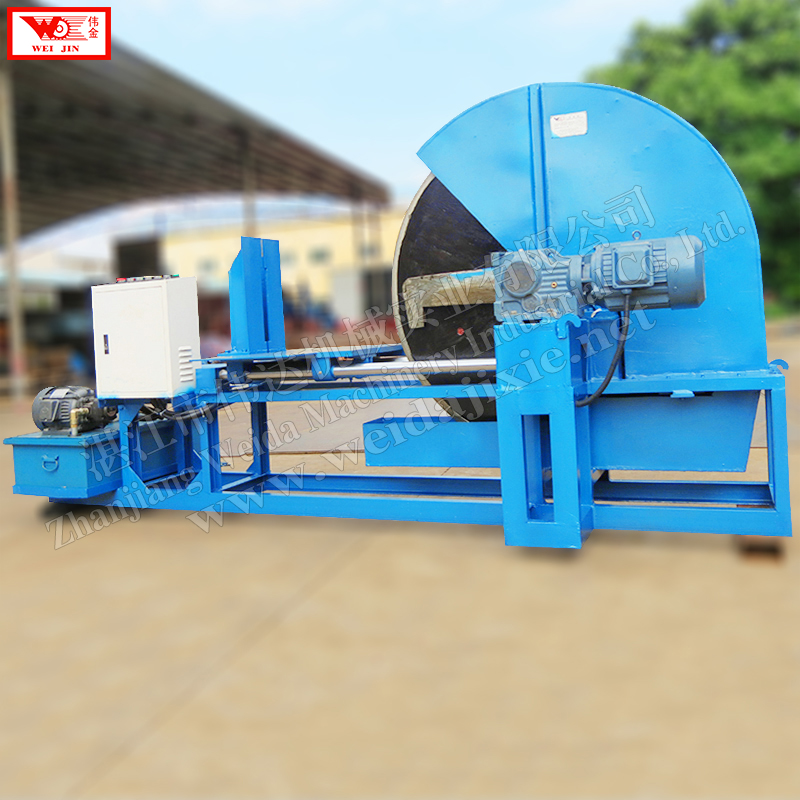

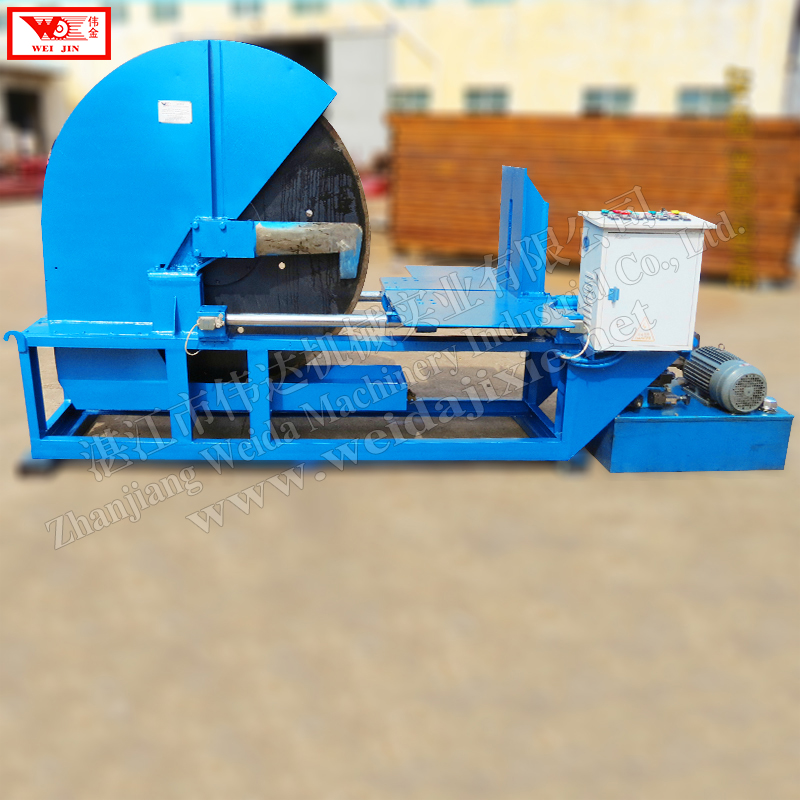

Rubber Block Cutting Machine with Rotary Disc
This rotating-disc cutting machine is designed for processing natural, synthetic, and reclaimed rubber. It cuts rubber blocks into slices, granules, and bars.
Technical Specifications
Overview
High-Efficiency Rotary Rubber Cutter
This rotating-disc cutting machine is engineered for the precision processing of natural, compound, reclaimed, and synthetic rubber. Its advanced design allows for versatile material preparation, enabling the output of rubber in various forms including blocks, slices, granules, and bars. Featuring a robust hydraulic system and optimized blade movement, the machine delivers consistent, high-capacity performance for modern rubber manufacturing facilities.
Technical Specifications
Model Comparison Table
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
Operational Features

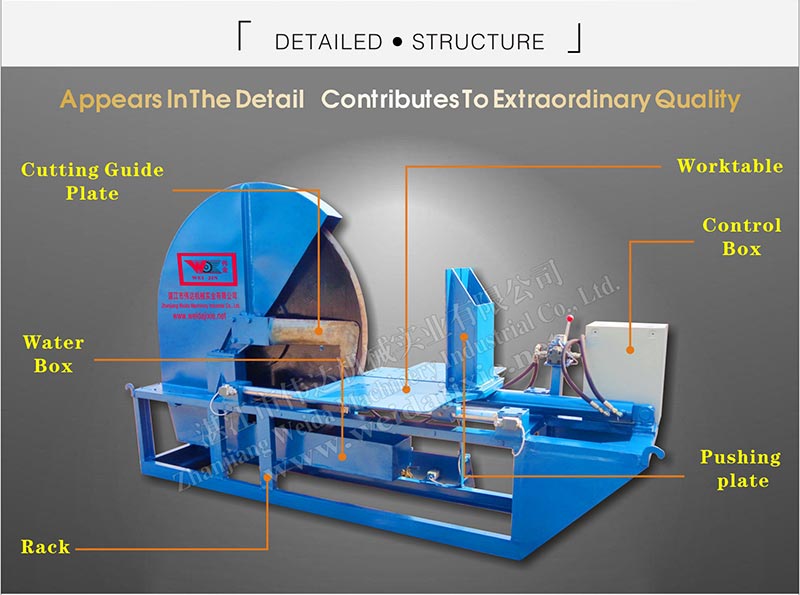

Mechanical Design Benefits
- Rotating-disc blade for uniform cutting
- Hydraulic-controlled worktable for precise material advancement
- Self-lubricating moving parts to reduce friction and extend service life
- Integrated cooling and lubrication water box

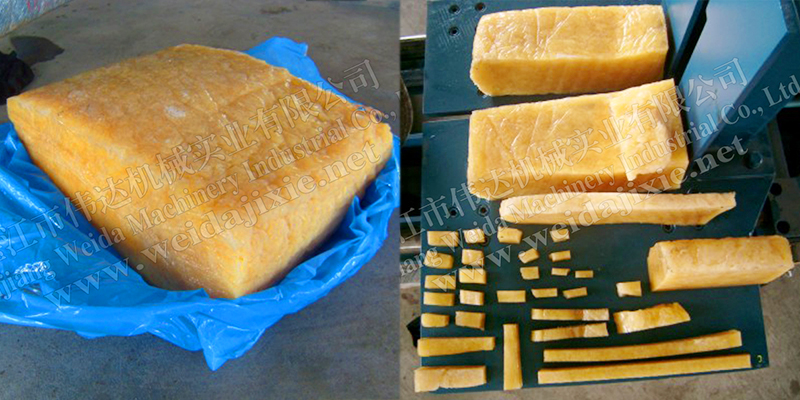

- Cutting Capabilities
- BlocksSlicesGranulesBars
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
Key Metrics
Key Performance Metrics
50 r/min
Blade Speed
5 Mpa
Working Pressure
6.2 kw
Total Power
