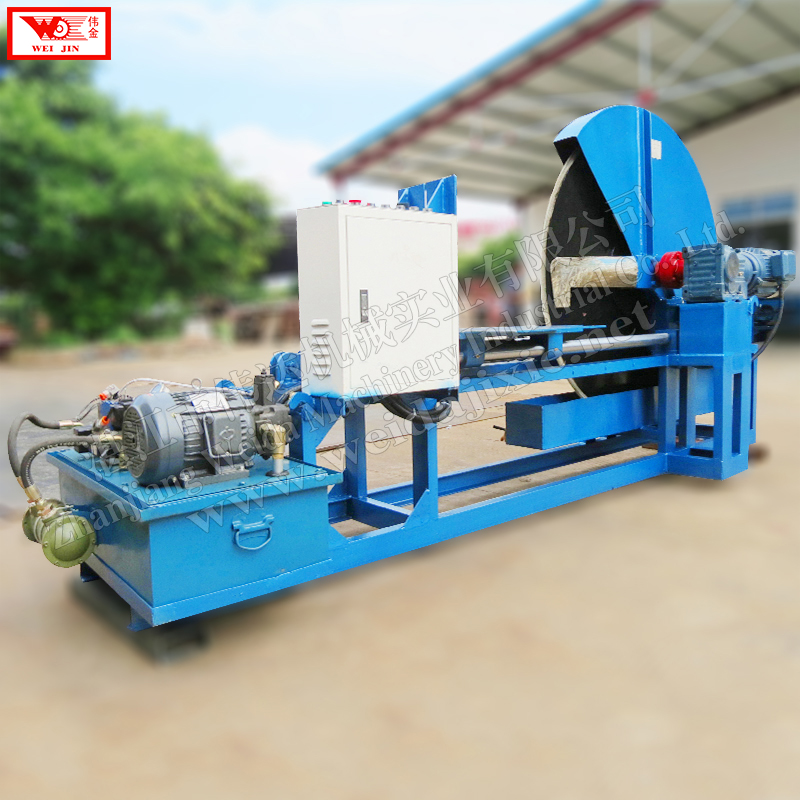

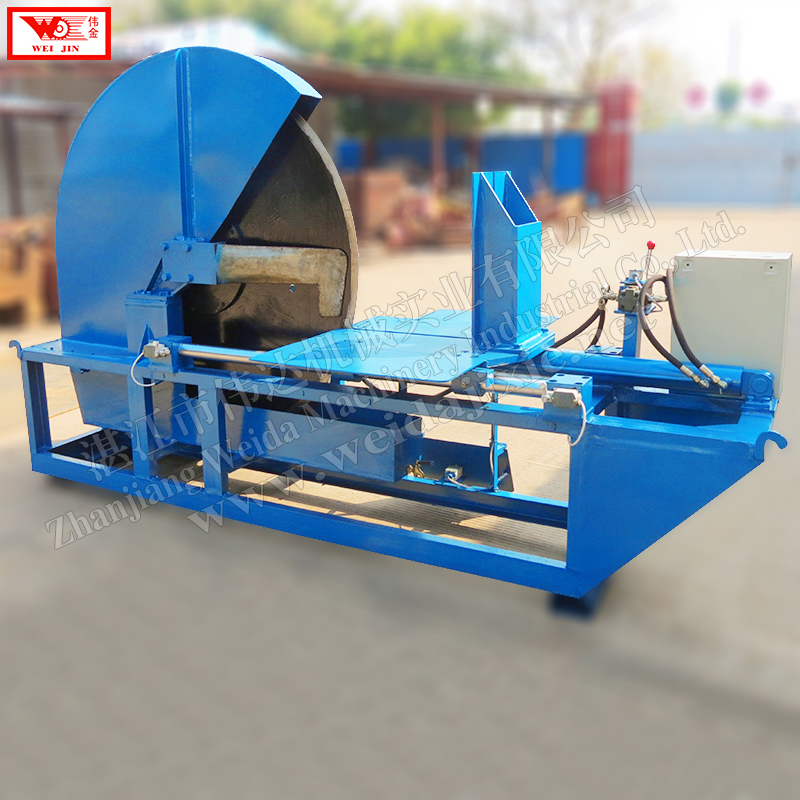

Rubber Block Cutting Machine with Rotary Disc
This rotating-disc type cutting machine is designed for processing various rubber materials. It cuts rubber blocks into smaller, manageable shapes such as slices, granules, and strips.
Technical Specifications
Product Overview
Industrial Rubber Cutting Solution
This rotating-disc cutting machine is designed for the efficient processing of various rubber materials, including natural, compound, reclaimed, and synthetic rubber. It effectively transforms large rubber blocks into manageable slices, granules, bars, or smaller blocks. Engineered for high performance, it offers robust construction suitable for diverse industrial applications.
Technical Specifications
Model Comparison
| Specification | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50 r/min | 50 r/min |
| Power Rating | 4+2.2 kW | 4+2.2 kW |
| Working Pressure | 5 Mpa | 5 Mpa |
| Production Capacity | 2 t/h | 3 t/h |

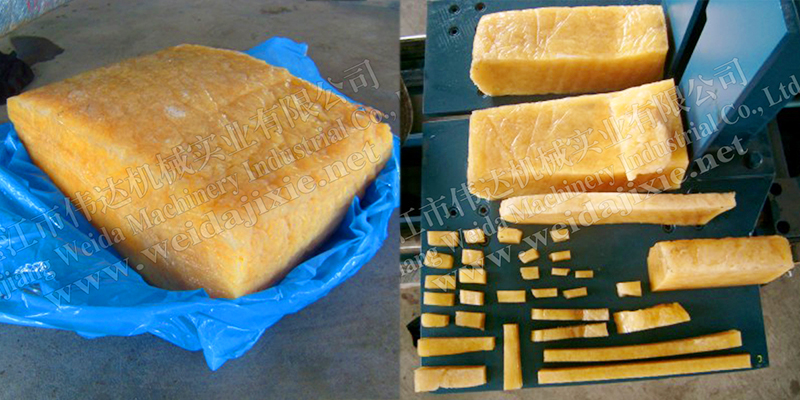

Output Shapes
- Blocks
- Slices
- Granules
- Bars
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
