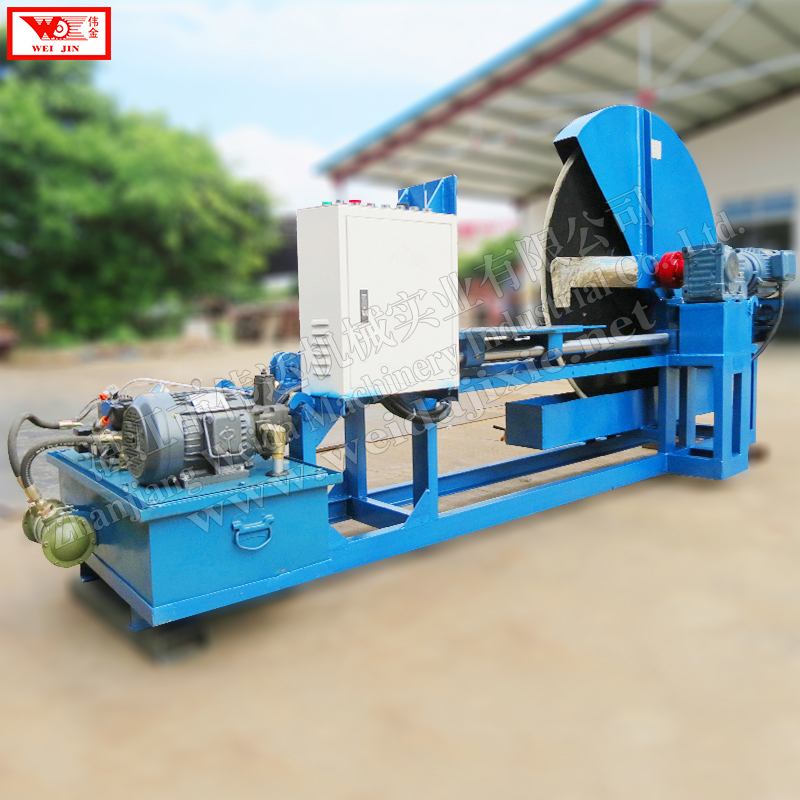

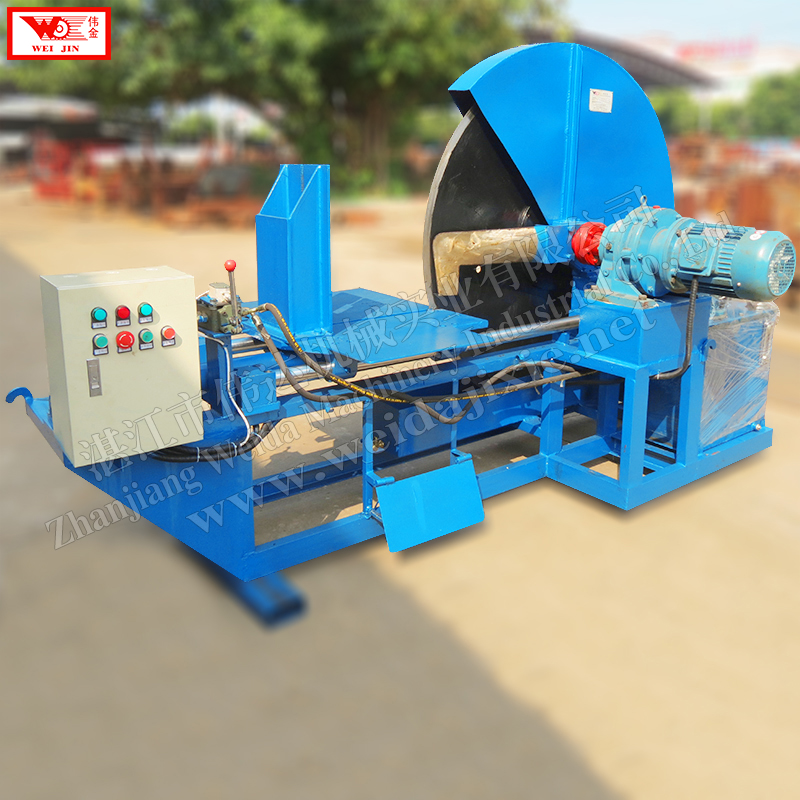

Rubber Block Cutting Machine with Rotary Disc
This rotating-disc cutting machine is designed for processing natural, reclaimed, compound, and synthetic rubber. It cuts rubber blocks into smaller pieces like blocks, slices, granules, and bars, and can also handle other materials.
Technical Specifications
Product Overview
High-Efficiency Rotary Disc Rubber Cutter
This innovative rotary-disc type cutting machine is designed for the precise processing of natural, compound, reclaimed, and synthetic rubber blocks. It versatilely transforms raw rubber into smaller blocks, slices, granules, or bars, making it an essential tool for downstream processing. Engineered with a robust hydraulic system and a rotating blade, it ensures consistent performance and reduced friction for a longer industrial service life.
Technical Performance
Key Performance Metrics
Model Specifications
| Model | Blade Diameter | Power | Production Capacity |
|---|---|---|---|
| WQJ-1000 | 1000mm | 4+2.2kw | 2t/h |
| WQJ-1300 | 1300mm | 4+2.2kw | 3t/h |
Material Compatibility

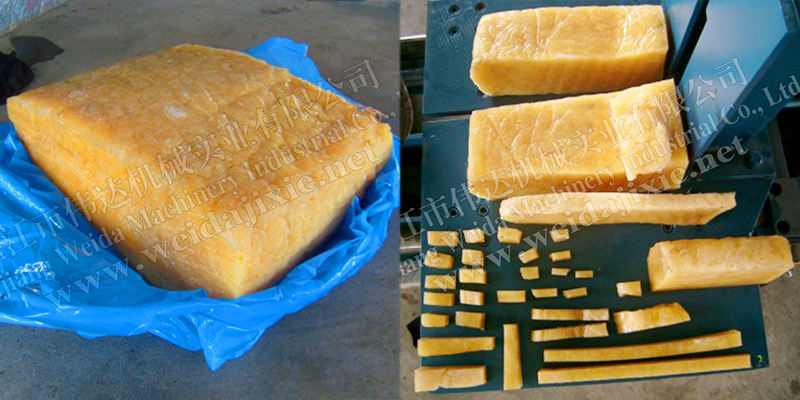

Output Shapes
- Blocks
- Slices
- Granules
- Bars
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic RubberButadiene-Styrene Rubber
Design & Construction

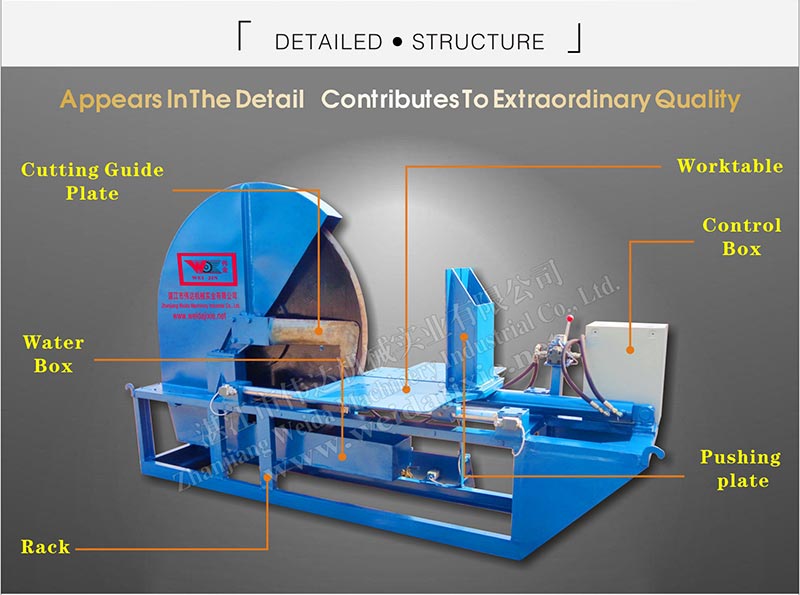

Machine Components
- Cutting Guide Plate
- Hydraulic Worktable
- Water Box for Cooling
- Pushing Plate
- Integrated Control Box
- Heavy-duty Rack

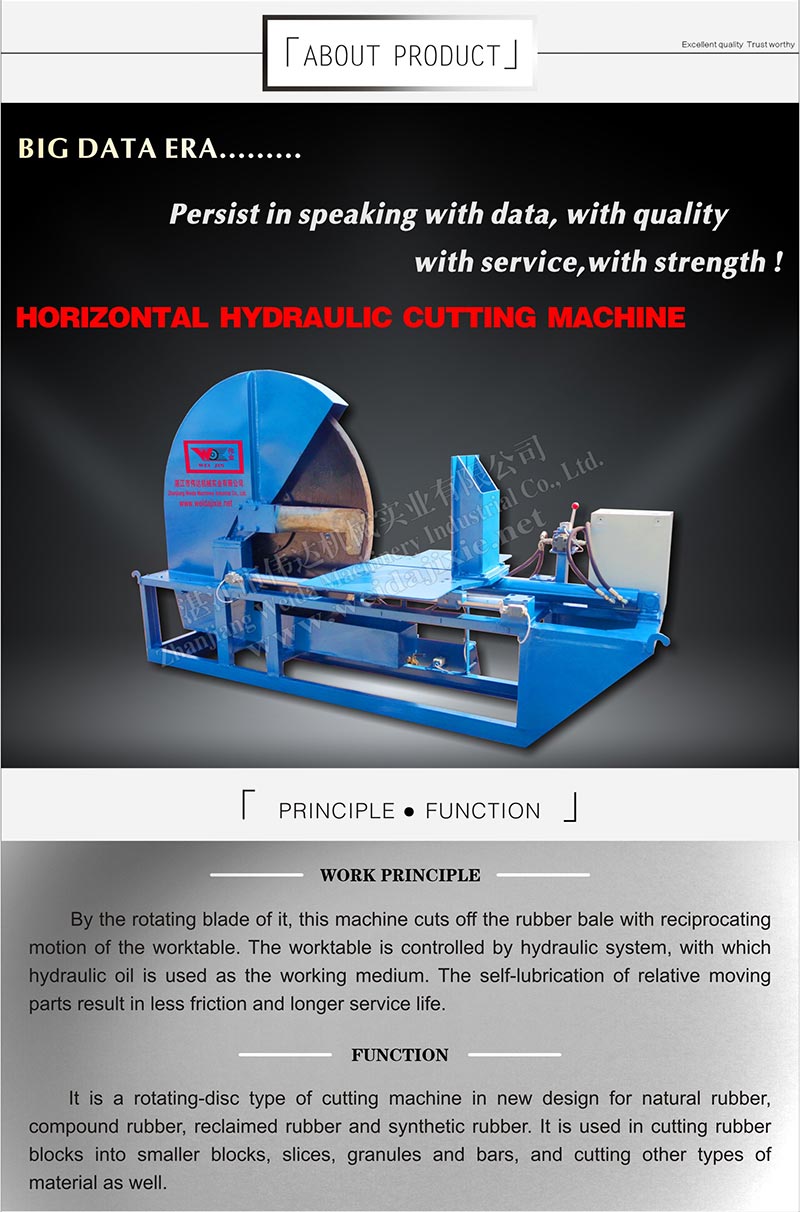

Hydraulic Reciprocating Motion
The machine operates via a rotating blade that cuts rubber bales through the reciprocating motion of a hydraulic worktable. Using hydraulic oil as the medium, the system features self-lubrication of moving parts to minimize friction and extend the machine's operational life.
Service & Installation
Installation & Support
- Delivered as a whole unit
- Ground fixing required per manual
- Plug-and-play electricity connection
- 1-year warranty on structure and equipment
