Rubber Block Cutting Machine

This rotating-disc type cutting machine is designed for processing various types of rubber. It cuts rubber blocks into smaller blocks, slices, granules, and bars.

Request a QuotePDF

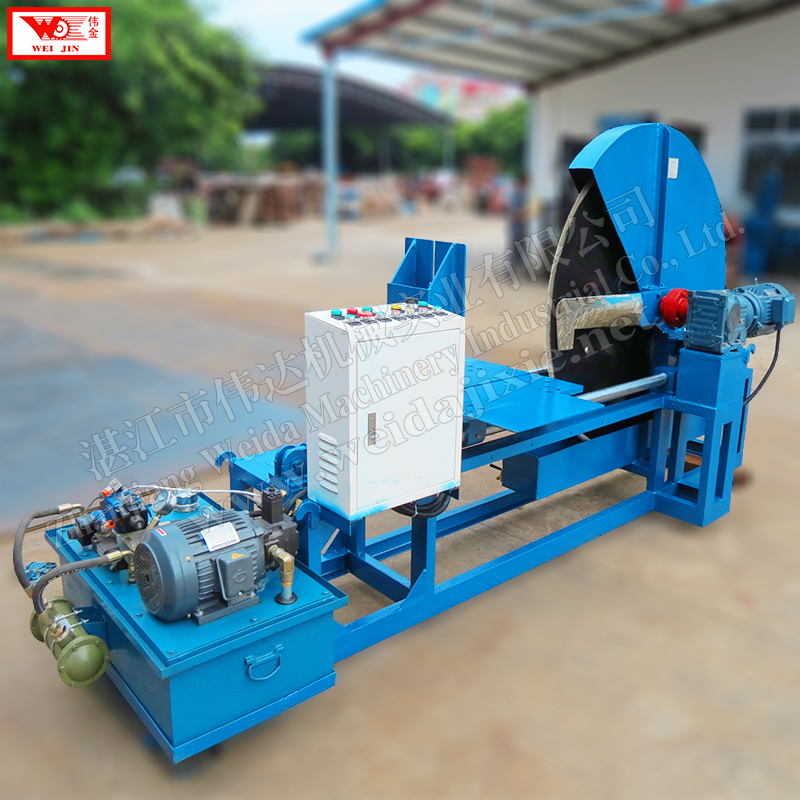

rubber block cutting equipmentZhanjiang Weida manufacturereasy operated & low manual - Image 1

Technical Specifications

Product Overview

Industrial Rubber Block Cutting Solution

This rotating-disc cutting machine is engineered for the high-efficiency processing of natural, synthetic, compound, and reclaimed rubber. Designed to minimize manual labor, the system features a robust hydraulic worktable that delivers precise, uniform cuts. It is capable of transforming large rubber blocks into slices, granules, or bars, making it an essential component for rubber manufacturing facilities seeking consistent output and durability.

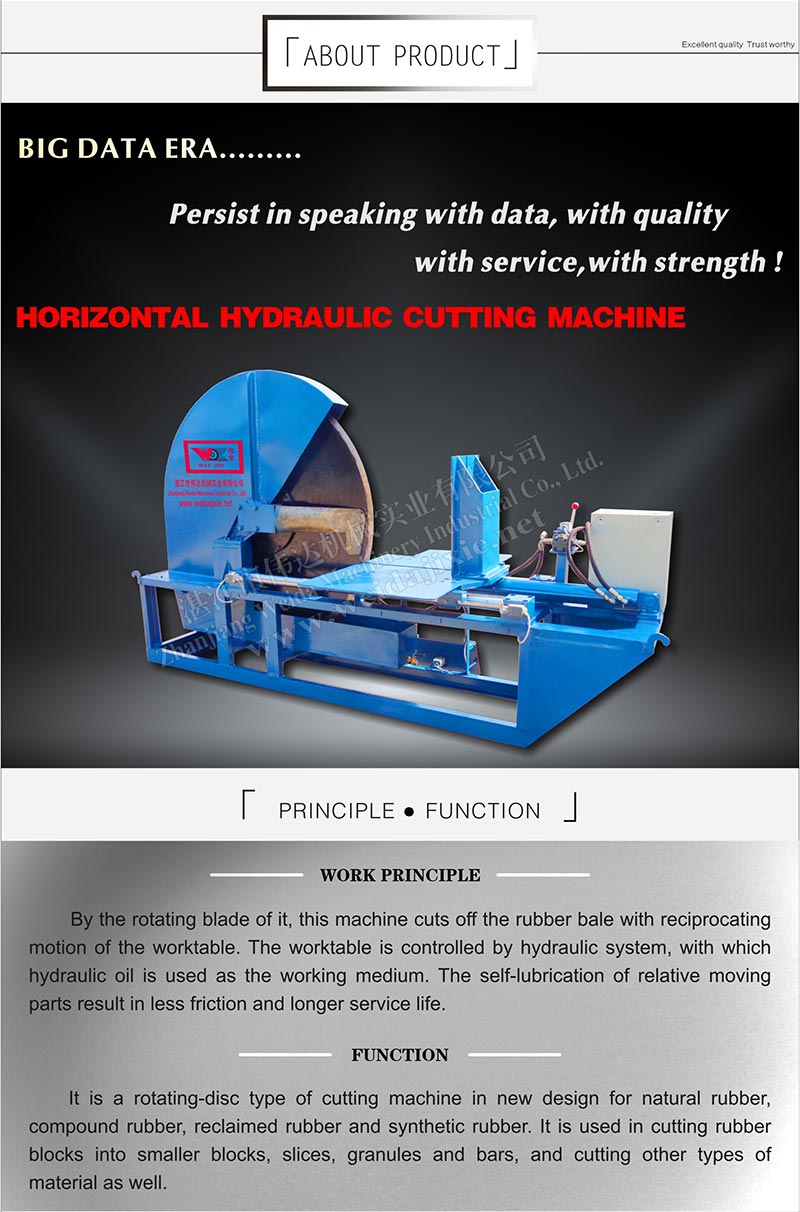

Diagram illustrating the horizontal hydraulic cutting principle

Technical Specifications

Model Comparison

SpecificationWQJ-1000WQJ-1300
Blade Diameter1000mm1300mm
Blade Speed50r/min50r/min
Power Rating4+2.2kw4+2.2kw
Working Pressure5Mpa5Mpa
Production Capacity2t/h3t/h

Key Features

Output Shapes

  • Blocks
  • Slices
  • Granules
  • Bars

Operational Efficiency

50 r/min
Rotational Speed
5 Mpa
System Pressure
Compatible Materials
Natural RubberSynthetic RubberCompound RubberReclaimed Rubber
Detailed structural components of the rubber cutting machine
