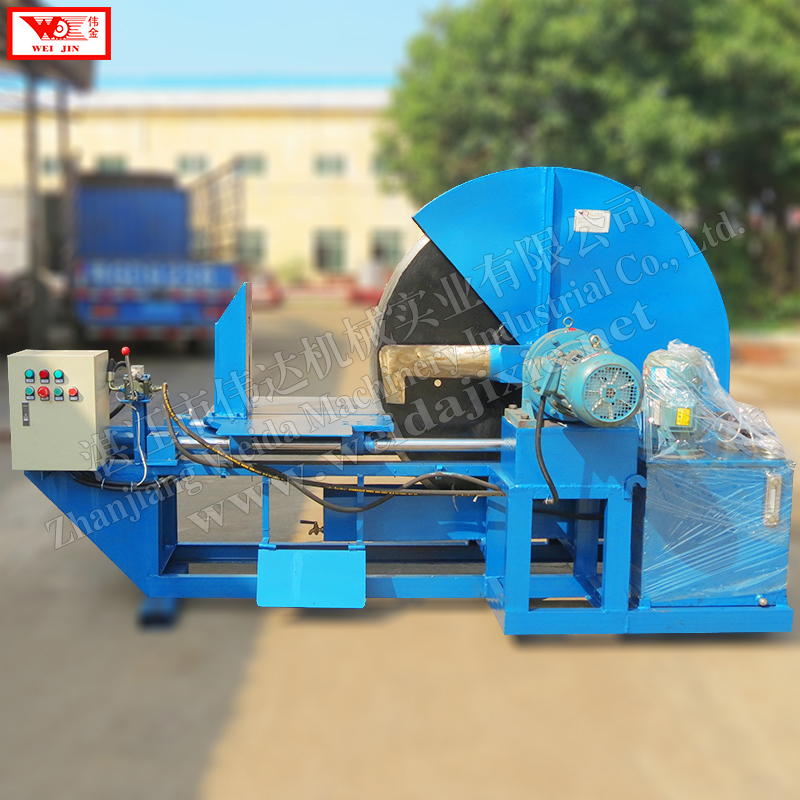

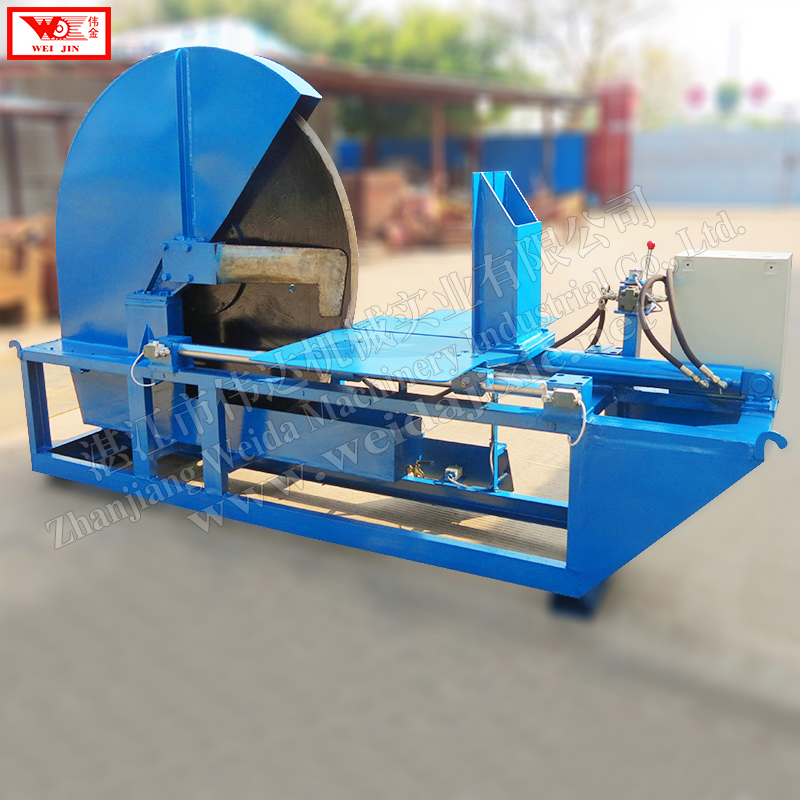

Rubber Block Cutting Machine

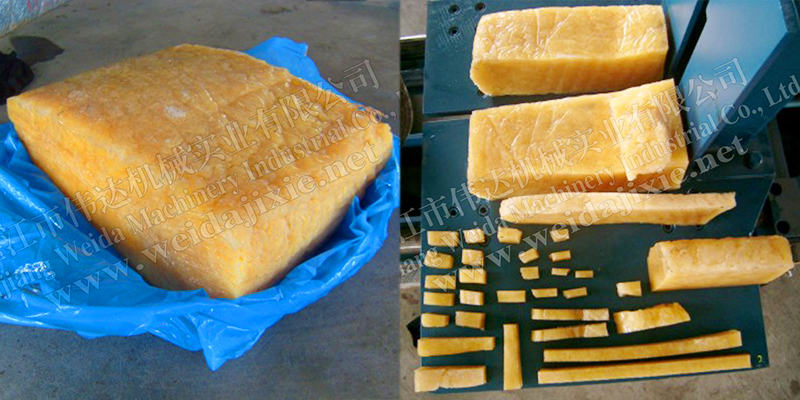

This rotating-disc type cutting machine is designed for cutting natural, compound, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller blocks, slices, granules, and bars, and can also process other materials.
Technical Specifications
Overview
Professional Rubber Cutting Solution
This rotating-disc cutting machine is designed for efficient processing of natural, compound, reclaimed, and synthetic rubber. Its robust design allows for versatile material preparation, enabling users to cut rubber blocks into smaller blocks, slices, granules, or bars. The machine utilizes a high-performance hydraulic system to ensure consistent pressure and precise operation in demanding industrial environments.
- Material Compatibility
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
Technical Specifications
Key Performance Metrics
5 Mpa
Working Pressure
50 r/min
Rotational Speed
Model Comparison
| Specification | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Power | 4+2.2kw | 4+2.2kw |
| Production Capacity | 2t/h | 3t/h |
Features
Key Features
- Rotating-disc cutting mechanism for versatile output shapes
- Hydraulic control system for reliable operation
- Self-lubricating moving parts to reduce friction and extend service life
- Robust rack and stable structure for heavy-duty industrial use
- Integrated cooling and lubrication water box
