Technical Specifications
Overview
Professional Rubber Bale Cutting Solution

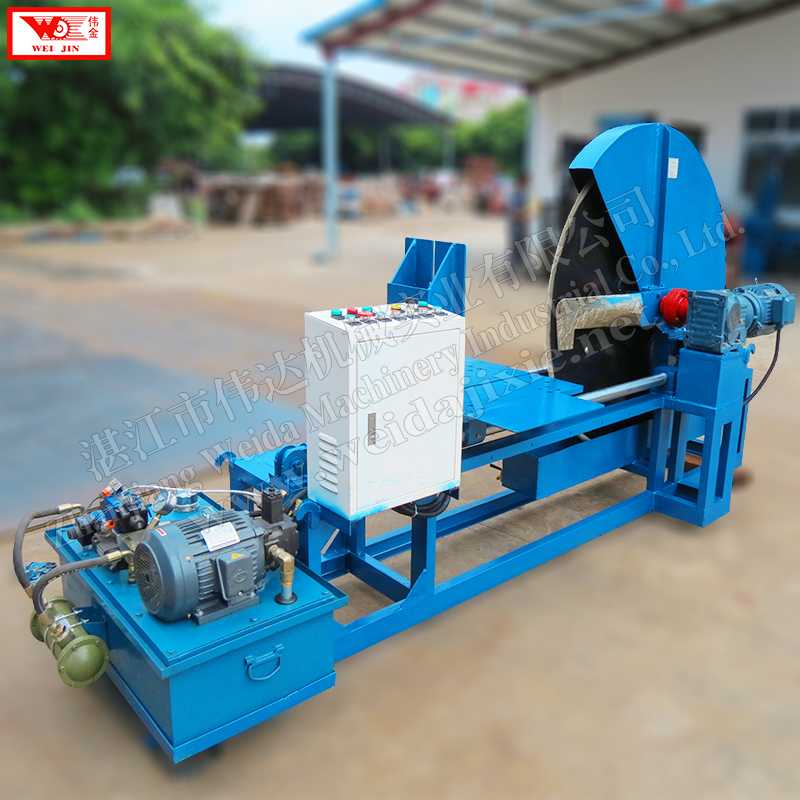

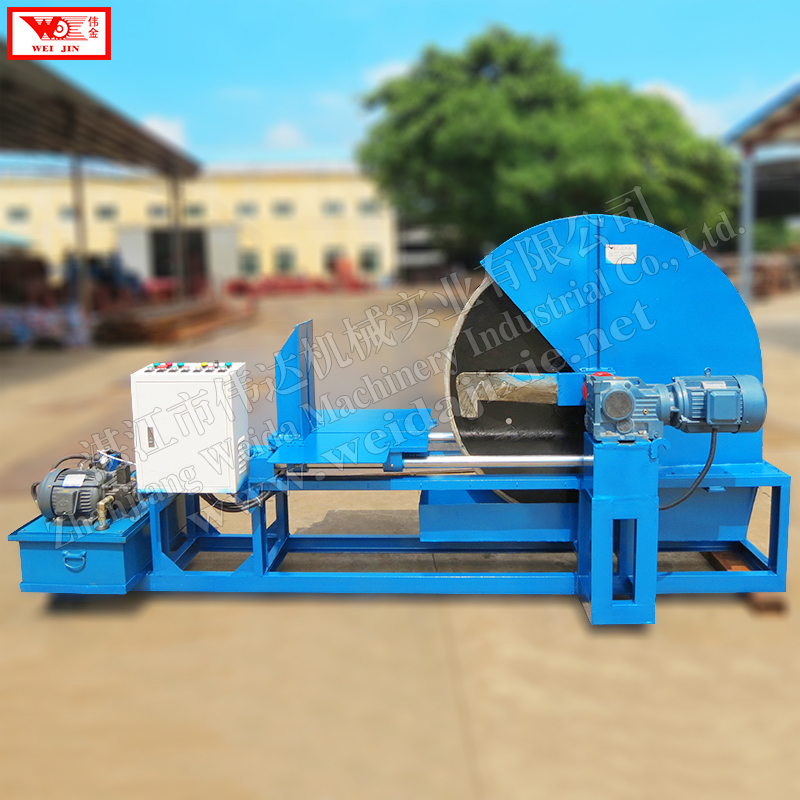

This rotating-disc type cutting machine is engineered for the efficient processing of natural, compound, reclaimed, and synthetic rubber. Designed for industrial-grade performance, it enables the precise reduction of rubber bales into smaller, manageable blocks, slices, granules, or bars. The machine features a robust hydraulic system and self-lubricating components to ensure consistent output, reduced friction, and an extended service life.
Technical Specifications
Performance Metrics
50 r/min
Blade Rotational Speed
5 Mpa
Working Pressure
Model Comparison Table
| Specification | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Production Capacity | 2t/h | 3t/h |
| Power | 4+2.2kw | 4+2.2kw |
Applications

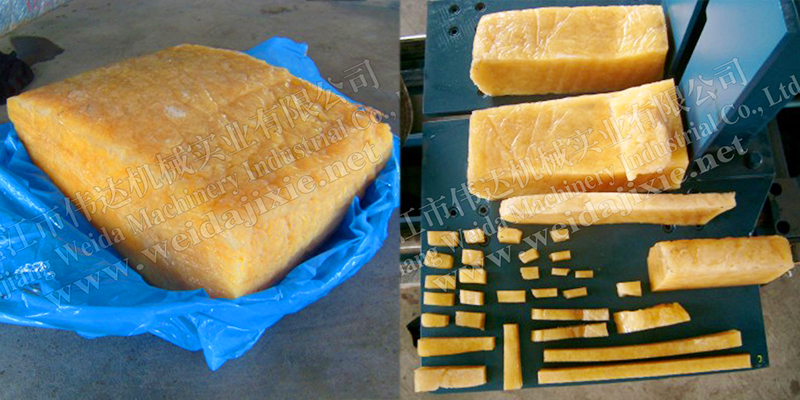

Output Forms
- Blocks
- Slices
- Granules
- Bars
- Suitable Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic RubberPlastic Films

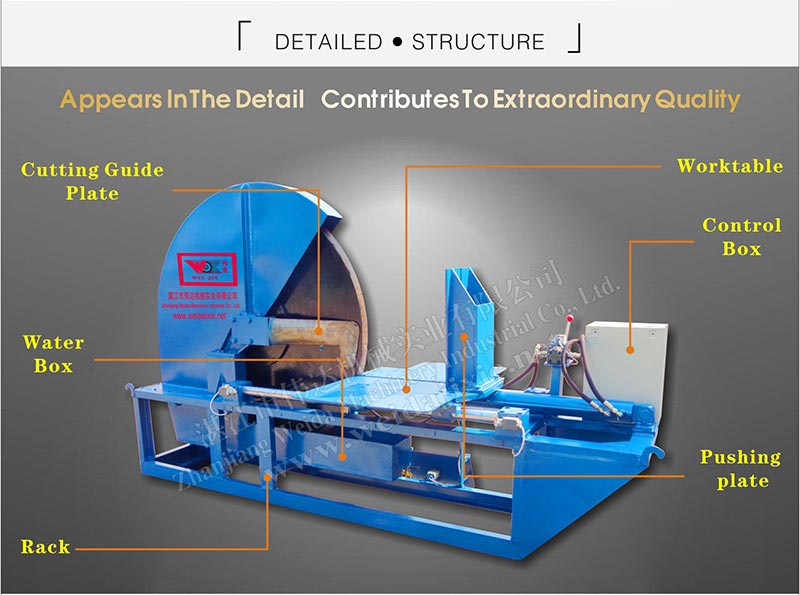

Features
Key Features
Rotating-disc cuttingHydraulic control systemSelf-lubricating partsEasy operationLow manual input
