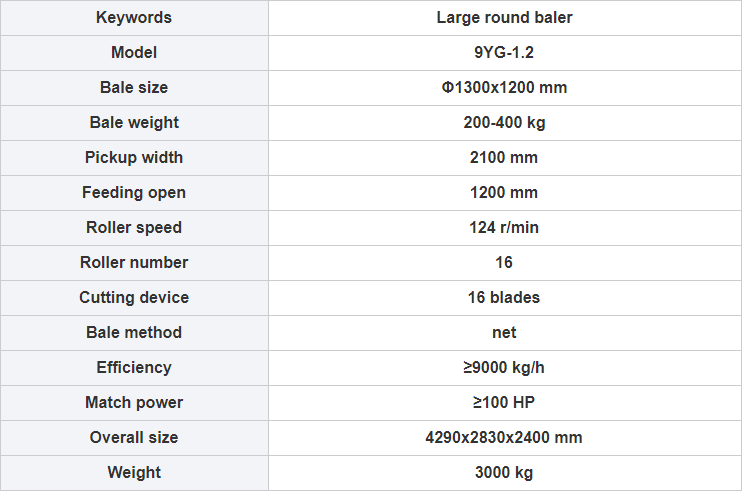

Technical Specifications
Product Overview

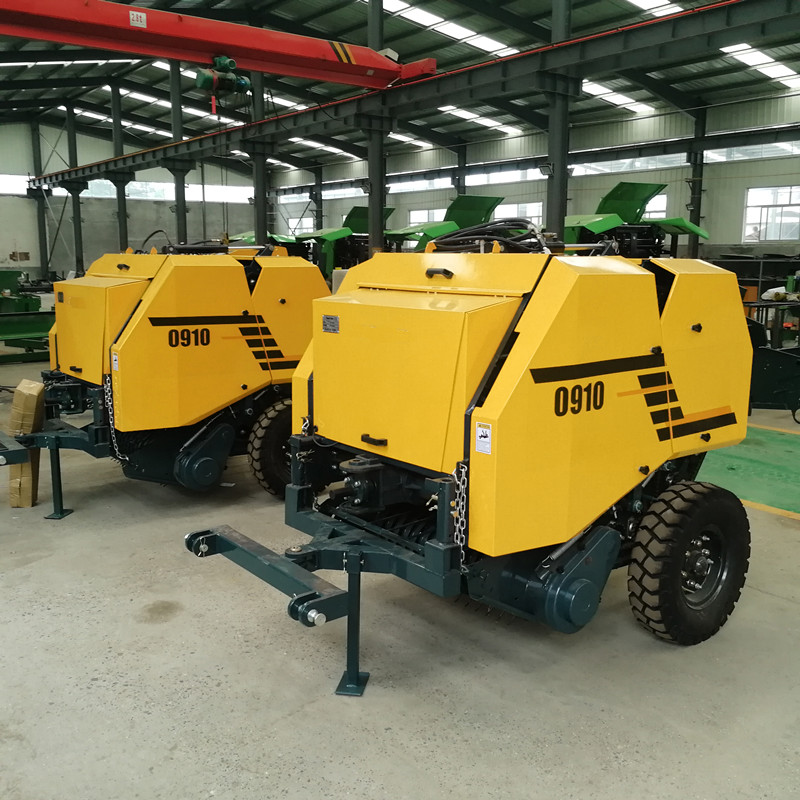

High-Efficiency Large Round Baler
The 9YG-1.2 is a robust agricultural machine designed for high-capacity harvesting, capable of producing dense cylindrical bales weighing up to 400 kg. Featuring a wide 2100 mm pickup and a 16-blade cutting system, it ensures efficient material processing and consistent bale formation. This baler is optimized for professional farming operations requiring reliable performance and high output speeds exceeding 9000 kg/h.
Performance Metrics
Key Performance Metrics
9,000 kg/h
Operating Efficiency
2,100 mm
Pickup Width
100 HP
Minimum Power
Bale Specifications
Wrapping Method
Net Wrapping
- Bale Dimensions
- Φ1300 x 1200 mm
- Bale Weight Range
- 200 - 400 kg
Technical Configuration
Roller Configuration
- 16 High-strength rollers
- 124 r/min Roller speed
- Cutting Device
- 16 blades for effective material processing
- Feeding Opening
- 1200 mm
Physical Dimensions
- Overall Size (LxWxH)
- 4290 x 2830 x 2400 mm
- Total Machine Weight
- 3000 kg
Application
- Suitable Materials
- HayStrawCrop Residue
