Round Baler for Hay and Straw
This round baler is designed for efficient hay and straw baling. It creates round bales of consistent density and size, optimizing storage and transport.
Technical Specifications
Product Overview
Efficient Agricultural Baling

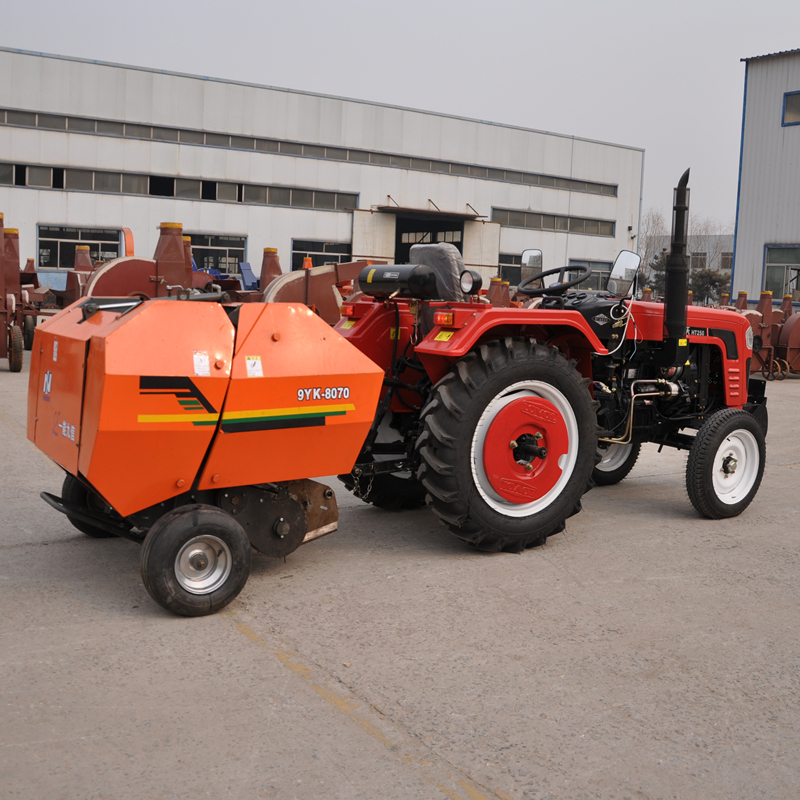

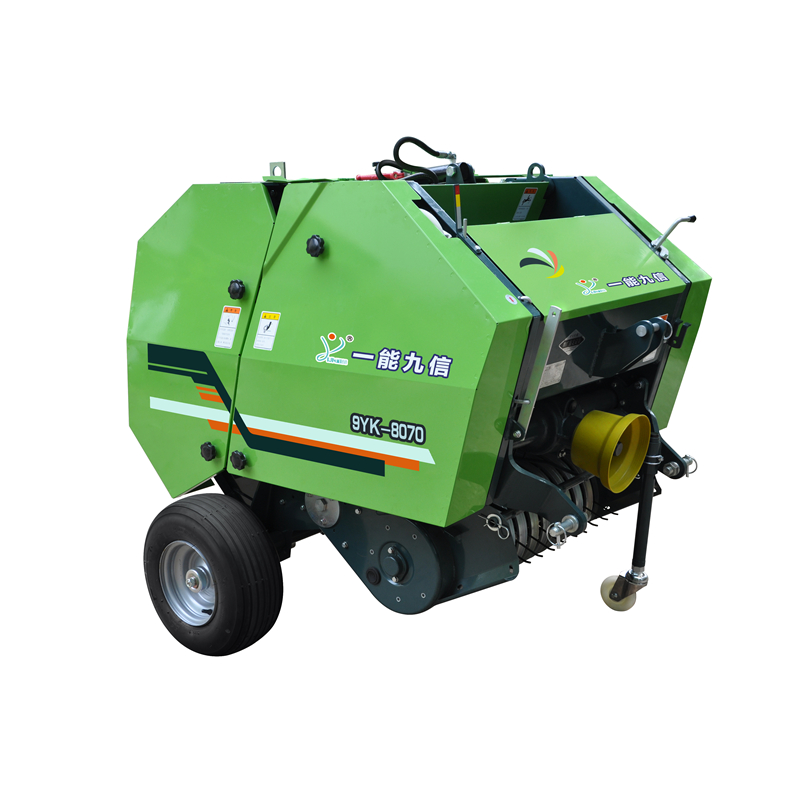

The 9YK-8070 Round Baler is a highly efficient agricultural machine designed for the seamless baling of hay and straw. Engineered for stability and reliability, it features an axially symmetrical gearing layout that ensures a low center of gravity during operation. With its durable metal cylinder construction and smooth tine-type pickup system, this baler minimizes forage loss while delivering consistent, high-quality bales.
Performance Metrics
Operational Performance
25 HP
Min Power Required
50 HP
Max Power Required
5 km/h
Max Operating Speed
Technical Specifications
- Bale Size (Diameter x Width)
- 60 x 70 cm
- Pick-up Width
- 80 cm
- Machine Weight
- 460 kg
- Matched PTO Speed
- 540 rpm
- Overall Dimensions (L x W x H)
- 130 x 140 x 120 cm
Features
- Key Features
- Tine-type pickupLow center of gravityMetal forming cylinderWorm gear reducerFour-bar linkage operation
