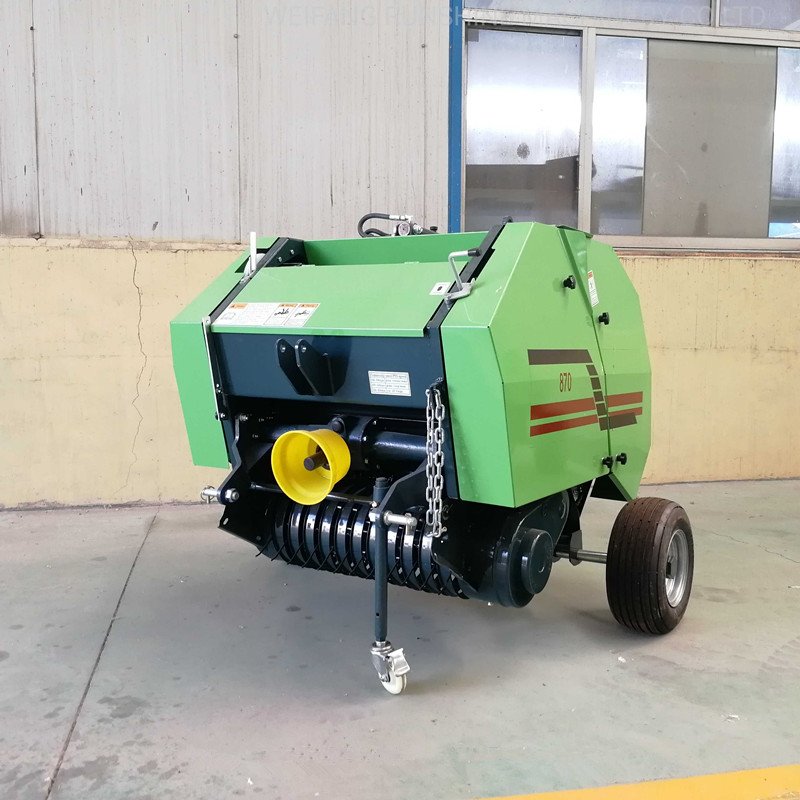

Round Baler
This round baler is a compact and efficient agricultural machine designed for harvesting and baling various crops into small, manageable round bales. It is designed for use with smaller tractors, making it ideal for small to medium-sized farms.

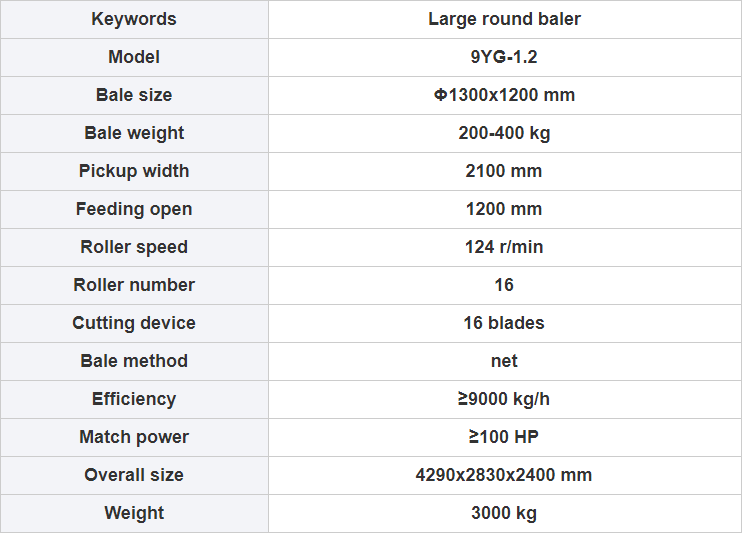

Technical Specifications
Product Overview
High-Efficiency Round Baler
The 9YG-1.2 model is a robust and efficient agricultural machine designed for professional hay and forage harvesting. It features a high-capacity pickup system and an advanced 16-blade cutting device to ensure consistent bale density. Engineered for medium to large-scale operations, this baler delivers reliable performance with a high output efficiency.
- Model Number
- 9YG-1.2
Performance Metrics
Key Performance Metrics
9,000 kg/h
Efficiency
100 HP
Match Power
124 r/min
Roller Speed
Bale Specifications
Bale Properties
| Property | Value |
|---|---|
| Bale Dimensions | Φ1300 x 1200 mm |
| Bale Weight | 200-400 kg |
| Baling Method | Net |
Technical Configuration
Technical Configuration
- Pickup width: 2100 mm
- Feeding opening: 1200 mm
- Roller count: 16
- Integrated cutting device with 16 blades
Physical Dimensions
Dimensions and Weight
- Overall size: 4290 x 2830 x 2400 mm
- Total weight: 3000 kg
